5.3.6 Meter Tool
The Meter Tool displays data from analog input channels in the MAQ
®
20 data acquisition system.
To change the Meter Tool properties, double click on the device to open the Properties window. Only the
Appearance, Behavior, Layout and Scale categories contain parameters that are useful to modify when
interfacing to the MAQ
®
20.

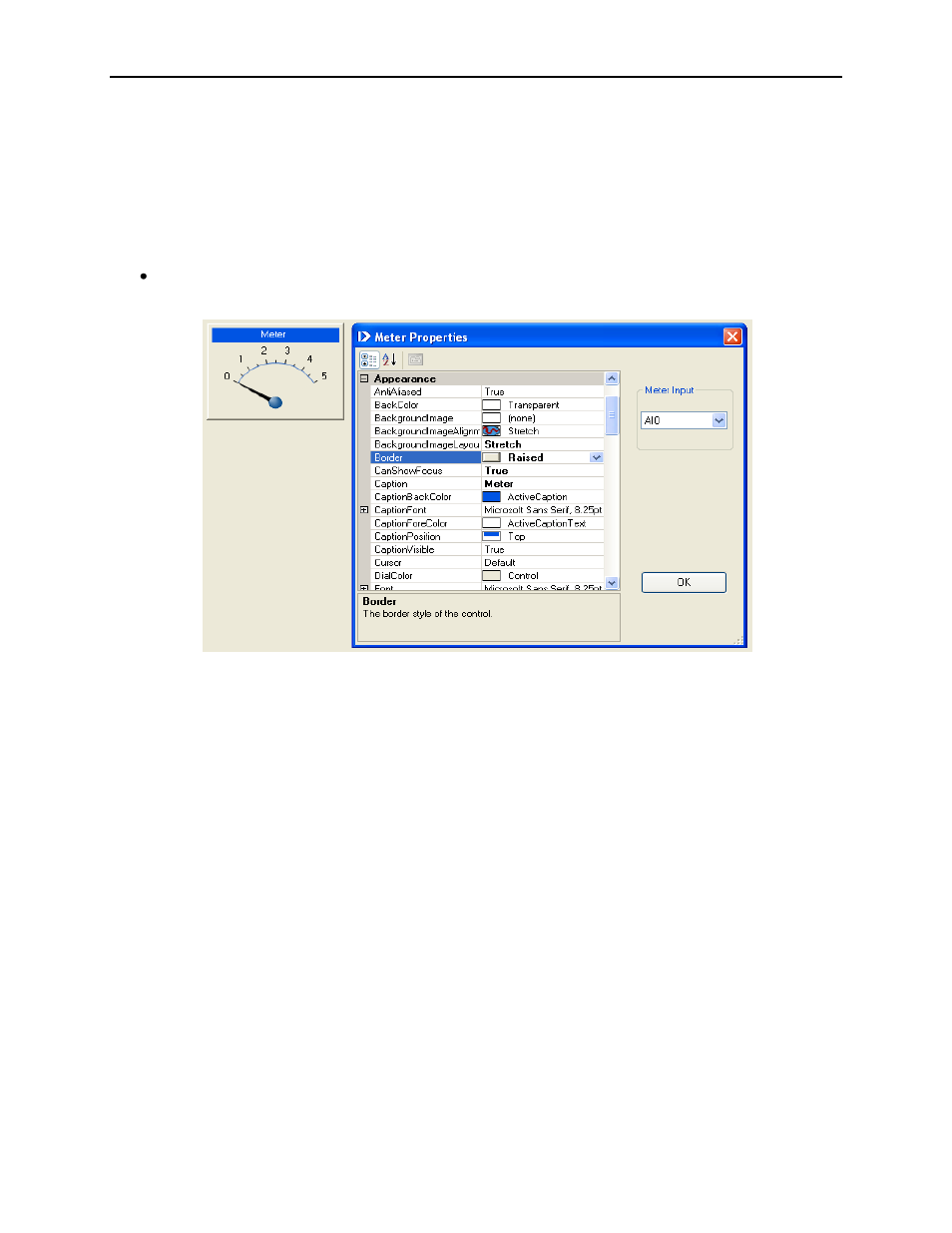

Assign the analog input channel to display in the Meter Tool by using the Meter Input pull down
selection box.
