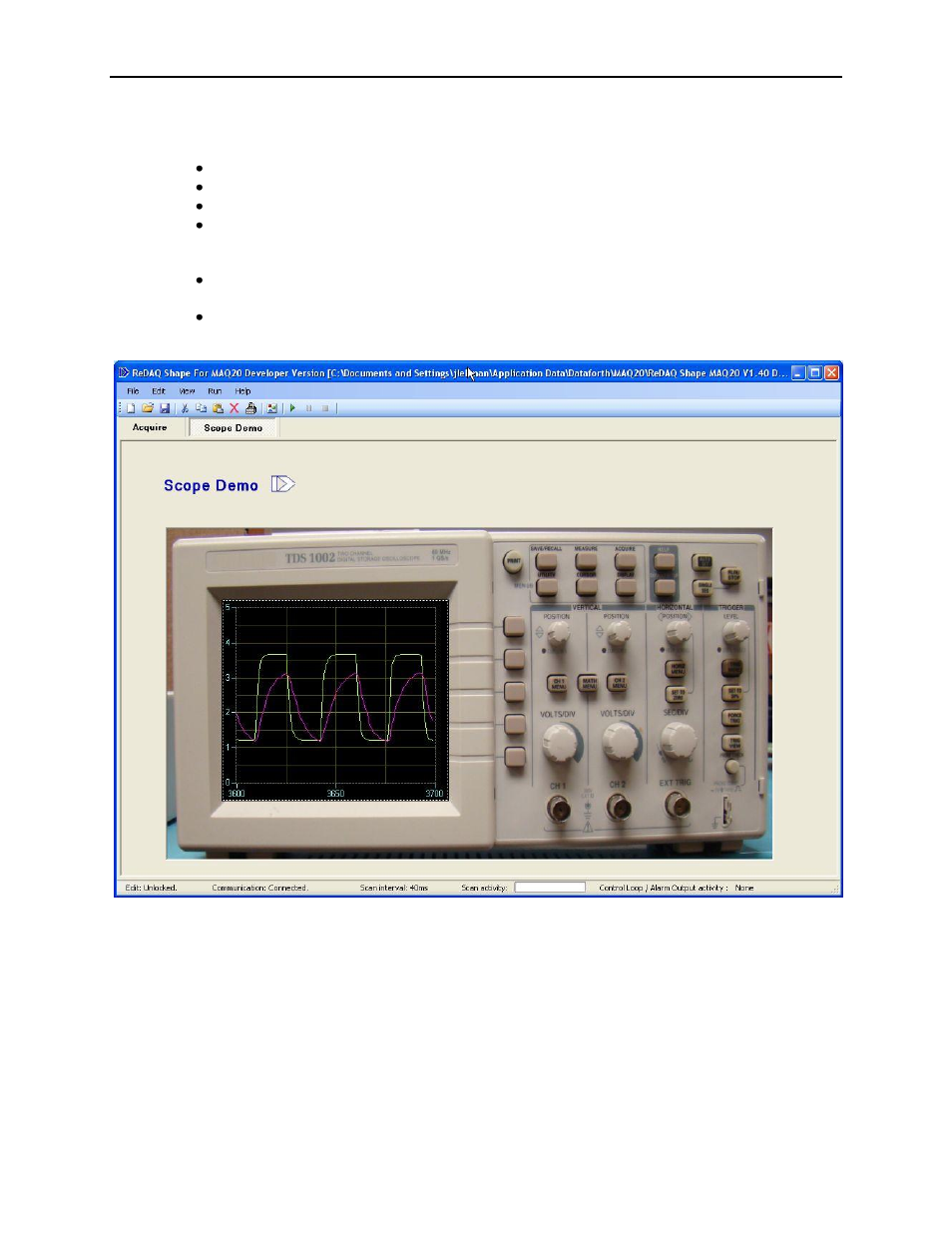

6.2.4 Demonstration Project #4: Scope Tool Driven by Output Channels
Filename Demo_Scope.rsd or Demo_Scope.rsu
A Scope Tool is configured for horizontal scale 0-100 samples and vertical scale 0-5V.
Analog input channels 0 and 1 are assigned to the Tool.
Connect a MAQ20-VO module Channel 0 output to a MAQ20-VDN module Channel 0
input and also connect the MAQ20-VO module Channel 1 output to the MAQ20-VDN
module Channel 1 input.
Configure the analog output module to output pre-programmed sine waveform data from
channel 0 and cosine waveform data from channel 1.
The Scope Tool will display the sine and cosine waveforms.
