4.3 View Analog Input Channels

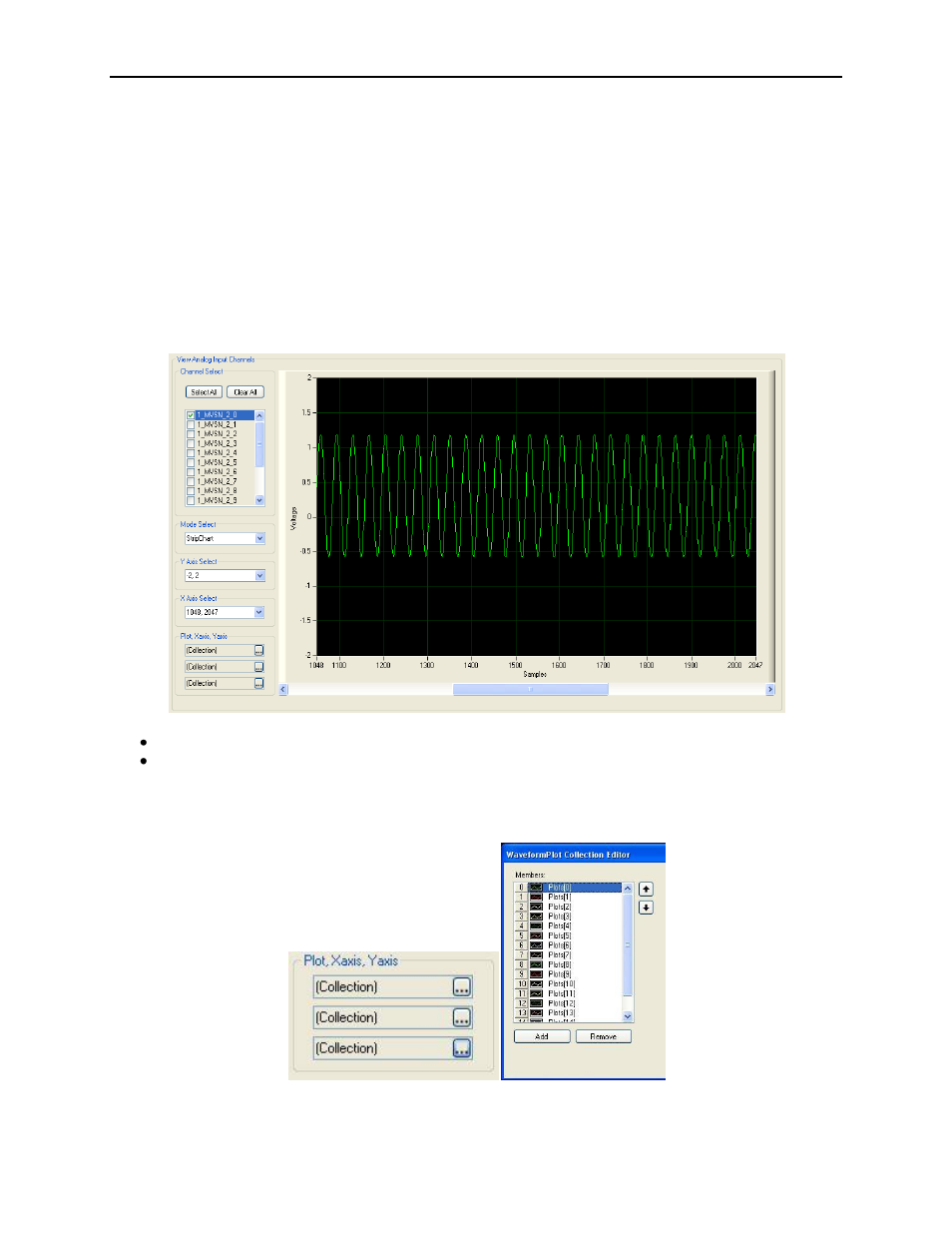

The View Analog Input Channels tab provides graphical views of acquired data. Seven different modes
are available for optimal data display:
Fixed
AutoScaleLoose
AutoScaleExact
ScopeChart
StripChart
AutoScaleVisibleLoose
AutoScaleVisibleExact
Analog input channels displayed on the graph are enabled using the Channel Select checkboxes.
X and Y axis limits can be set using the pull down boxes.
Detail properties of of the Plot, X axis, and Y axis, can be changed by selecting the top (Collection
) …
button
for Plot, middle (Collection) … button for X axis and bottom (Collection) … button for Y axis
