System Board Drive Connections

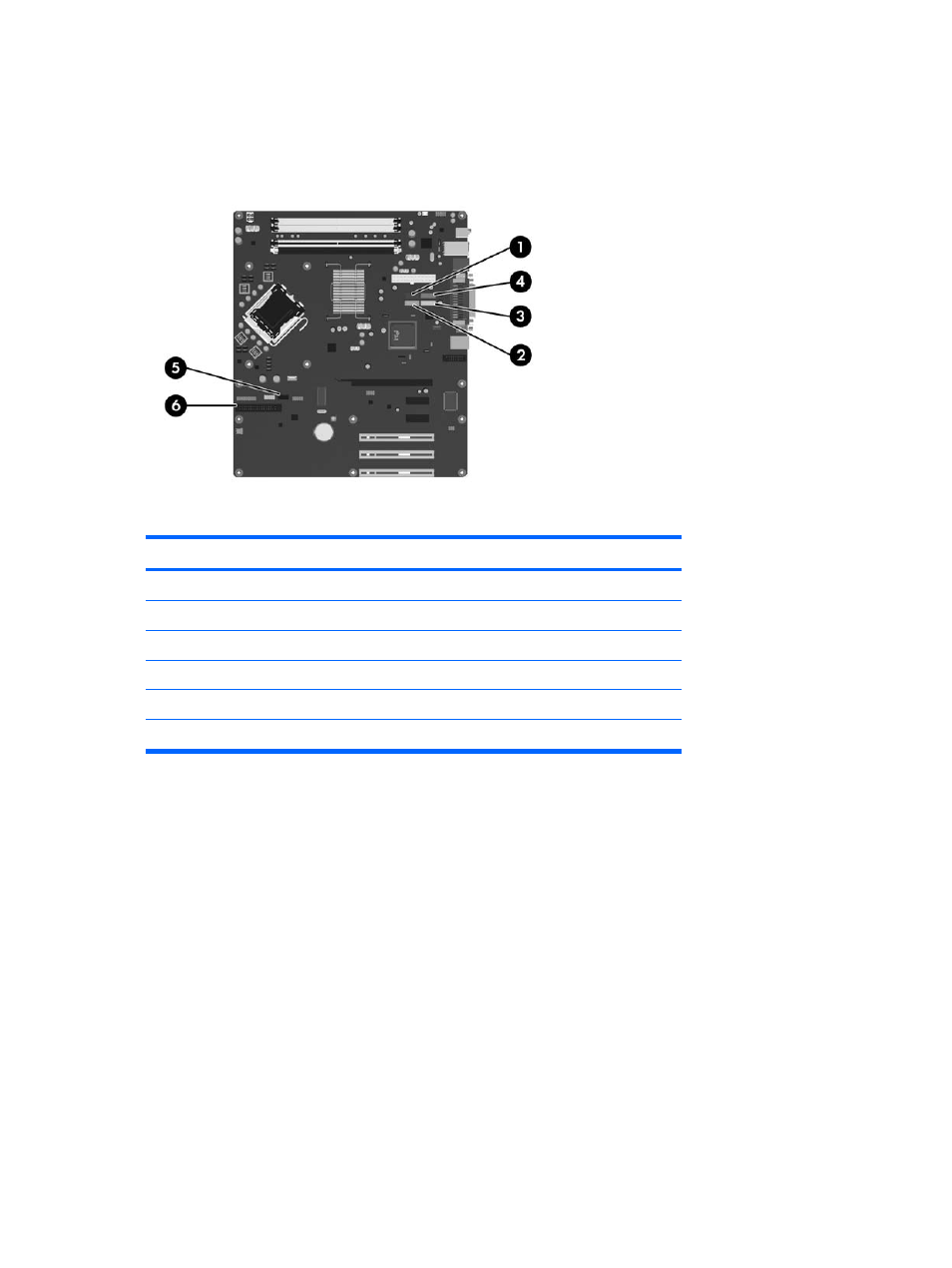

Refer to the following illustration and table to identify the system board drive connectors.
No.
System Board Connector
System Board Label
Color
1
SATA0
SATA0
dark blue
2
SATA1
SATA1
white
3
SATA4
SATA4
light blue
4
SATA5
SATA5
orange
5
Media Card Reader
MEDIA CARD
black
6
Diskette Drive
FLOPPY
black
78
Chapter 7 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
