Front bezel – HP DC7800 User Manual
Page 176
Front Bezel
1.
Prepare the computer for disassembly (
Preparation for Disassembly on page 159
2.
Remove the computer access panel (
Computer Access Panel on page 163
).
3.

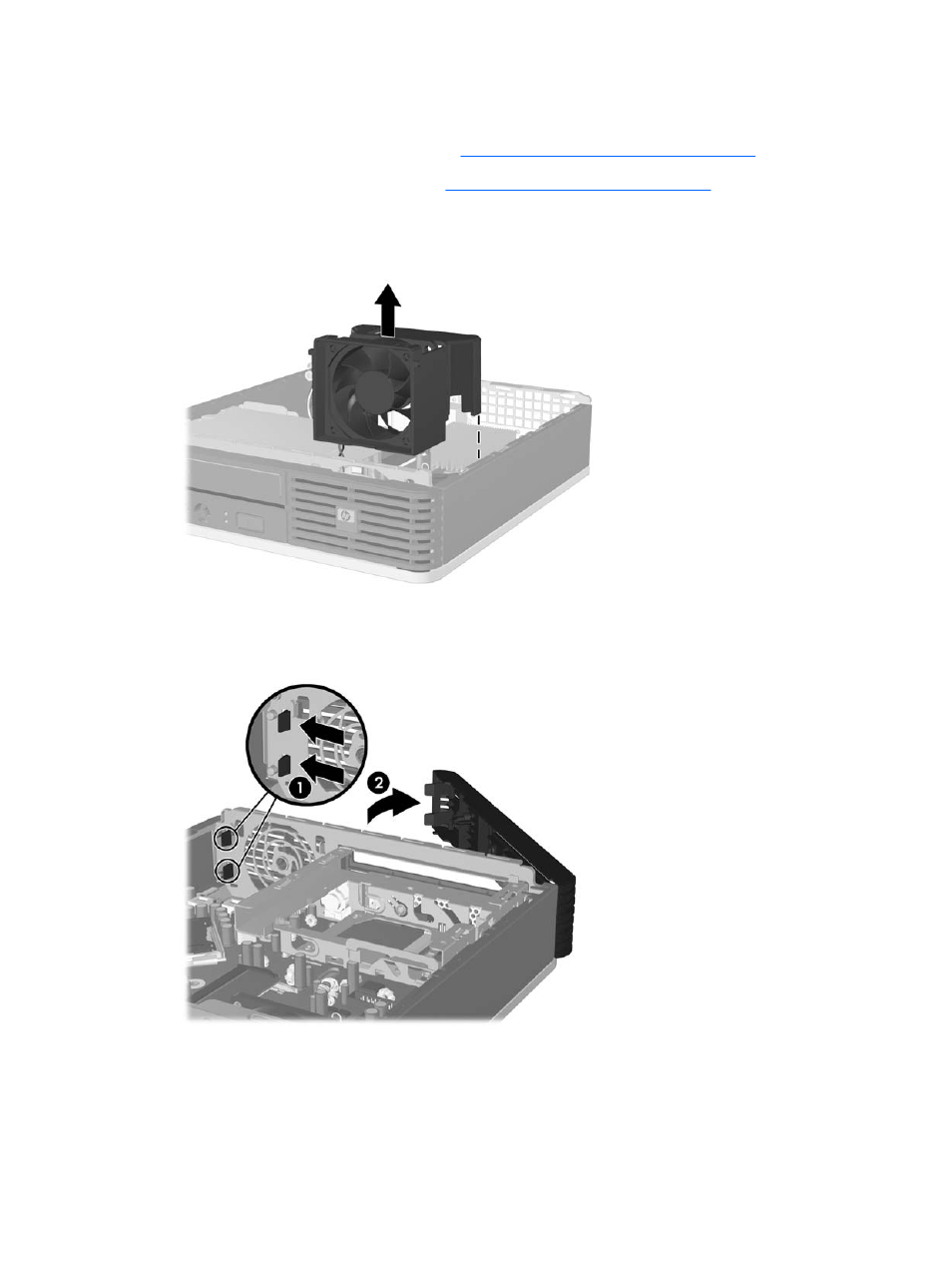

Lift the fan up and place it on top of the optical drive to access the front bezel release tabs. You
do not need to disconnect the fan cable from the system board.
4.
Press the two release tabs on the inside of the bezel towards the right side of the computer (1),
and then rotate the bezel off from right to left (2).
To replace the bezel, reverse the removal procedures.
164 Chapter 9 Removal and Replacement Procedures Ultra-Slim Desktop (USDT) Chassis
