HP DC7800 User Manual
Page 100
6.

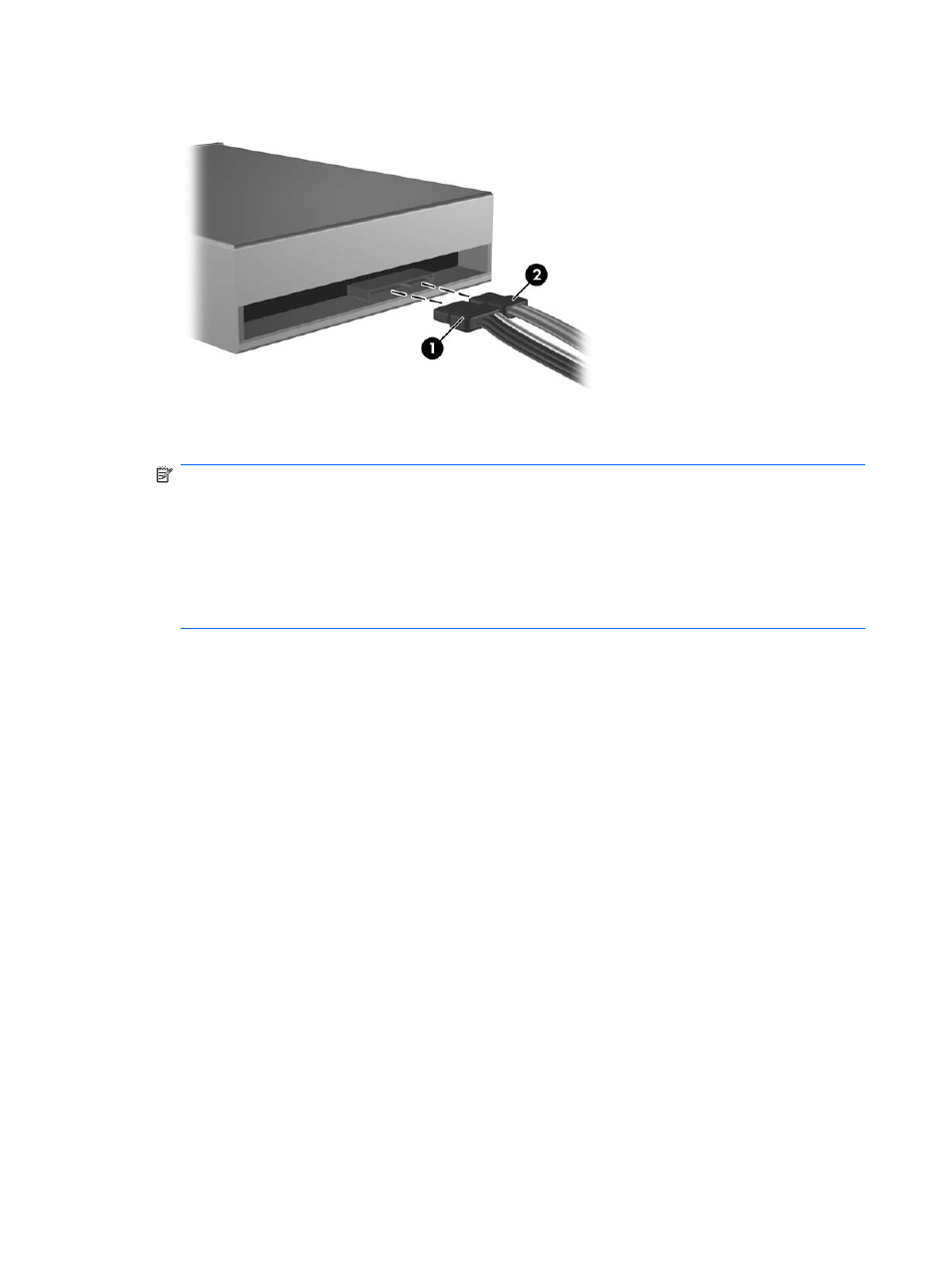

Connect the power cable (1) and data cable (2) to the rear of the optical drive or diskette drive.
7.
If you are installing a new drive, connect the opposite end of the data cable to the appropriate
system board connector.
NOTE:
If you are installing a SATA optical drive, connect the first optical drive to the white SATA
connector on the system board labeled SATA1. Connect a second optical drive to the orange SATA
connector labeled SATA5.
If you are installing a diskette drive, connect it to the connector on the system board labeled
FLOPPY.
If your are installing a media card reader, connect it to the USB system board connector labeled
MEDIA CARD.
88
Chapter 7 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
