Chapter 3: Installation
Connect to Ethernet LAN (with System Controller Card)
You can use these instructions for general connection purposes only. Your Ethernet hub/switch manufacturers
documentation should provide specific instructions for connection to another device, such as the Tenor CMS.
NOTE: For illustration purposes, the unit is shown with a CMS (14 slot) with AC power.

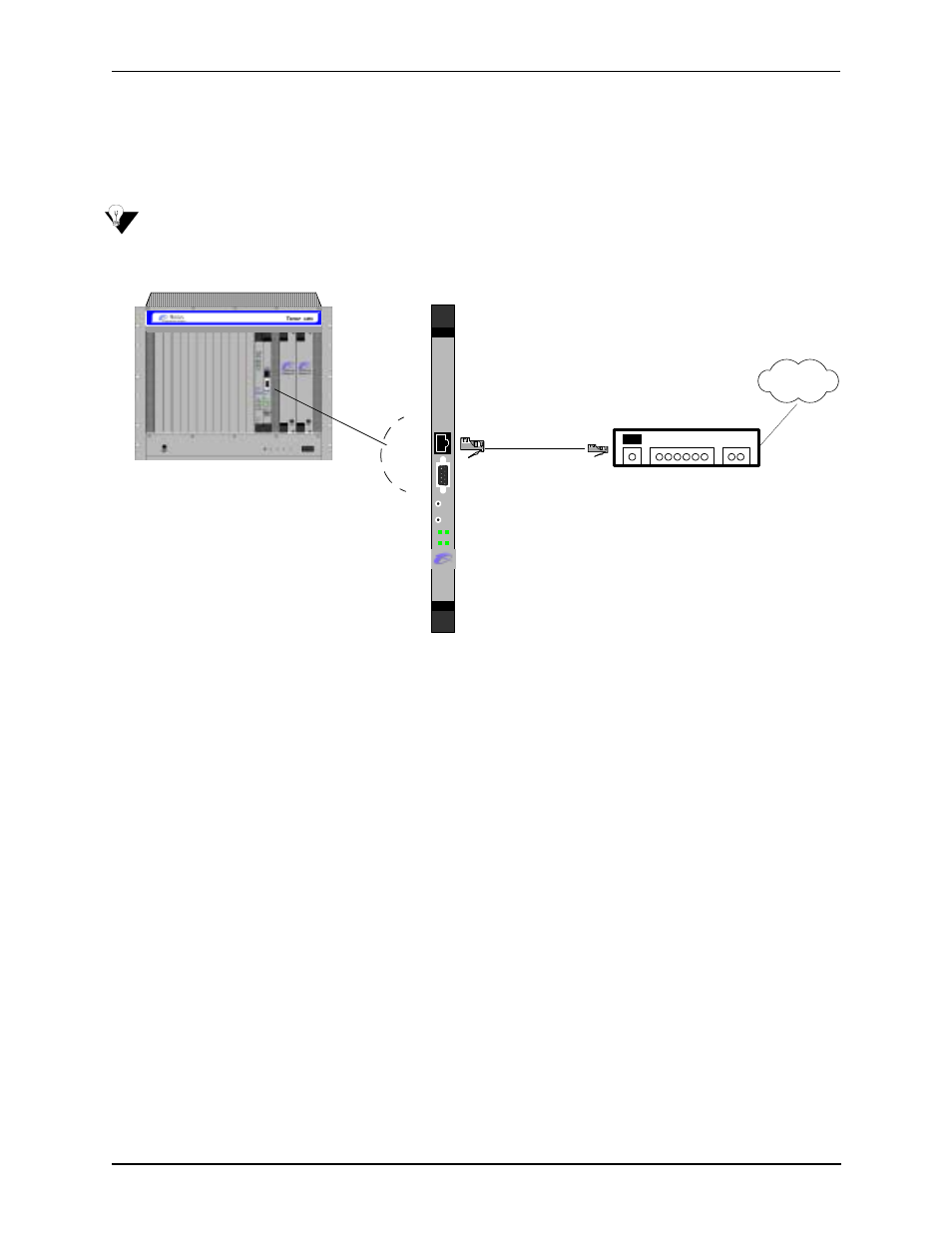

Figure 3-4 Connect to Ethernet Hub/Switch
1. Plug one end of the grey RJ-45 ethernet cable into the front of the System Controller card’s port labeled
10/100 Ethernet.
2. Plug the other end of the cable into your Ethernet hub/switch. If a custom cable or adapter is required, see
Chapter 2: Hardware Components for the Ethernet RJ-45 10/100 pinout information.
Data
Network
Ethernet Hub/Switch
RJ-45
Chassis Front
Console
ABT
BFL CPU
CPCI PCI .2 9 5
.531
TM
RST
10/100
Ethernet
