P/N 480-0005-00-15 2-21
Chapter 2: Hardware Components
Table 2-4 Input/Output 10/100 Ethernet port
Console port. This RS-232 connector is used for connection to a PC’s serial port via DB-9 serial cable at
38400 BPS 8N1, without flow control. The input/output signals are listed in Table 2-5.

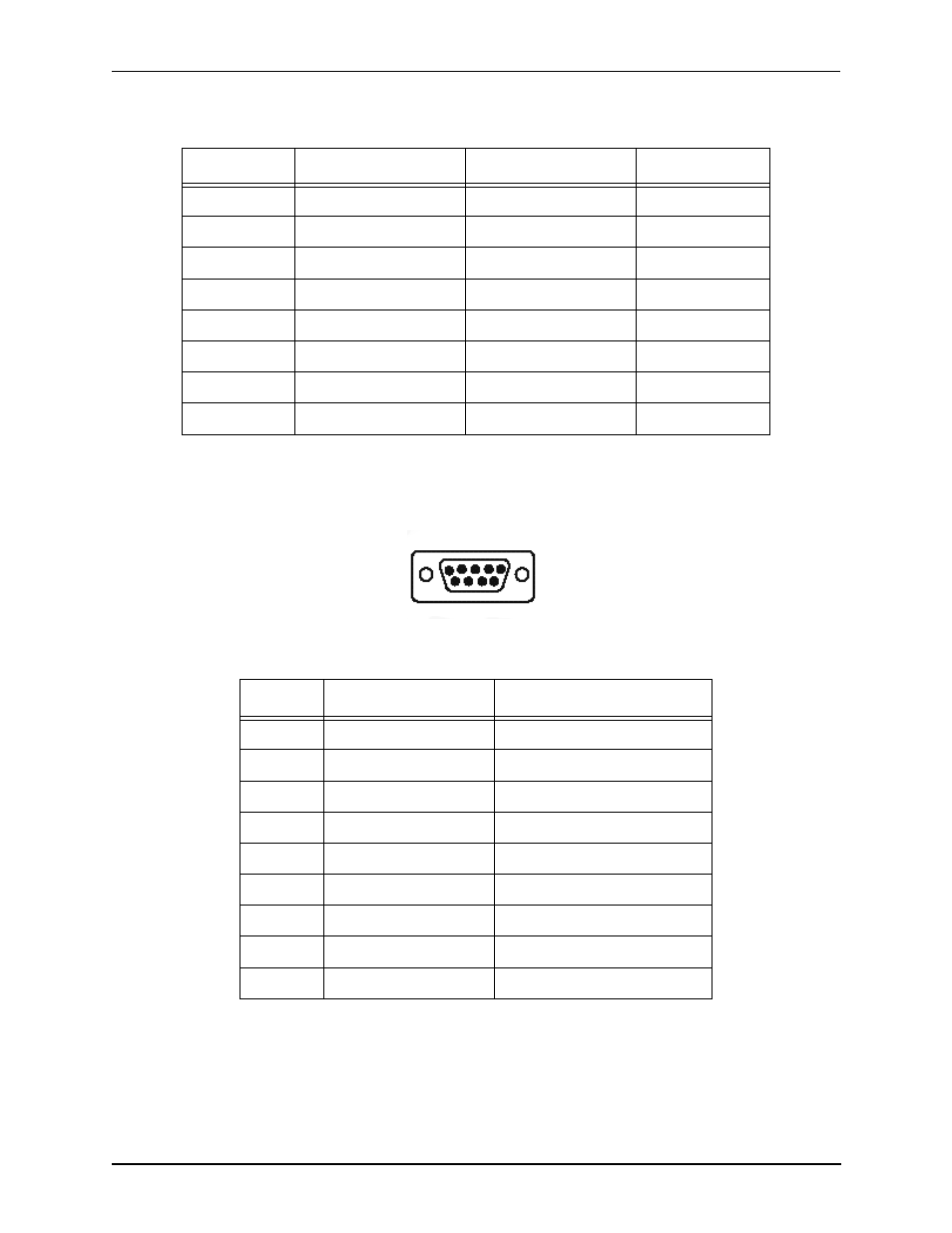

Figure 2-19 DB-9 Female Connector Pin Order
Table 2-5 Serial RS232 DB-9 Connector Pinouts
Config switch. For internal Quintum use only.
Pin # Signal Definition Color
1 TX + Transmit Data White w/orange
2 TX - Transmit Data Orange
3 RX + Receive Data White w/green
4 RSVD Reserved Blue
5 RSVD Reserved White w/blue
6 RX - Receive Data Green
7 RSVD Reserved White w/Brown
8 RSVD Reserved Brown
Pin # Function Description
1 RSVD Reserved
2 RXD Receive Data
3 TXD Transmit Data
4 RSVD Reserved
5 GND Signal Ground
6 RSVD Reserved
7 RSVD Reserved
8 RSVD Reserved
9 RSVD Reserved
5 4 3 2 1
9 8 7 6
