HP 480-0005-00-15 User Manual
Page 40
2-16
P/N 480-0005-00-15
Chapter 2: Hardware Components

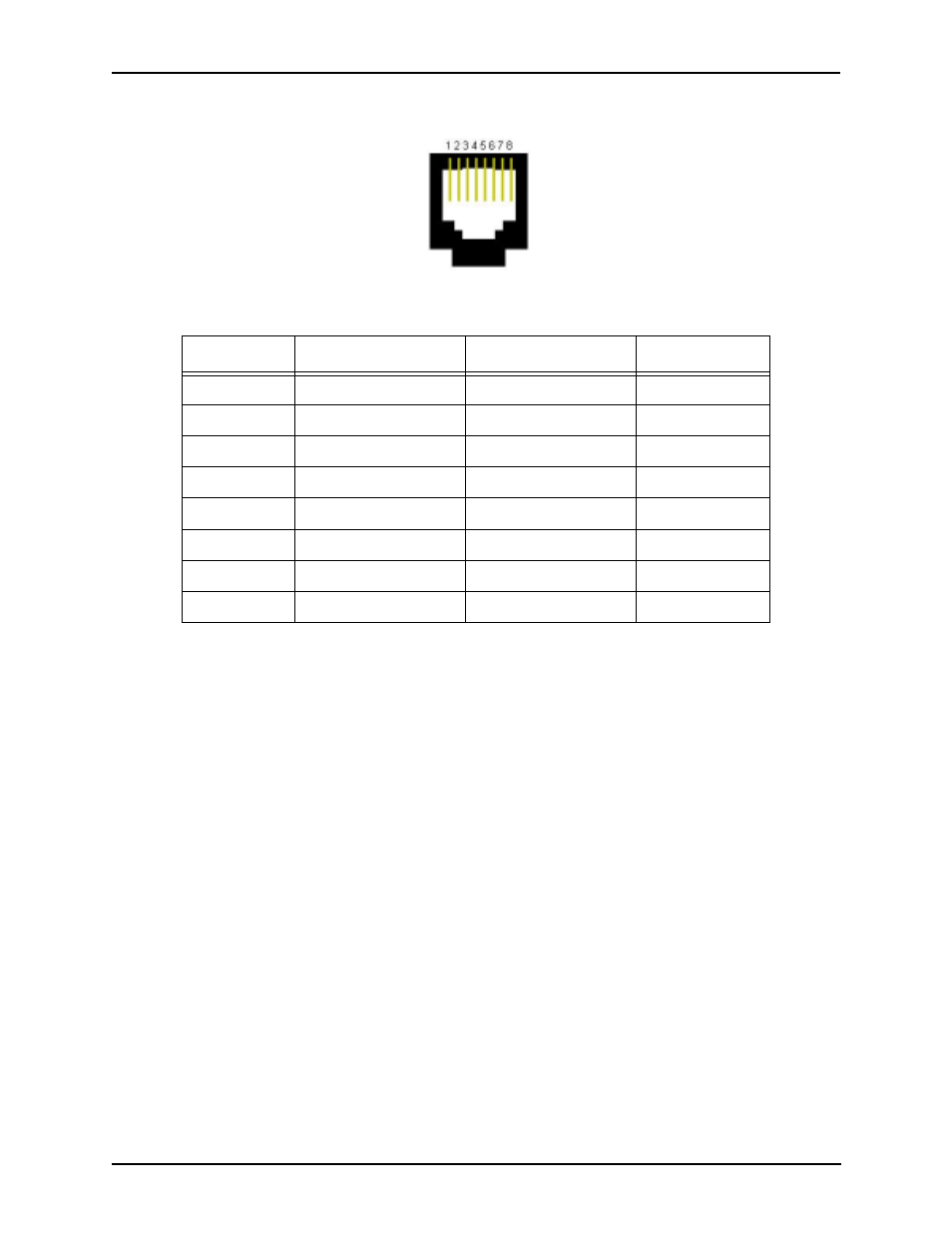

Figure 2-14 10/100 Ethernet Port Pin order
Table 2-2 Input/Output Signals for 10/100 Ethernet Port
Pin #
Signal
Definition
Color
1
TX +
Transmit Data
White w/orange
2
TX -
Transmit Data
Orange
3
RX +
Receive Data
White w/green
4
RSVD
Reserved
Blue
5
RSVD
Reserved
White w/blue
6
RX -
Receive Data
Green
7
RSVD
Reserved
White w/Brown
8
RSVD
Reserved
Brown
