P/N 480-0005-00-15 2-31
Chapter 2: Hardware Components
Cables
The cables listed in Table 2-10 are required to connect a Tenor CMS to various interfaces. Contact Quintum
for ordering information, if necessary.
Table 2-10 Cables Supported
RJ-45 Cables
RJ-45 cable connector pinouts are given in this section to help you identify the proper connector to accommo-
date your specific networking requirements. The RJ-45 (ISO 8877) connector is the EIA/TIA standard for
Unshielded Twisted Pair (UTP) cable; the wiring color codes are UTP Standard Coloring. The pin order is
shown in Figure 2-27.

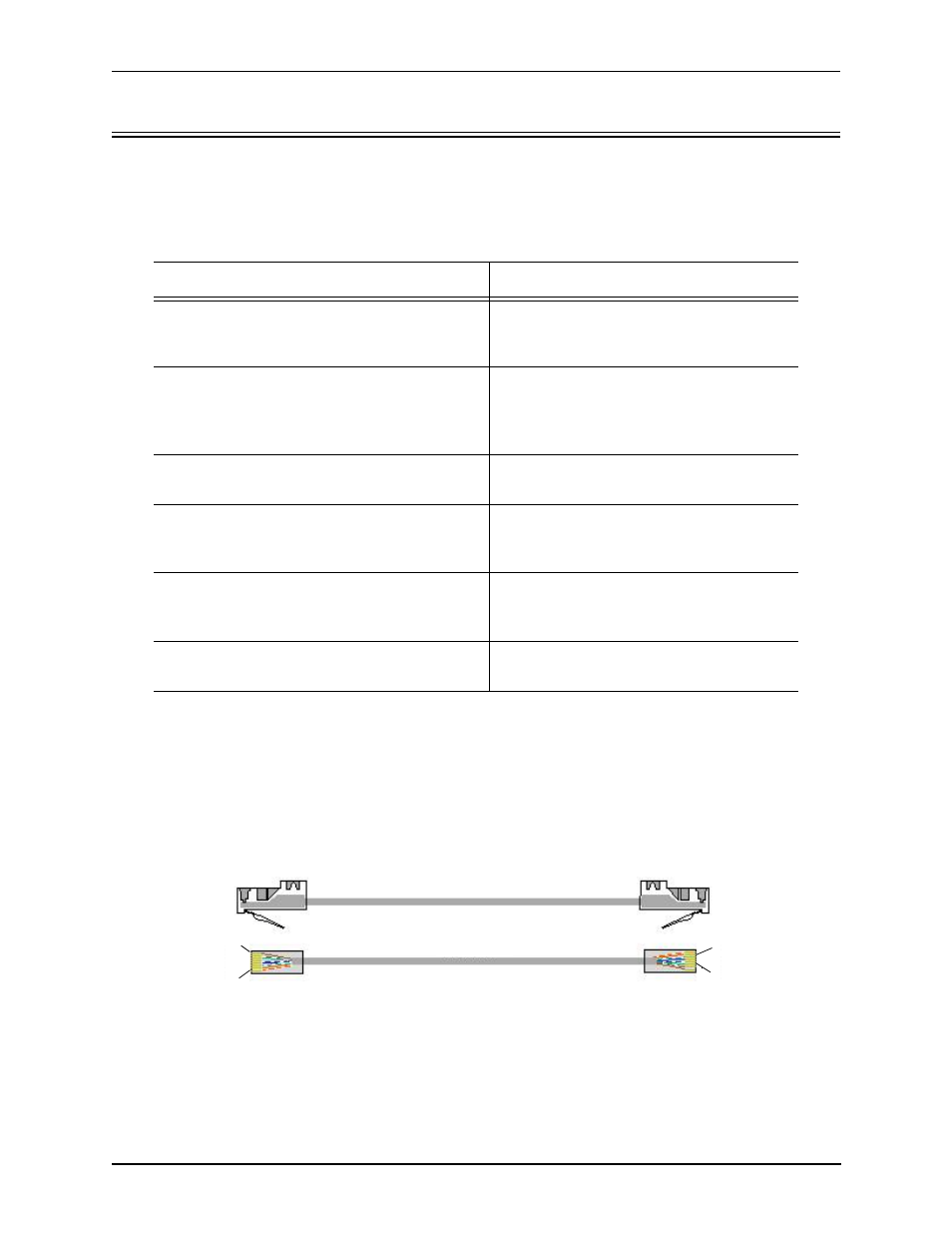

Figure 2-27 RJ-45 Pin Order
Cable Usage
RJ-48 to RJ-48 Crossover Cable (this cable is red
if provided by Quintum) All units
T1/E1 connection to Line Side (PBX) inter-
face.
RJ-48 to RJ-48 Straight Through cable (this cable
is green if provided by Quintum) All units
T1/E1 connection to Trunk Side (PSTN) inter-
face.
T1/E1 connection to external CSU.
RJ-45 Ethernet cable (grey) All units
Connection to Ethernet LAN 10/100.
DB-9 Male to DB-9 Female Null Modem Cable
(for use with System Controller) All units
Connection to PC’s asynchronous console
port.
DB-9 Serial RS-232 (for use with CPU) All units
Connection to PC’s asynchronous console
port.
Detachable (IEC) AC Power Supply Cord (for AC
units only) All units
Connection to AC power jack.
8
1
1
8
Side View
Top View
