P/N 480-0005-00-15 2-3
Chapter 2: Hardware Components
Chassis - CMS (14 Slot)
The chassis is the 19” rack-mountable unit which houses all WAN cards, System Controller/CPU cards, DSP
cards, and power supplies. The two system fans are installed at the top of the chassis. See the following sec-
tions for unit front and unit back details; both the AC version and DC versions are illustrated and explained.
Front (with AC power)
NOTE: For pictorial purposes, Figure 2-1 shows the unit with 1 DS1 card and the CPU card.

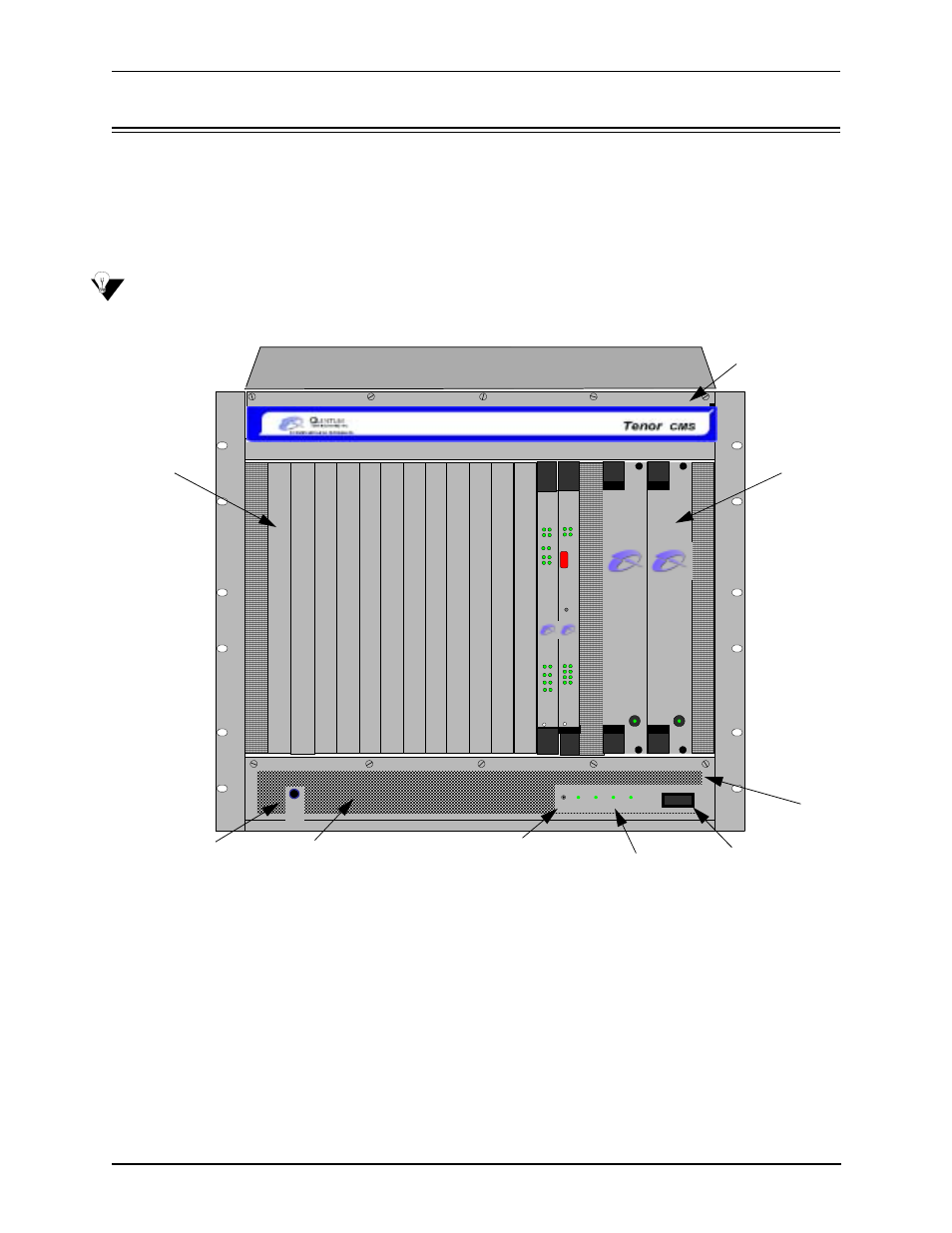

Figure 2-1 Tenor CMS Front View - AC unit
• Card Slots. Fourteen slots are available for WAN cards, DSP Resource Cards, DS1 cards, and the CPU/
System Controller Card.
• Power Supplies. Two load-sharing AC power supplies. The load sharing feature enables one power sup-
ply to take over if the other fails.
• System Fans. Two system fans, accessible through a swing down panel via thumb screws are used to
cool the chassis. These fans are “hot-swappable”, meaning you can remove/replace the fans while the
unit is operational.
• Reset Button. Enables you to reset the system. This function will be supported in a future release.
• Ground Strap Socket. A ground connection is provided for ESD protection.
0 1
Reset +3.3V +5V +12V -12V
Q UINTUM
T ECHNOLOGIES, INC.
TM
Q UINTUM
T ECHNOLOGIES, INC.
TM TM
Fault Fault
TM
Ground
Strap
Status Alarm
CPU PCI
Reset
10/100 Ethernet
Link TX/RX
1
2
3
4
Q UINTUM TM
TECHNOLOGIES, INC.
Hot Swap
CPU
Hot Swap
DS1
Status Alarm
1 2
PCI CPU
Bank DSP
1
2
TX/RX Link
1
2
3
4
5
6
7
8
10/100
Ethernet
Span Status
TECHNOLOGIES, INC.
Q UINTUM TM
Ground Strap Socket
Air Inlet
Reset
Button
Chassis LEDs On/Off Power
System Fans
WAN Power
Supplies
Card Slots
Air Filter
