Service Parts

P35i Pellet Insert

Beginning Manufacturing Date: July 2010

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement

parts for your appliance please provide model number and serial number. All parts listed

in this manual may be ordered from an authorized dealer.

Stocked

at Depot

ITEM

Description

COMMENTS

PART NUMBER

1

Pipe Stub/4 in Flex w/gasket

1-00-674040

3" Stub Kit

1-00-674039

2

Gasket Set, Burnpot/Pipe Stub

Set of 5

1-00-07384

Y

3

Mounting Frame Assembly

1-10-774235A

Srew-HCS5/16-18 X 1-1/4

Pkg of 50

3-30-1129-50

Y

4

Wing Assembly

Oversize-Black

1-00-774250-1

No longer available 1-00-774250-2
No longer available 1-00-774250-3

Custom

1-00-774221-SPL

4.1

Surround Top

Standard

1-10-774222

Oversize

1-10-774250

4.2

Machine Screw Nut10-32

Pkg of 100

3-30-8003-100

Y

4.3

Pop Rivet 1/8 X 1/8 Black

Pkg of 50

3-30-9004-50

4.4

Surround Left

Standard

1-10-774220

Oversize

1-10-774248

4.5

Control Door w/Hinge

1-00-774310

4.6

Screw, PHM 8 X 1/2 Black

Pkg of 100

3-30-5000-100

Y

4.7

Surround Right

Standard

1-10-774221

Oversize

1-10-774249

4.8

Control Board Mount

1 Set

1-00-774251

Wing Splices

Set of 2

2-00-774178-2

5

Differential Switch

3-20-6866

Y

6

Docking Gasket

3-44-06108

Y

7

Circuit Board w/Knobs & Shafts

1-00-05886

Y

Knobs & Shafts

Pkg of 25

1-00-015605

Y

Additional service parts on following page.

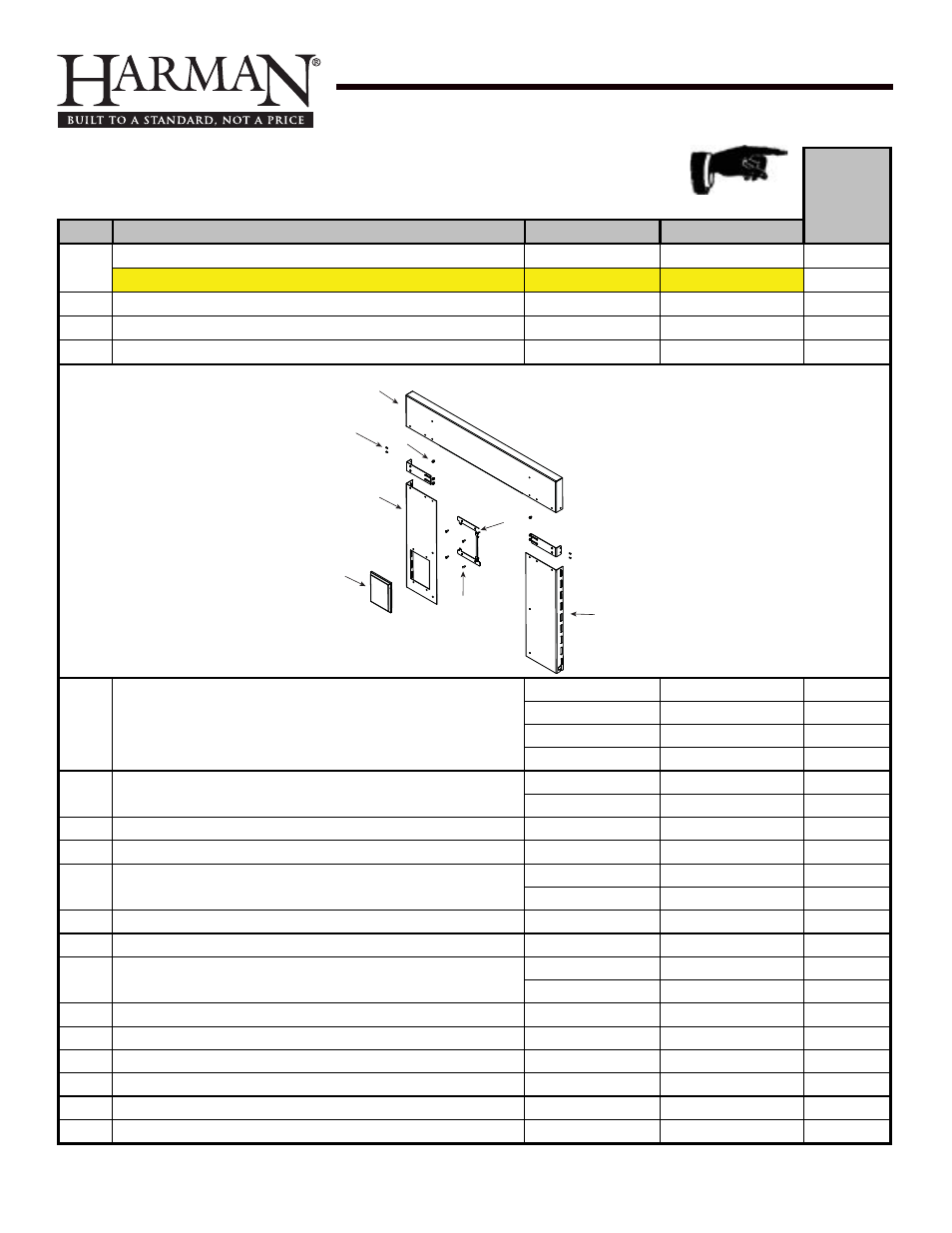

#4 Surround Assembly

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8
