36
P35i Fireplace Insert
Pellets or Corn/Pellet Mixture Only Save These Instructions 3-90-775R15_04/13

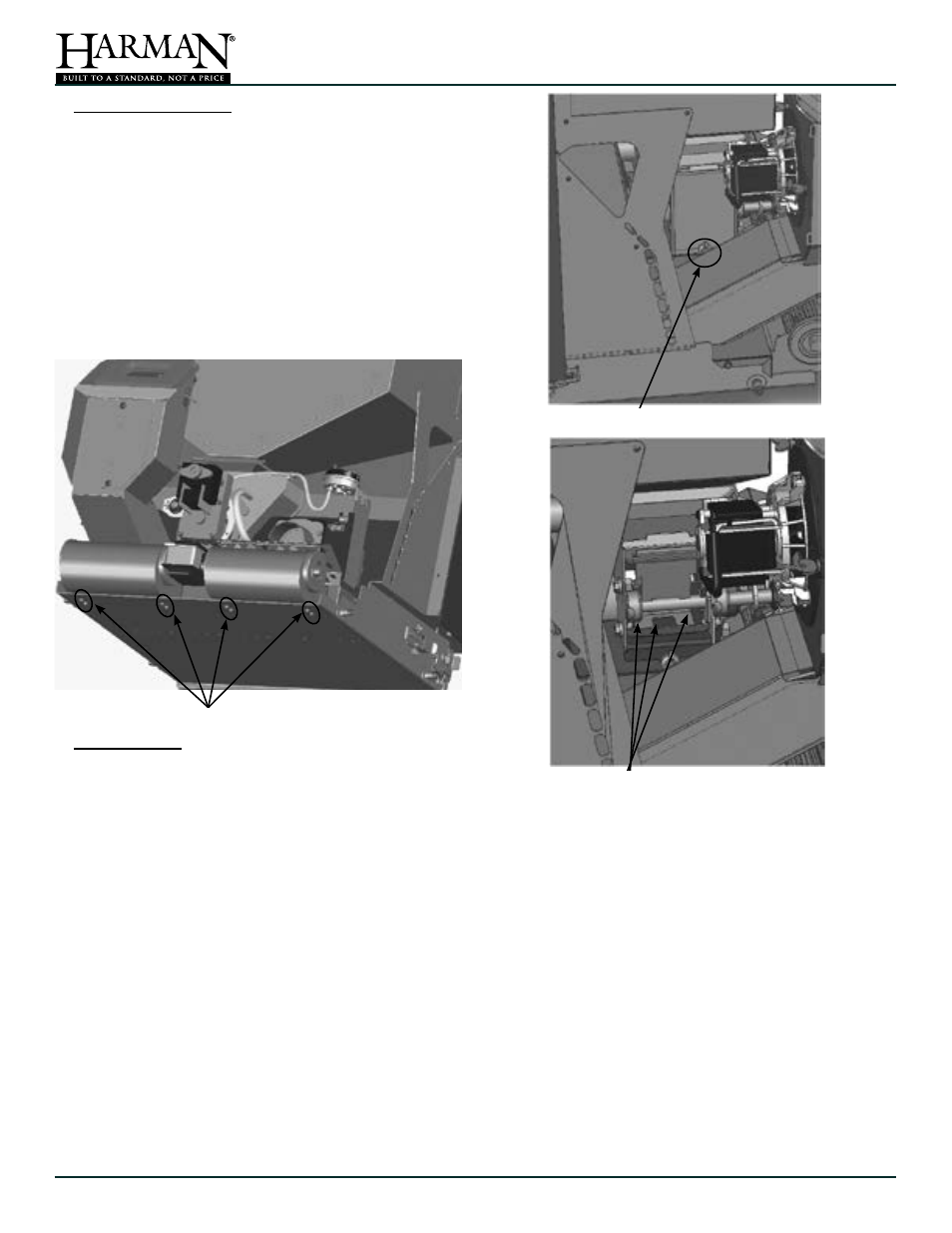

4. Distribution Blower
Requires no lubrication.
Keep the motor windings and squirrel cage fan free of
dust. Can be wiped clean or vacuumed.
To remove distribution blower;
• Slide the insert body out of the mounting frame.
• Locate the blower in the back of the unit. You'll
need to tilt the unit forward for easy access.
• Remove 8 tek screws using a 5/16" driver or
wrench.
8 screws
5. Feeder Body
Wipe or vacuum to clean.
Use a vacuum to remove fines and sawdust.
To access feeder cleanout;
• Slide the insert body out of the mounting frame.
• Locate the feeder cover from the right side of the
unit.
• Loosen the wing nut approximately 3/4 of the way
out on the stud.
• Pull out on the bottom of the cover then lift upward
to remove.
• Notice the deflector shield is sitting loose in the
feeder. It can be removed by rolling it from under
the pusher arm shaft. Just be sure it is repositioned
properly.
• When re-installing cover, tighten the wing nut hand
tight only.
Loosen wing nut to remove cover
Vacuum fines from this area
