P35i Fireplace Insert
Pellets or Corn/Pellet Mixture Only Save These Instructions 3-90-775R15_04/13
D. Before Your First Fire
• Be sure the appliance is installed properly and
that all safety requirements have been met.
Pay particular attention to the clearances to
combustibles, floor protection and the venting
instructions.
• Test your smoke detector(s) and CO detector(s) to
the specifications of the manufacturer.
• Double check that the ash pan and internal firebox
are empty.
• Be sure to read this entire manual.
E. Draft Test Procedure

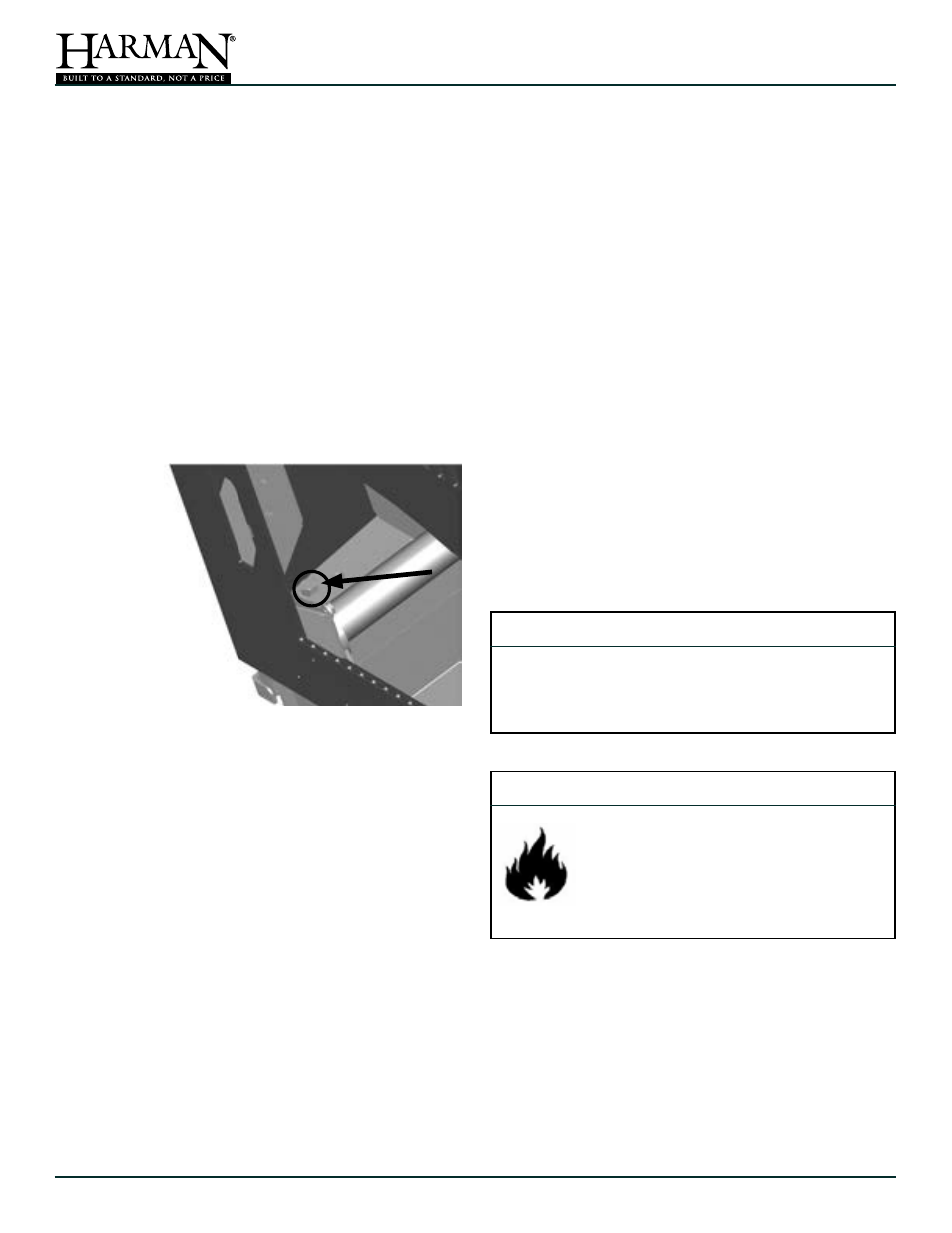

• Using a 9/16" wrench, remove the draft test port
plug bolt, located to the left inside the firebox. This
bolt threads downward through the outside of the
body. Externally, the opened hole is located above
the ash pan spring latch on the left.
• Insert
the draft
meter
hose into
the test
port.
• Be sure
the meter
is capable
of a scale
between 0
and 1 inch
Water
Column.
Zero the meter if necessary, and be sure it is set
up to read in negative pressure.
• Be sure the ash pan, door, and hopper lid are all
closed and latched.
• Turn the feed adjuster to "Test" mode.
• During the first minute of test, the combustion
blower will be on high. Record the high draft
reading here ____________-W.C. The high draft
should be above -0.5" W.C. but no higher than -1"
W.C.
• After a minute, the combustion blower will go
to low speed. Here you want to see a reading
between -0.30" and -0.35". If necessary, adjust the
draft voltage using the low draft adjustment screw
on the circuit board (See Page 24). Clockwise
will increase the draft and counter-clockwise will
decrease it.
• Once set, record the low draft reading
here:___________ -W.C.
• Be sure and turn off of "Test" mode. Disconnect
the meter and return the plug bolt to the test port.
F. Starting a Fire - "MANUAL"
1. With the mode selector in the "OFF" position, and
the Feed Adjuster NOT on "Test", plug the power
cord into a properly grounded receptacle.
2. Fill the hopper with DRY fuel.
3. Turn the FEED ADJUSTER dial to "Test". This will
run the feed motor for one minute. If you begin to
see fuel entering the burn pot, you can stop the
test cycle. Return to #4 or #5 to start out.
4. Turn the mode selector dial to the desired mode.
This will start the combustion blower operating.
If Room Temp is selected, be sure to turn
the temperature dial above the current room
temperature.
5. Fill the burn pot with a mixture of wood pellets and
starting gel.
6. Light the starting gel with a match, and close the
door.
7. Only after the ESP temperature increases, will the
feeder start operating to increase the fire size.
NEVER APPLY STARTING GEL TO THE FUEL IN
THE BURN POT WITHOUT THE COMBUSTION
BLOWER OPERATING.
WARNING
TESTED AND APPROVED FOR USE WITH WOOD
PELLETS OR A MIxTURE OF SHELLED CORN AND
PELLETS ONLY. USE OF ANY OTHER TYPE OF FUEL
WILL VOID THE APPLIANCE WARRANTY.
The optimal method of operation is in Room Temp
mode, with the Ignition switch set to Automatic.
"NEVER USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO
START OR "FRESHEN UP " A FIRE IN THIS
HEATER. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE HEATER WHILE IN USE".
WARNING
