35 Pellets or Corn/Pellet Mixture Only
P35i Fireplace Insert
Save These Instructions 3-90-775R15_04/13

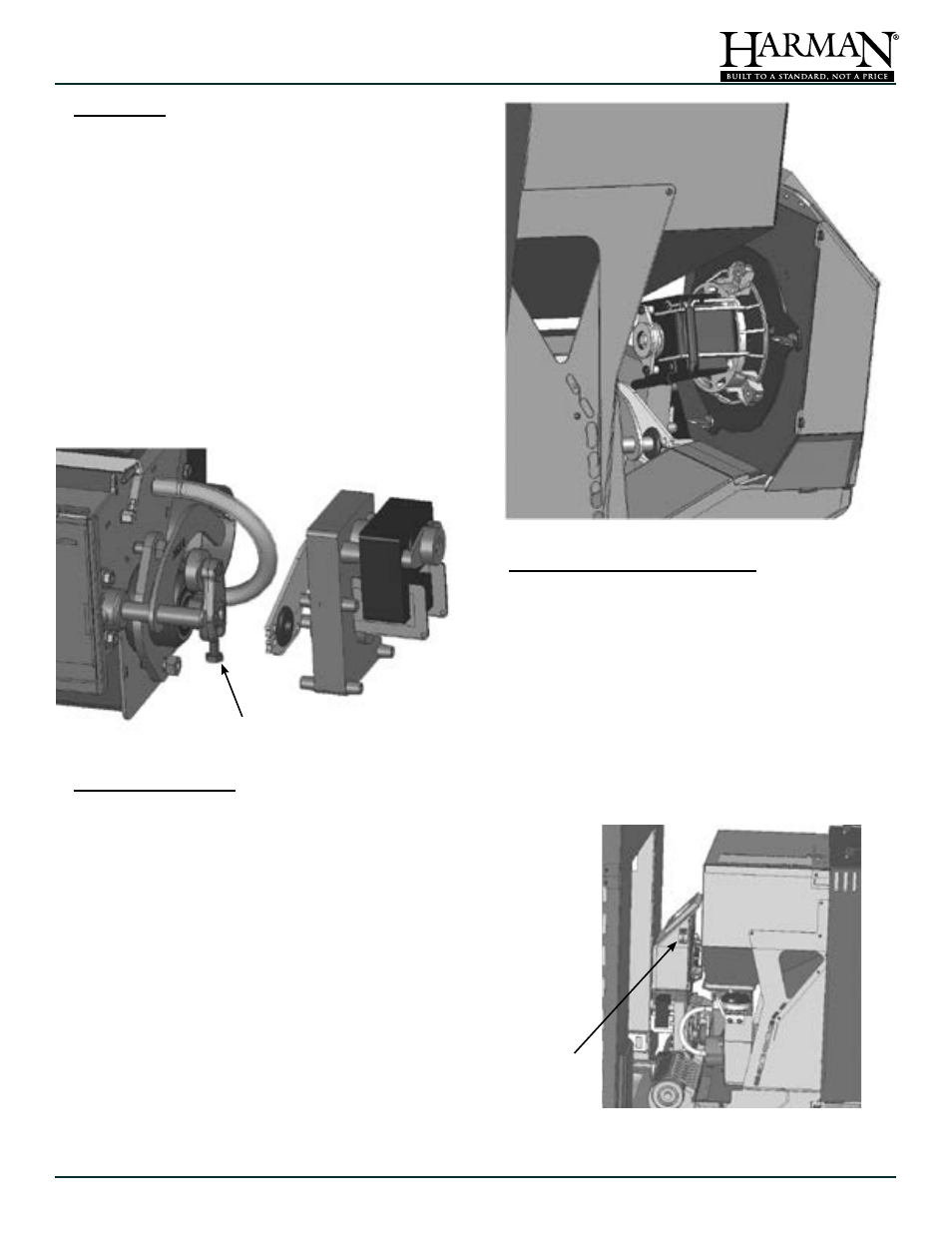

2. Combustion Blower
Requires no lubrication.
Keep the motor windings free of dust. Can be wiped
clean or vacuumed.
To remove combustion blower;
• Slide the insert body out of the mounting frame.
• Locate the combustion blower motor in the back
right corner.
• Loosen 3 wing screws and turn the blower and
mounting plate 1/4 turn.
• Lower the motor and paddle fan out of the blower
housing.
3. ESP- (Exhaust Sensing Probe)
Remove and wipe clean with a soft cloth and glass
cleaner or alcohol.
To remove the probe;
• Slide the insert body out of the mounting frame.
• The probe is installed on the side of the exhaust
chamber.
• With a 1/4" socket or driver, remove the screw that
attaches the probe.
• Pull the probe out of it's mounting hole.
1. Feed Motor
Requires no lubrication.
Keep the motor windings free of dust. Can be wiped
clean or vacuumed.
To remove feed motor;
• Slide the insert body out of the mounting frame.
• Between the feed motor and the feeder body, you'll
see the cam block with a bearing that actuates the
pusher arm.
• With a 7/16" wrench, loosen the hex-head bolt in
the end of the cam.
• With the bolt loosened, the feed motor and its
mounting bracket will pull straight out of the auger
shaft.
Loosen bolt in end of
cam block
ESP location
