22
P35i Fireplace Insert
Pellets or Corn/Pellet Mixture Only Save These Instructions 3-90-775R15_04/13
L. Optional Log Kit
Ceramic log #3-40-674099
Log Bracket Kit #1-00-774401
Remove the two bolts from the air manifold below the glass
opening. Install the log bracket using the same two bolts.
Place the log onto the bracket with the smaller twigs pointing
back toward the burn pot.
J. Optional Trim Kit- #1-00-00775-*
The trim kit option includes a door frame and an ash lip
trim. To install the ash lip trim, simply slide it over the ash
lip from the front. You can secure it with a few dabs of high
temperature silicone, if desired. To install the door trim,
follow these steps.
• Remove the door latch by loosening the small set-screw
and tapping out the roll pin.
• Remove the door
by lifting it off of
the hinges. Lay it,
face down on a flat
surface.
• Locate and drill
the dimpled holes
in each corner of
the door, using the
provided drill bit.
• Install the trim frame
with the threaded
studs through the
holes in the door, and secure it with the four nuts
provided in the kit.
Set-screw
Roll Pin
K. Service Rail Kit- #1-00-774125
The Service Rail Kit is used to support the insert body
while it is pulled out of the mounting frame for cleaning or
service. Used only with a raised hearth installation, it is
easily adjustable to a height range of 4" to 14". Assemble
the rail kit using the provided instructions. After removing
the Ash Pan cover, the rails attach to the mounting frame
with four bolts. There are even stop bolts on the rails to
prevent accidental roll-off.
* Trim finish suffix;
4=Gold
7=Brushed Stainless
8=Bright Nickel
Two bolts on each side
secure the rail kit to the
mounting frame.

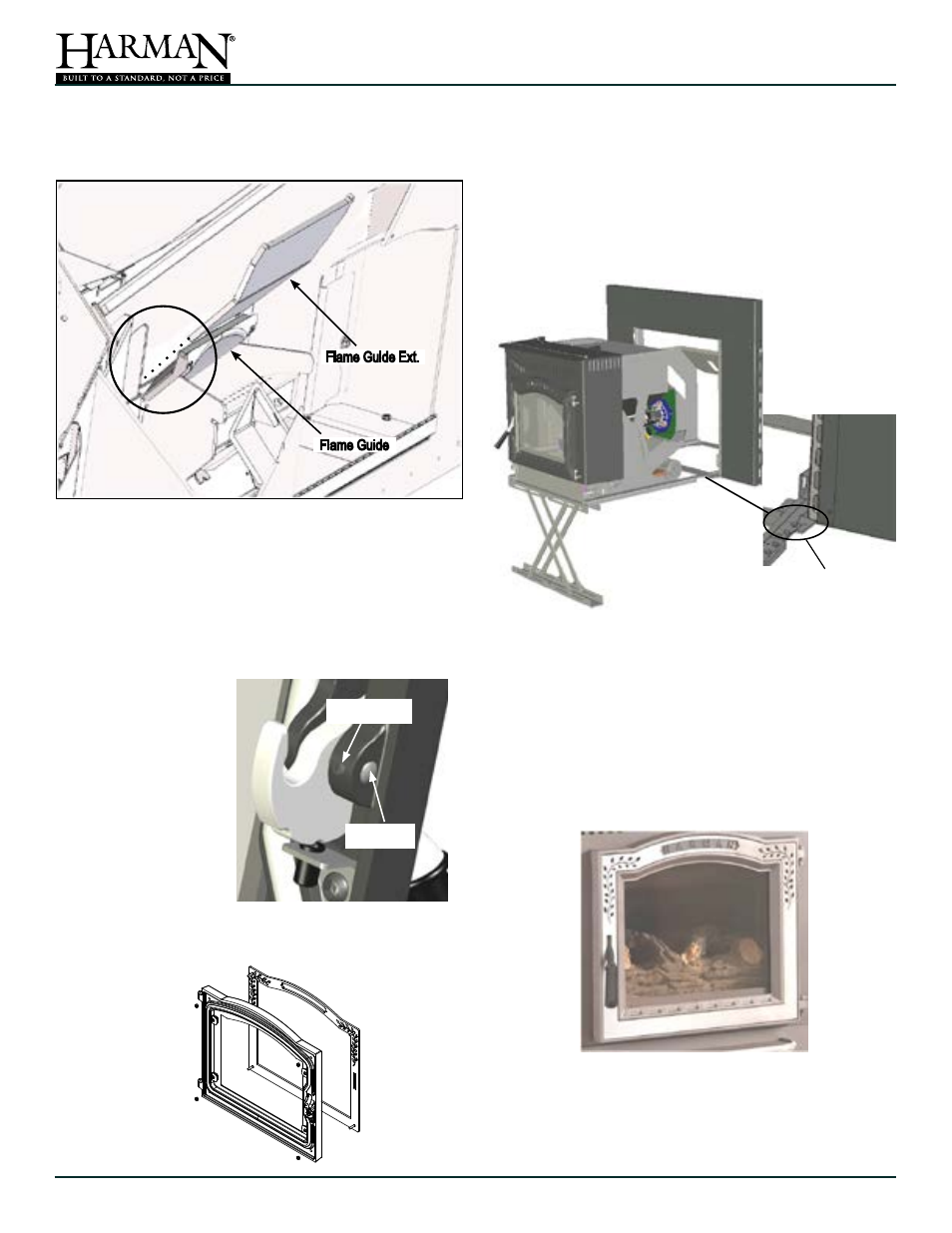

I. Flame Guide Extension
Once flame guide is installed the Flame Guide Extension
should be installed by sliding it in behind the flame guide as
shown below.
Flame Guide Ext.
Flame Guide
Please Note; The decorative log is fragile and must be
handled with care. The abrasive nature of pellet ash may
cause the log to deteriorate. Therefore, the log is not
covered under the appliance warranty.
