Series 2040 Maintenance Manual V2.00 Module Repair and Replacement
57
UUT POWER SUPPLY CONTROLLER REPLACEMENT
To remove a controller, remove the upper and lower retaining screws from the
front of the console. The controller should slide directly forward. Place the
controller to be installed on the floor directly beside the controller being
replaced. Place it in the same orientation to make the process simpler. One by

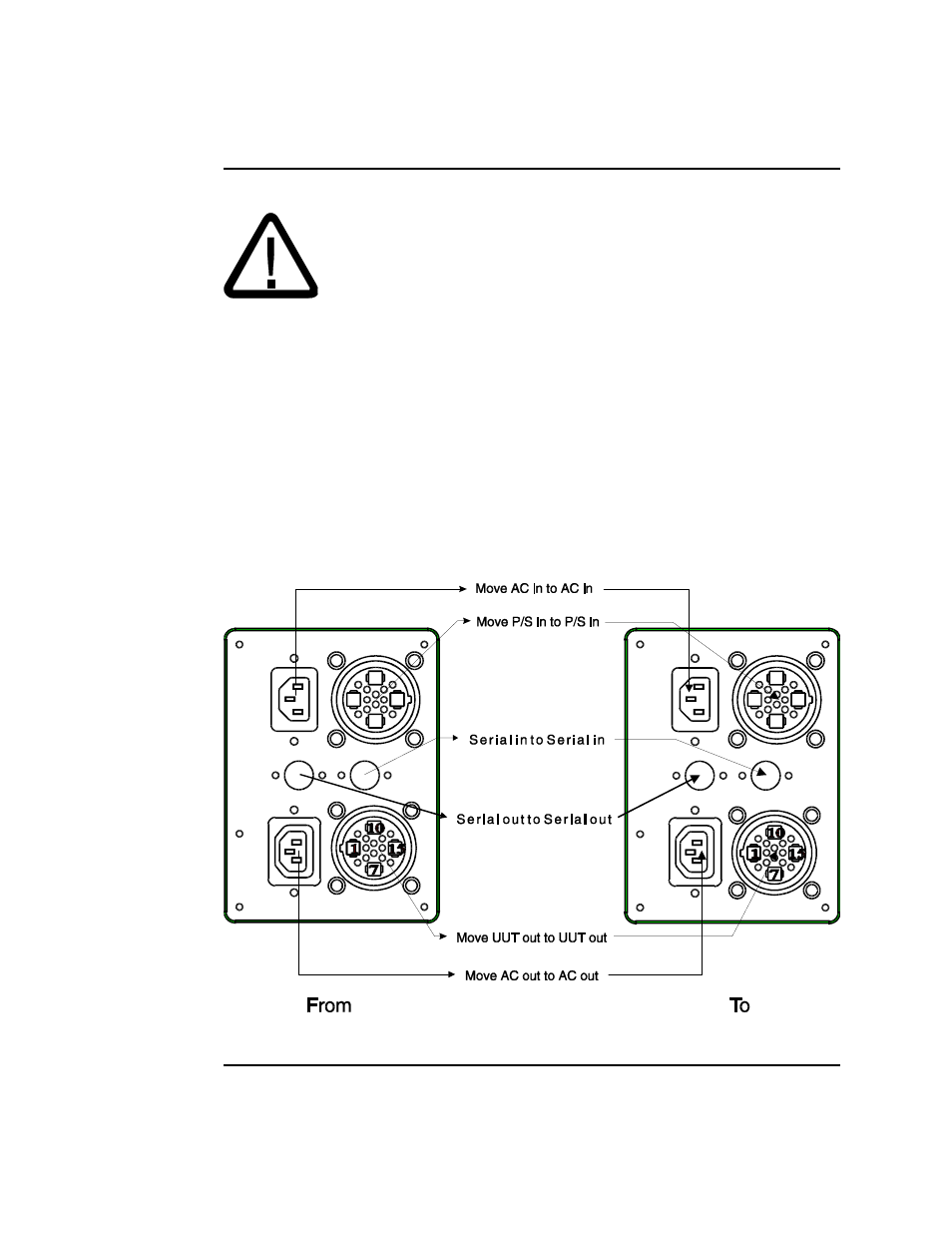

one, remove each of the cables/cords from the back of the controller being
removed, installing them in the exact same locations on the replacement
controller. To reinstall, reverse the removal process.
WARNING! Remove main power from tester before proceeding.
