Series 2040 Test System
Series 2040 Maintenance Manual V2.00 Certification
48
If the TCXO fails the preset calibration limits, it will also require a manual
adjustment. Again, contact Digalog Systems should this occur.
The procedure for the Selftest PPS current feedback circuit is almost identical
to the first two certification procedures. Follow the instructions displayed on
the screen.

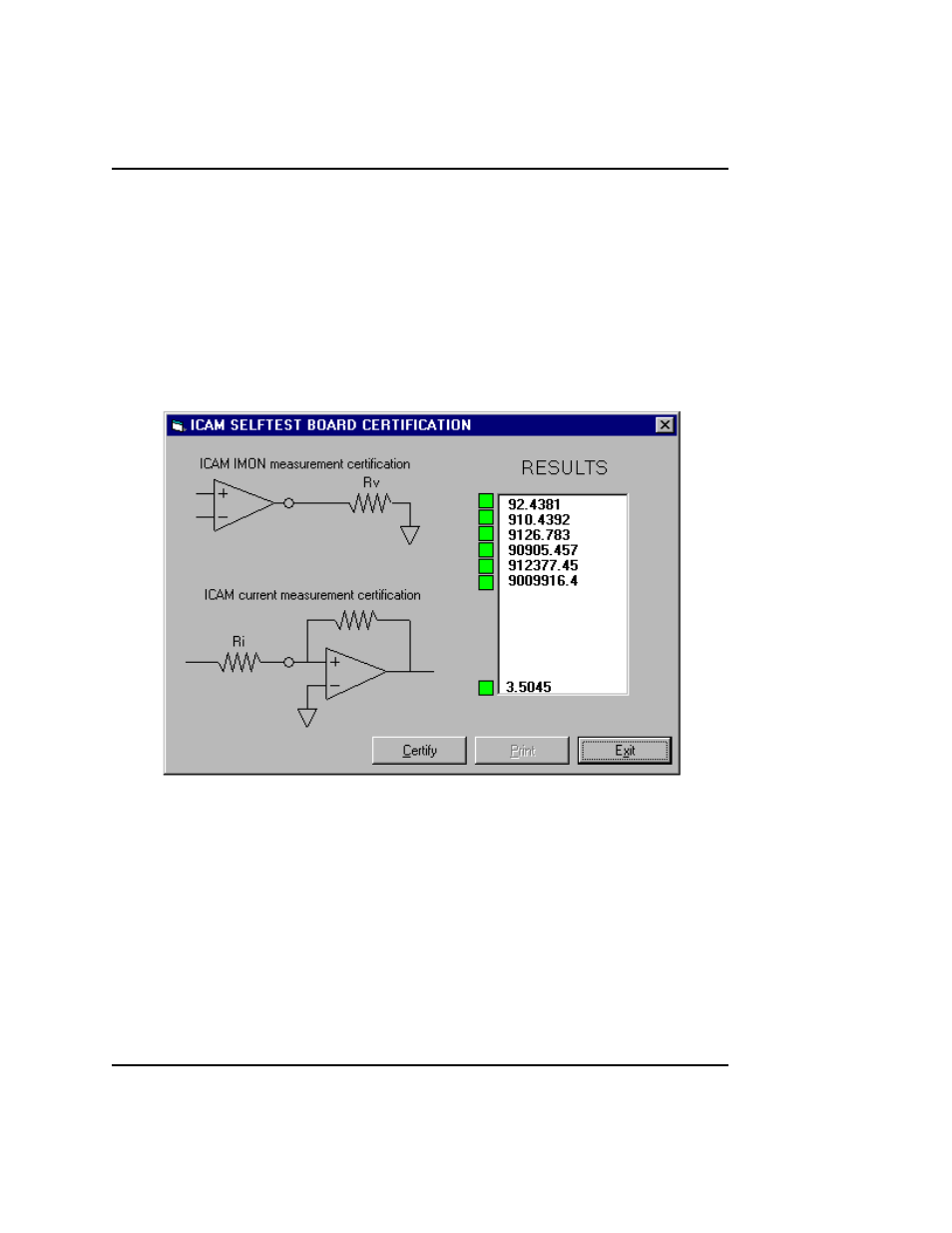

The fourth procedure certifies the ICAM Selftest current measurement
circuitry, and the last certification screen is shown below.
Connect the ICAM Certification cable from the white connector on the ICAM
Selftest board to the Fluke 8840 Multimeter.
The ICAM IMON measurement certification tests the circuitry over six
different ranges with the results displayed to the right of the dialog. The result
of the current certification is also displayed. If any of these readings are out of
range, the small box adjacent to the result will appear red instead of green.
