Series 2040 Test System

Series 2040 Maintenance Manual V2.00

Selftest & Calibration

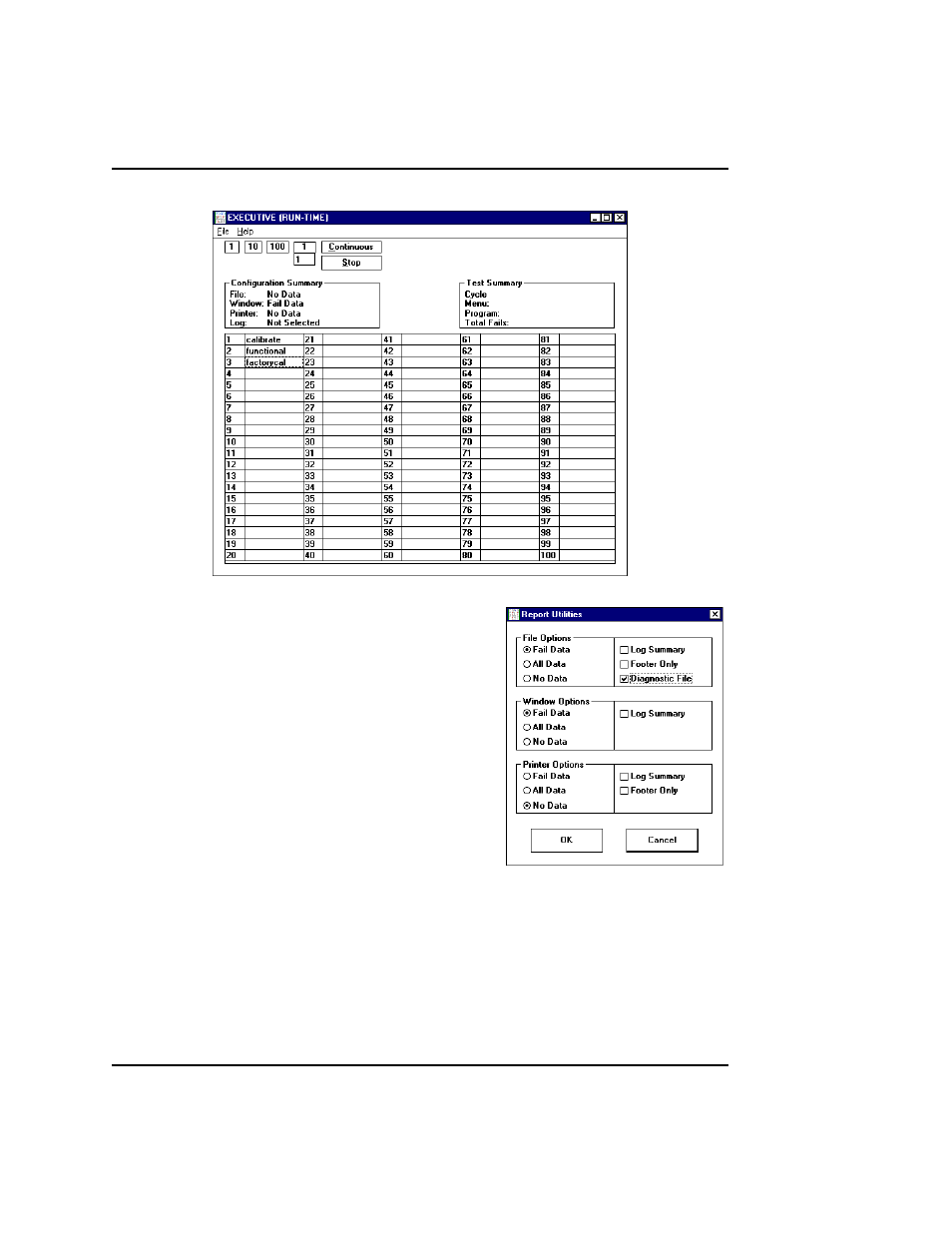

Utilities” dialog box in shown on the

next page will appear. This box contains

three separate ways of reporting the

data collected during the tests. Data

may be stored to a file, displayed on the

screen and/or printed.

In addition, each of these three

reporting functions can report “All

Data”, “Fail Data” or “No Data”. “All

Data” includes all of the pass or fail

sequences from the test. “Fail Data”

includes only information on the tests

that failed. “No Data” disables that reporting function. To select, merely

use the mouse to check or uncheck each reporting function. If a

reporting device is unchecked, the options under that device appear

“ghosted”, indicating that they are disabled. For diagnostic purposes,

enable the “Printer” and “File” options, and select the “Fail Data”

option. Under the “File” section, click the “Diagnostic File” check box.

Disable the Window reporting functions.
