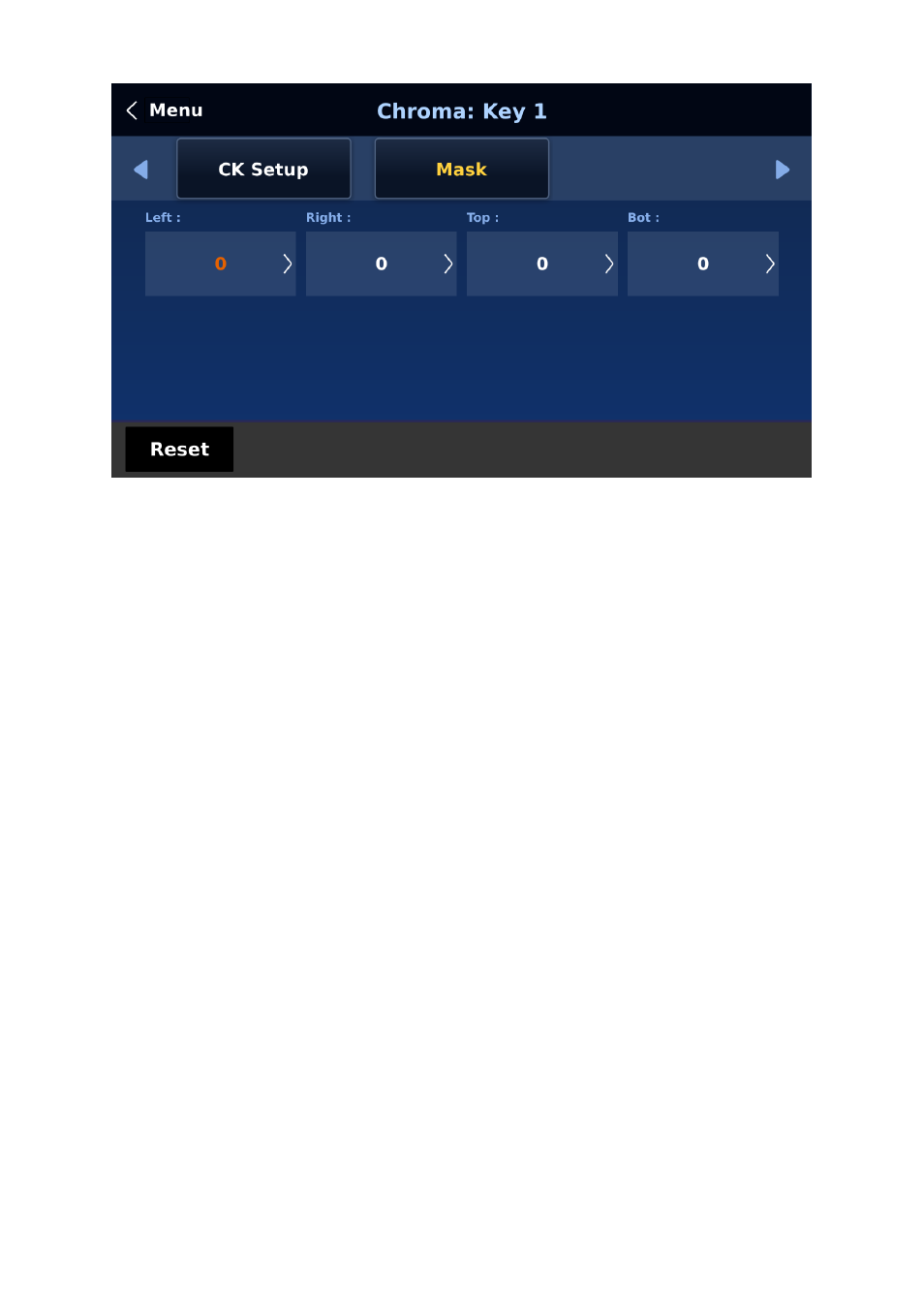

Left – Left sets the left edge of the keyer mask.

Right – Right sets the right edge of the keyer mask.

Top – Top sets the top edge of the keyer mask.

Bottom – Bottom sets the bottom edge of the keyer mask.
5.4 P-In-P
The P-in-P menu allows the user to adjust various parameters for the PIP window. Use this
menu to configure your PIP window if P-in-P is selected in Keyer Control of the Keyer menu
for a particular keyer.
Note: The keyer image source can only be selected in Key Source of the Keyer menu.
P-in-P
In P-in-P, the user will be allowed to select a keyer that has been set to the PIP window. Please
note that Keyers 1 – 4 are active for PIP configuration only if P-in-P is selected in the Keyer
menu for the respective keyer.

Key 1

Key 2

Key 3

Key 4
In Quality, select Fine to fine tune the position of the P-in-P window by adjusting X and Y
vales as well as the Size in Position sub menu. This feature allows you to move the P-in-P
window more precisely to the desired location and adjust its size.
