KP915GV Product Manual
28

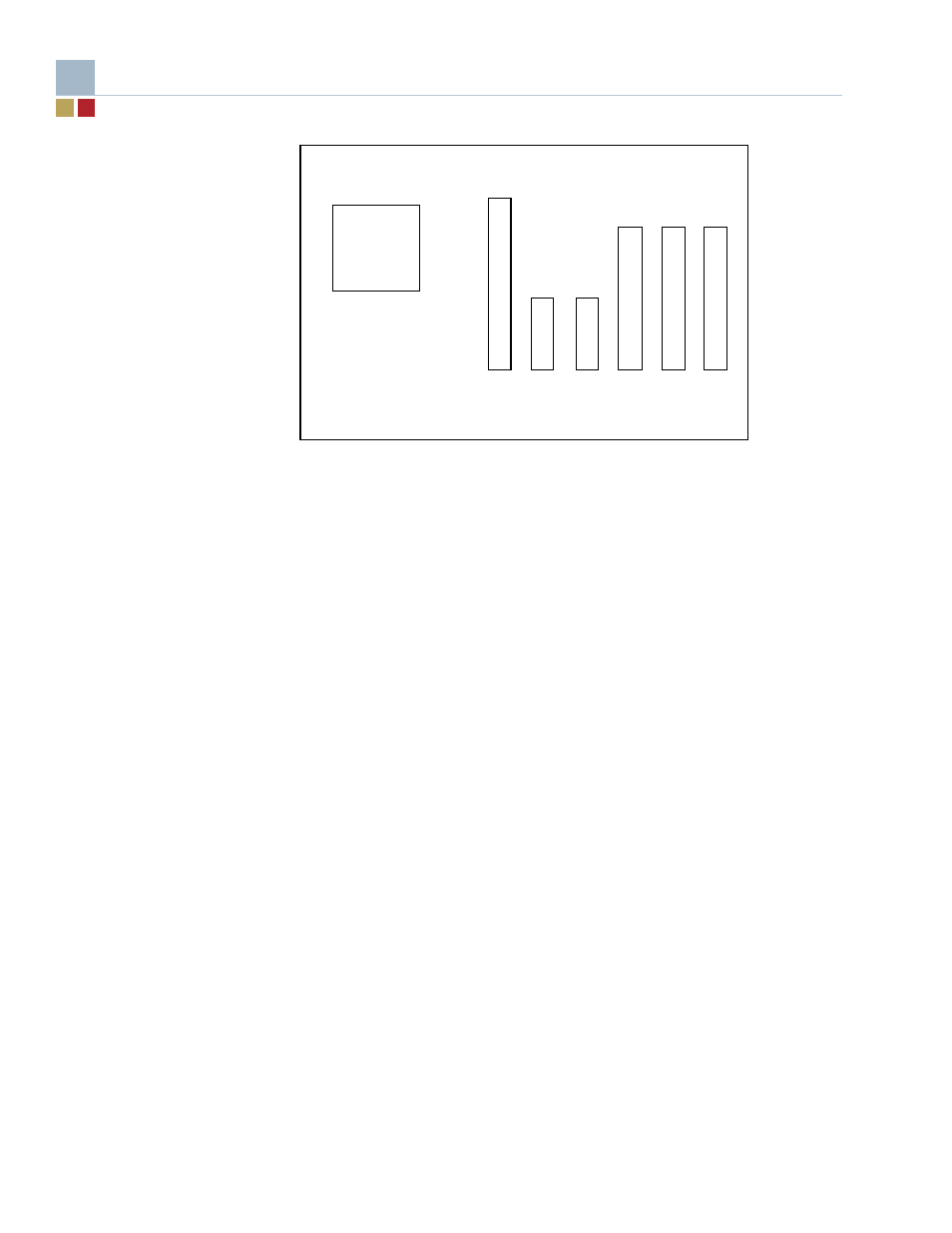

Figure 5. KP915GV Board Slot Layout
2.8 Disks
• Four 150MB/s SATA ports with locking headers
• One Ultra ATA/100 interface via on-board 40-way boxed header
• 40/80-pin cable host-side detection or forced in BIOS
• Support for hard disks and ATAPI drives
• BIOS support for 48-bit LBA (ATA drives >137GB)
• Support for USB drives including boot
2.9 Audio
SigmaTel STAC9200 audio controller with Intel High Definition Audio (HDA) compatible mode
• On-board ATAPI connectors
• ATAPI 1: Line input connector (black)
• ATAPI 2: Stereo AUX/MIC input connector (white)
• ATAPI 3: Stereo Line output connector (yellow)
• Two I/O panel 3.5mm plug and play audio jacks – default connections:
• Stereo microphone input (with support for microphone bias)
• Stereo line output with headphone drive capability
(Note: an option exists for a three jack connector – refer to Table 2 and comments below.)
• On-board PC beeper
ADD2 x1
PCI-E
PCI
Processor
x1
PCI-E
PCI PCI
