KP915GV Product Manual
23

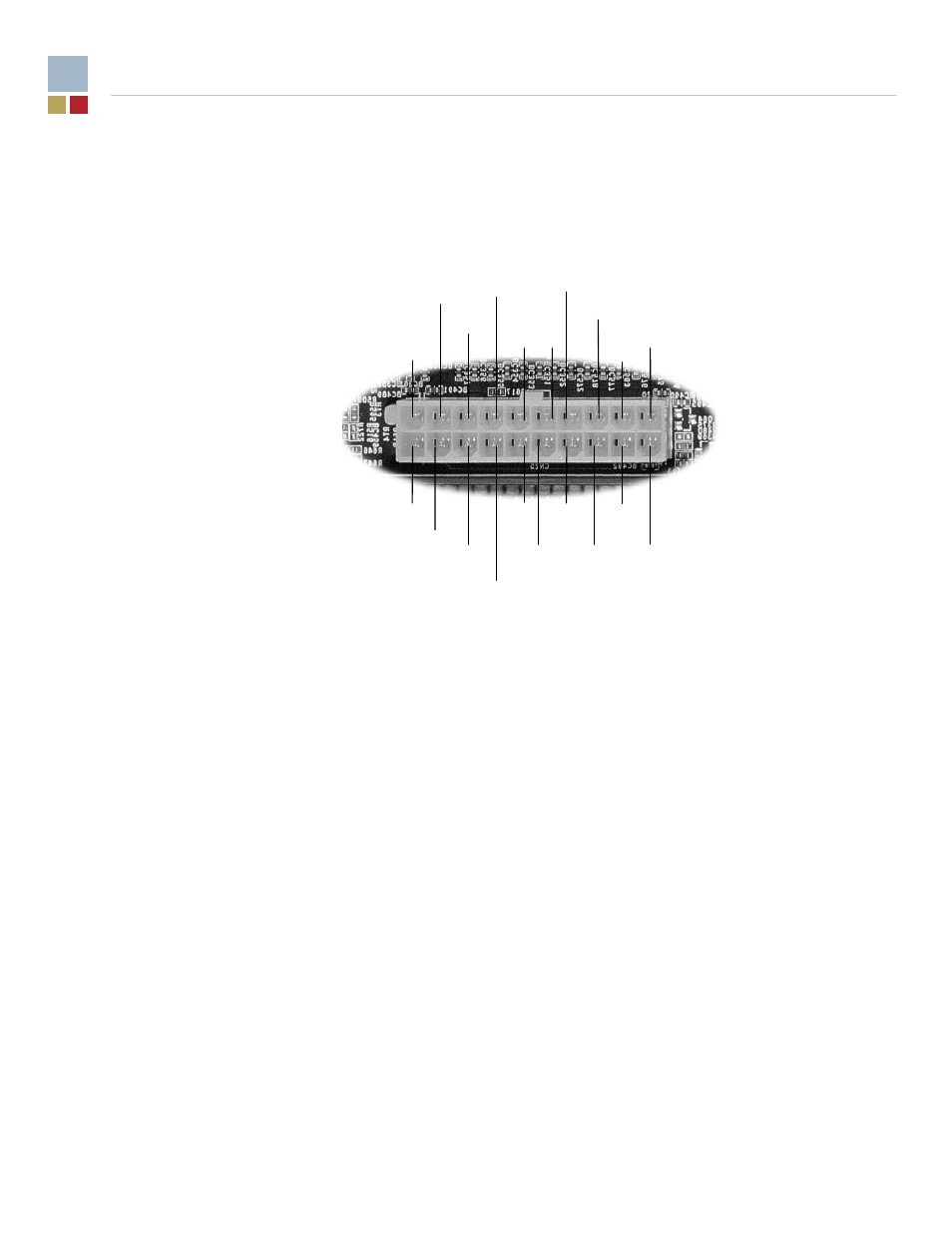

KP915GV 20-pin ATX power connector:
Below is the ATX power supply connector. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power supply cable into
the connector and make sure it is secure
.
5V
GND GND
GND
GND
GND
5V
+5V
Pw-OK
3.3V
GND
3.3V
5VSB
12V
-12V
3.3V
PS-ON
GND
-5V
5V
20-pin ATX power connector
