Endura RADISYS KP915GV User Manual
Page 125
KP915GV Product Manual
125

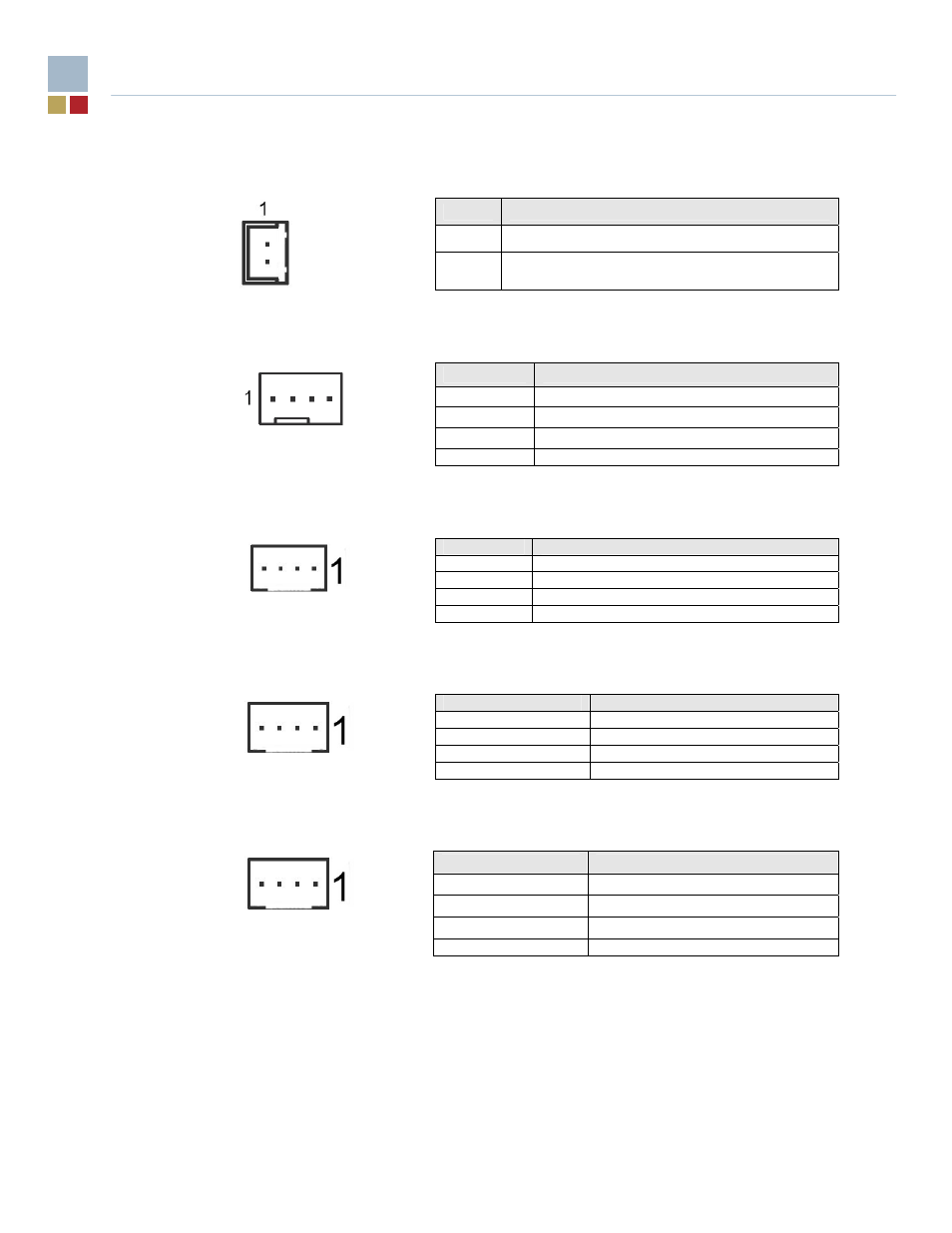

Table 37. Remote Thermal Sensor
Pin
SIGNAL
1 DIODE+
2 DIODE-
Table 38. 3 X Fan Connector
Pin
SIGNAL
1 GND
2 +12V
3 TACHO
4 PWM
Table 39. SMBus Connector
Pin
SIGNAL
1 +3.3V
2 DATA
3 CLOCK
4 GND
Table 40. PS/2 Keyboard Header
Pin
SIGNAL
1 +5V
(fused)
2 DATA
3 GND
4 CLOCK
Table 41. PS/2 Mouse Header
Pin
SIGNAL
1 +5V
(fused)
2 DATA
3 GND
4 CLOCK
