KP915GV Product Manual
18

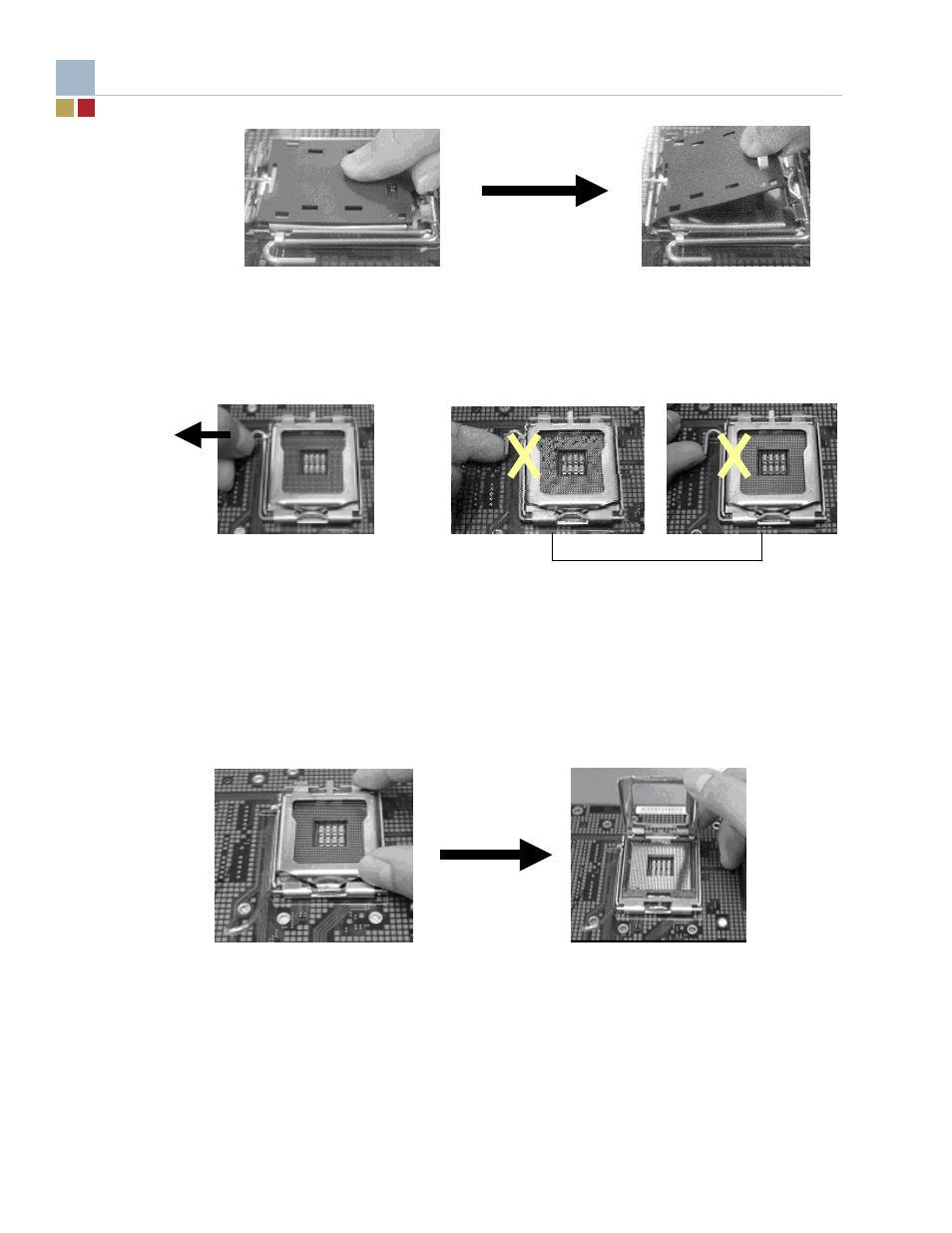

3. Use thumb & forefinger to hold the hook of the load lever and pull the lever sideways to unlock it.
Warning:
DO NOT
use finger to lift the locking lever, as injury could occur to the finger and the SKT could be
damaged.
4.
Lift up the lever. Use thumb to open the load plate. Be careful not to touch the contacts.
5.
Hold the CPU and tilt it to some degree since the contacts are designed to be hooked, and
then match the triangle marker to Pin 1 position as shown below. Carefully insert the CPU
into the socket until it fits in place.
Correct
Wrong
