KP915GV Product Manual
119
13 Not used but pulled low
14 Not used but pulled high to +5V
15 Not connected
C.4 PCI Express x1 Slot

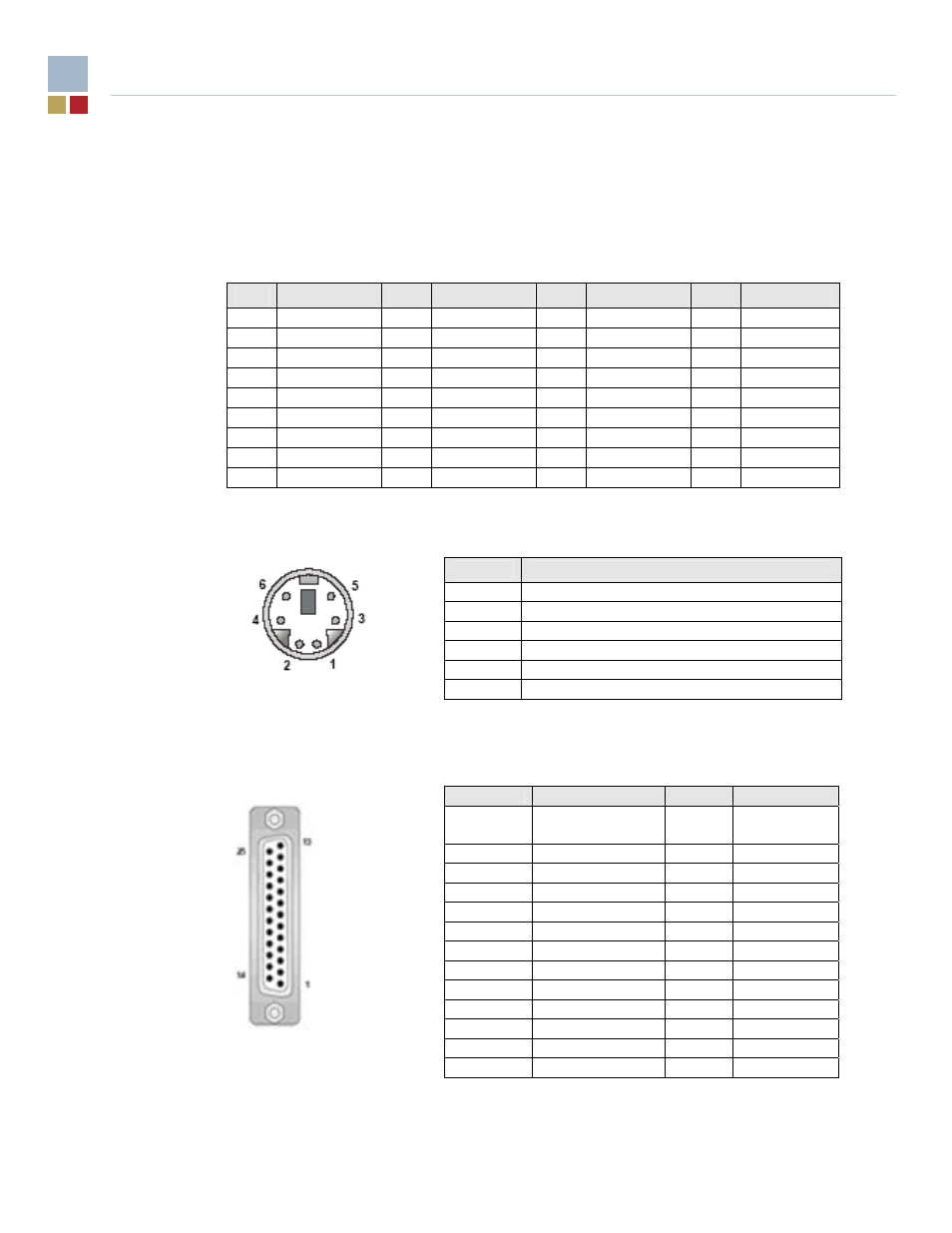

Table 17. PCI Express x1 Slot (PCI-E x1)
Pin Signal Pin Signal Pin Signal Pin Signal
A1 PRSNT1# 16 B1 12V A10 3.3V B10 3.3VAUX
A2 12V B2 12V A11 PWRGD B11 WAKE#
A3 12V B3 RSVD A12 GND B12 RSVD 16
A4 GND B4 GND A13 REFCLK+ B13 GND
A5 JTAG2 16 B5 SMCLK A14 REFCLK- B14 HSOP0
A6 JTAG3 16 B6 SMDAT A15 GND B15 HSON0
A7 JTAG4 16 B7 GND A16 HSIP0 B16 GND
A8 JTAG5 16 B8 3.3V A17 HSIN0 B17 PRSNT2# 16
A9 3.3V B9 JTAG1 16 A18 GND B18 GND
16 Not connected
Table 18. P/S2 Mouse and P/S2 Keyboard
Pin SIGNAL
1 Mouse DATA / Keyboard DATA
2 NC
3 GND
4 VCC
5
Mouse Clock / Keyboard Clock
6 NC
Table 19. Parallel Port
Pin SIGNAL Pin SIGNAL
1 STROBE# 14
AUTO
FEED#
2 DATA0 15 ERR#
3 DATA1 16 INIT#
4 DATA2 17 SLIN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SELECT
