KP915GV Product Manual
124

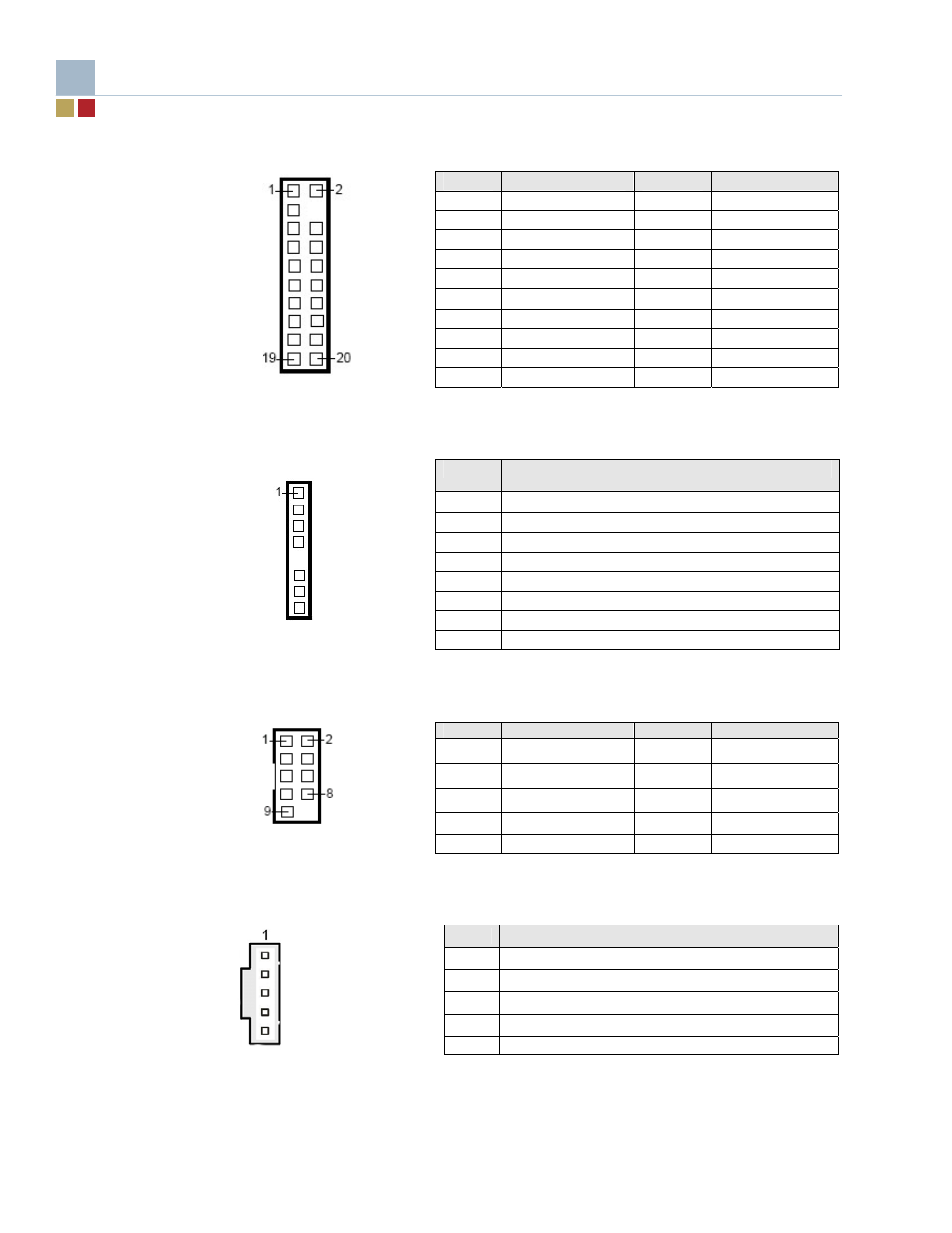

Table 33. TPM Header
Pin
SIGNAL
Pin
SIGNAL
1 LCLK
2 GND
3 LFRAME# 4 KEY
PIN
5 LRESET# 6 NC3
7 LAD3
8 LAD2
9 VDD
10 LAD1
11 LAD0
12 GND
13 NC1
14 NC4
15 NC2
16 SERIRQ
17 GND
18 CLKRUNin
19 LPCPDn
20 NC5
Table 34. Complex Programmable Logic Device (CPLD) JTAG Header
Pin
SIGNAL
1 VCC_STBY
2 CPLD_TDO
3 CPLD_TDI
4 NC
5 KEY
PIN
6 CPLD_TMS
7 GND
8 CPLD_TCK
Table 35. Serial Port 2 Header
Pin
SIGNAL
Pin
SIGNAL
1 DCD
2 DSR
3
RxD
4 RTS
5 TxD
6 CTS
7 DTR
8 RING
9 GND
10 KEY
Table 36. 4 X Internal USB Headers
Pin
SIGNAL
1 +5V
(fused)
2 DATA-
3 DATA+
4 GND
5 GND
