KP915GV Product Manual
120

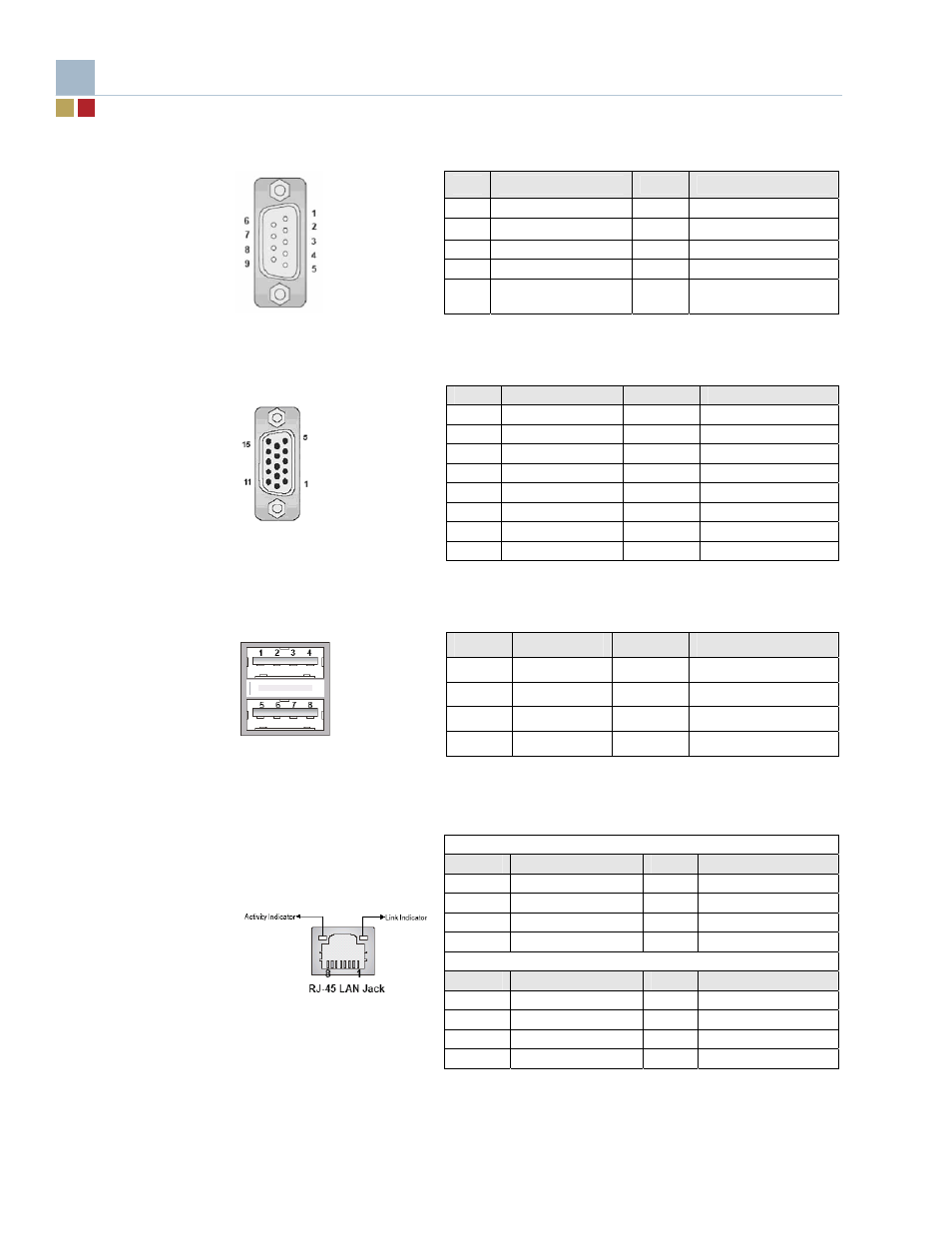

Table 20. Serial Port
Pin
SIGNAL
Pin
SIGNAL
1 DCD
6 DSR
2 SIN
7 RTS
3 SOUT
8 CTS
4 DTR
9 RI
5 GND
Table 21. VGA Port
Pin
SIGNAL
Pin
SIGNAL
1 RED
9
+5V
2 GREEN
10 GND
3 BLUE
11 NC
4 NC
12 SDA
5 GND
13 Horizontal
Sync
6 GND
14 Vertical
Sync
7 GND
15 SCL
8 GND
Table 22. 2 x Dual Stack USB Ports
Pin
SIGNAL
Pin
SIGNAL
1 VCC 5 VCC
2 DATA0-
6 DATA1-
3 DATA0+
7 DATA1+
4 GND 8 GND
Table 23. LAN Jack
For 10/100Mbps
Pin
SIGNAL
Pin
SIGNAL
1 TxD+
5
75R
Terminator
2 TxD-
6
RxD-
3 RxD+
7
75R
Terminator
4
75R Terminator
8
75R Terminator
For 10/100/1000Mbps
Pin
SIGNAL
Pin
SIGNAL
1 A+
5
C-
2 A-
6
B-
3 B+
7
D+
4 C+
8
D-
