Installation
Manual No. 775020 2-23
5. Plug the AcceleRAID 150 controller firmly into the dedicated,
prewired SISL PCI slot as shown in Figure 2-20.

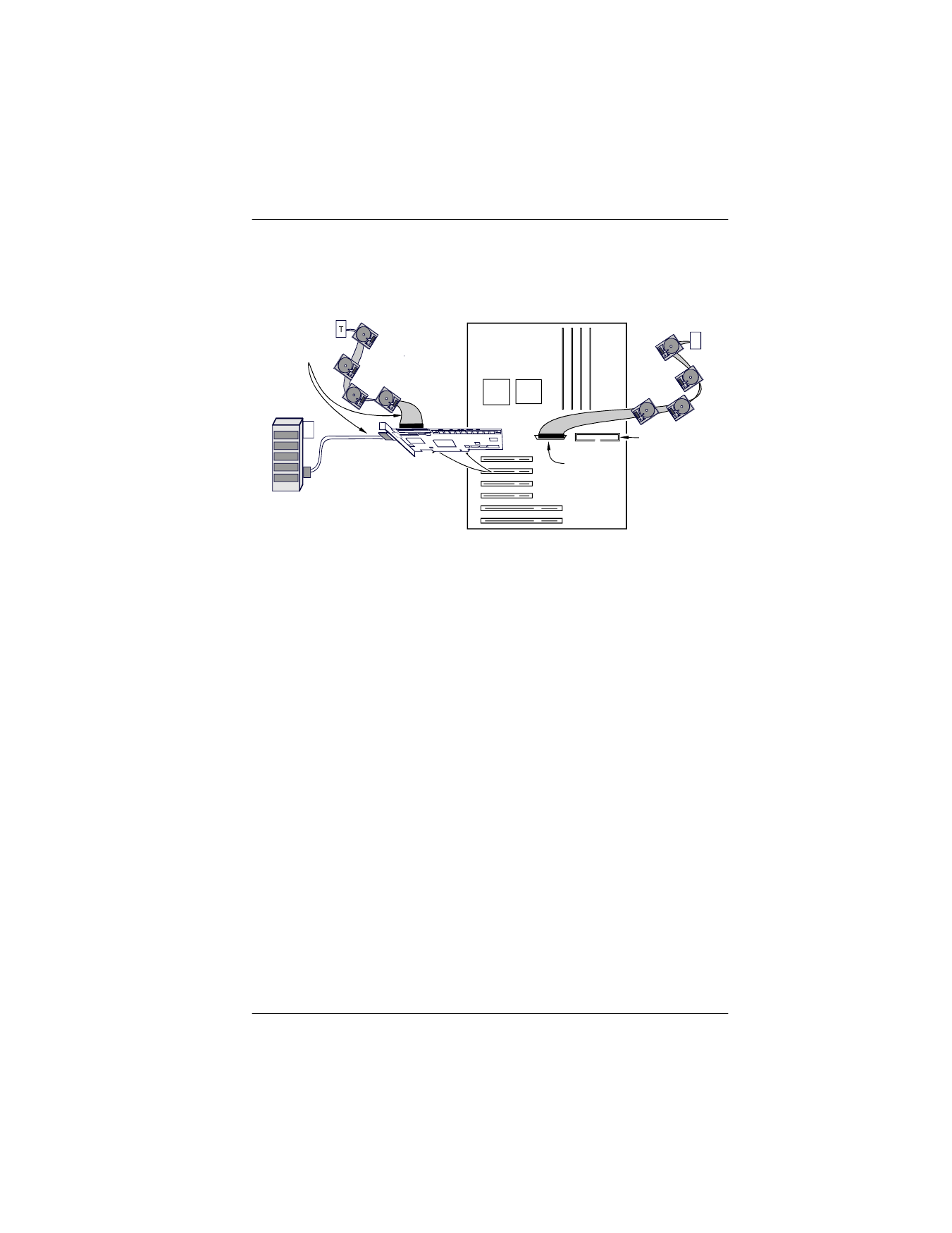

Figure 2-20. AcceleRAID 150 in a Typical SISL Installation
6. Use the retaining screw (see Figure 2-17) to secure the controller by its
mounting bracket. The controller will go into the space created when
you removed the metal plate.
T
Plug Controller into
the Specially Wired
SISL PCI Slot
Wide SCSI
Connector
on System
Board
(Ch 1)
System Board
Narrow
SCSI
Connector
on System
Board (Ch 2)
Channel 0
T
