Avago Technologies AcceleRAID 150 - Manual (Page 35)

Installation
Manual No. 775020 2-21
Follow these installation steps:
1. Choose the dedicated PCI slot that was prewired for SISL functionality,
(see your system documentation to identify the position of the SISL
slot on your system board) as shown in Figure 2-16.

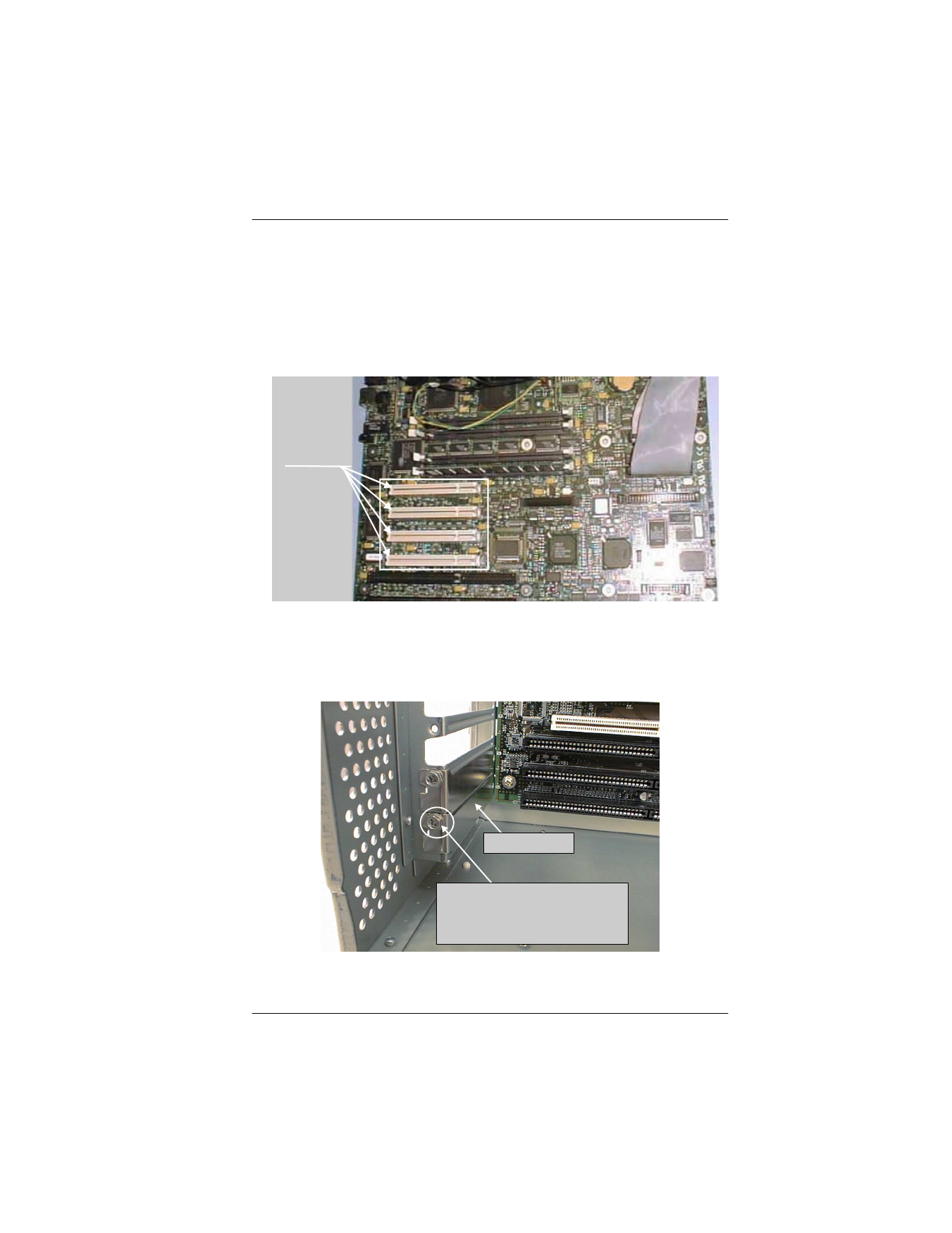

Figure 2-16. Identify SISL PCI Slot
2. Remove the metal cover plate from the slot’s access port (usually at the
back of the cabinet) as shown in Figure 2-17. Save the retaining screw.
Figure 2-17. Remove the Metal Plate
PC I Slo ts
Remove screw to remove
metal plate. Save screw to
tighten the controller board.
Metal Plate
