Configuring DoD/BoD
XSR User’s Guide 10-33

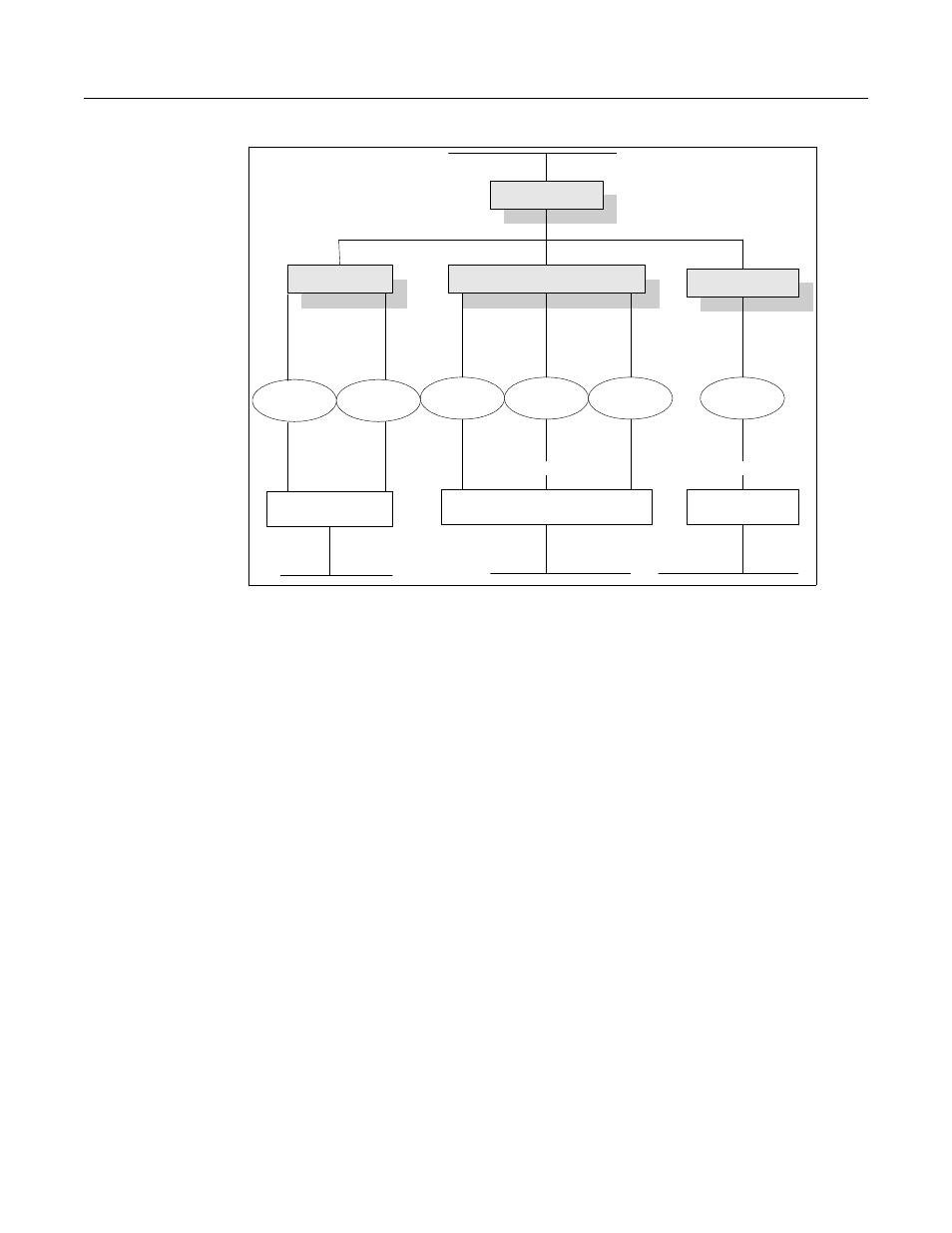

Figure 10-15 MLPPP Point-to-Multipoint Topology
Dial-out Router Example
The following commands add a dialer pool and dialer group, and specify three MLPPP call
destinations - XSR-Andover, XSR-Boston and XSR-Buffalo - on XSR-Toronto’s Dialer interface 1.
Spoofing also is enabled by the
dialer map command.
XSR(config)#interface dialer 1 multi-point
XSR(config-if)#encapsulation ppp
XSR(config-if)#ip address 172.22.85.1
XSR(config-if)#ppp multilink
XSR(config-if)#dialer pool 1
XSR(config-if)#dialer map ip 172.22.85.2 47410
XSR(config-if)#dialer map ip 172.22.85.3 425688
XSR(config-if)#dialer map ip 172.22.85.4 987762
XSR(config-if)#no shutdown
XSR(config-if)#dialer-group 1
The following commands add a pool member and configure the primary-ni switch on T1 interface
2/3:
XSR(config)#controller t1 2/3
XSR(config-controller)#switch-type primary-ni
XSR(config-controller)#dialer pool-member 1
XSR(config-controller)#no shutdown
The following command maps ACL 101 to dialer group 1:
XSR(config)#dialer-list 1 protocol ip list 101
.
XSR-Toronto
Switched
line
Switched
line
MLPPP
XSR-Andover
Switched
line
Switched
line
Switched
line
MLPPP
XSR-Boston
Switched
line
MLPPP
XSR-Buffalo
172.22.85.1
172.22.80.4
172.22.85.2
172.22.85.3 172.22.85.4
172.22.95.2 172.22.96.2 172.22.97.2
