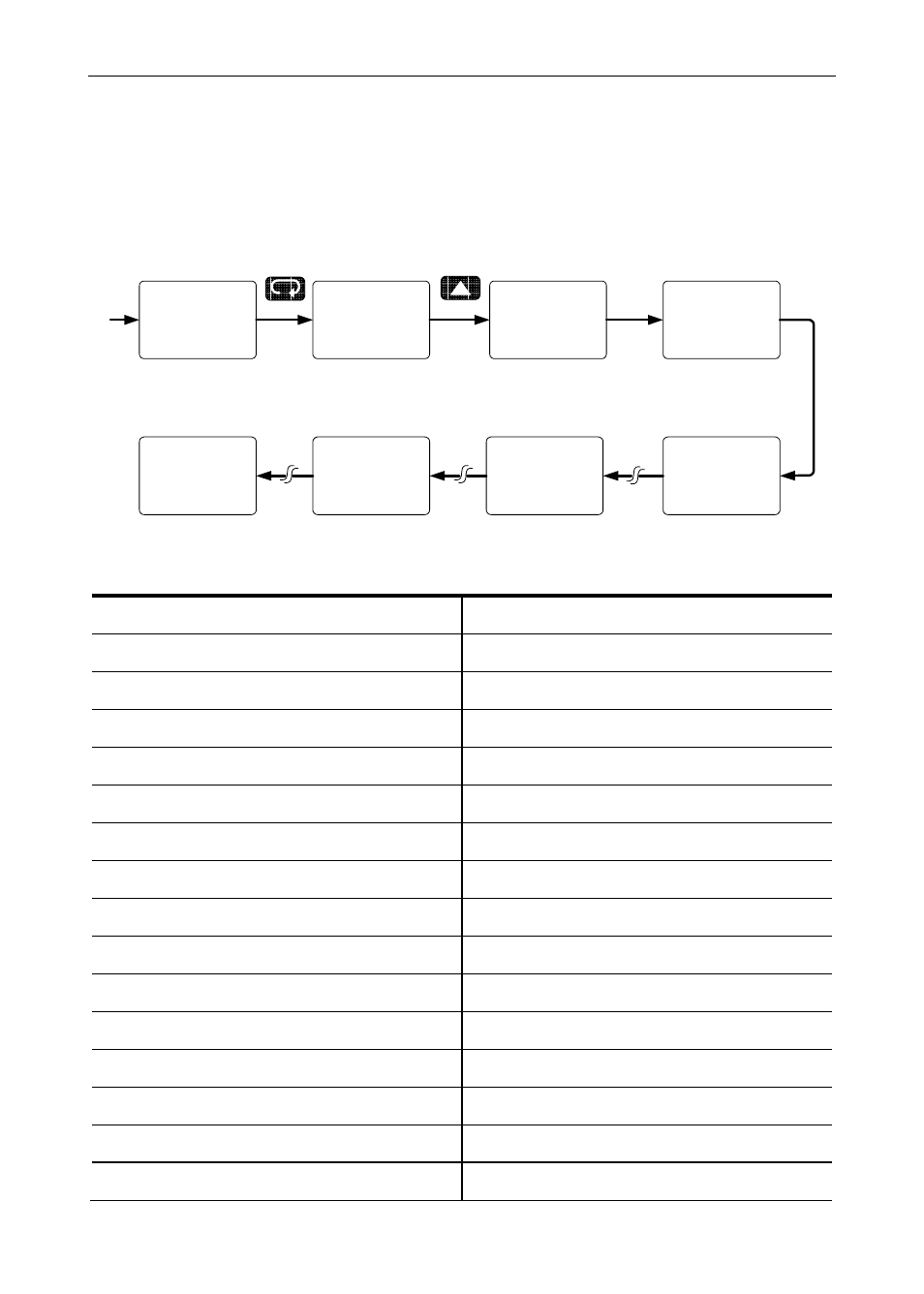

Programmable Function Keys User Menu (user)
The User menu allows the user to assign the front panel function keys
F1, F2, F3 and up to eight digital inputs to access most of the menus or
to activate functions immediately (e.g. Reset max & min). Up to eight
digital outputs can be assigned to a number of actions and functions
executed by the meter (e.g. Alarms, relay acknowledgement, etc.).
user
dI 1
user
dO 8
user
dO 1
user
dI 8
user
F1
user
F3
user
F2
user
Function Keys & Digital I/O Available Settings
Display Description Display Description
Ack Acknowledge relays Little Little display menu
Reset Reset menu Lit Hi Max on little display
Rst Hi
Reset max
Lit Lo
Min on little display
Rst Lo
Reset min
Lit HL
Max/min little display
Rst HL
Reset max & min
disabl
Disable function key
relay
Relay menu
menu
Menu button
Set 1
Set point 1 - 8
Right
Right arrow button
Rly d
Disable all relays
up
Up arrow button
Rly E
Enable all relays
Enter
Enter button
O Hold Relays output hold Alm 1 Alarm 1 – 8
Dsplay Display menu F On 1 Force relay 1 on
Big Big display menu F On 2 Force relay 2 on
Big Hi Max on big display F On 3 Force relay 3 on
Big Lo Min on big display F On 4 Force relay 4 on
Big HL Max/min big display
