14. Loosen the twisting of the wires.
15. clip open the clip on the plug.
16. Loosely brace the cover clips of the plug.
17. Lay out the wires as per the colored marks on the plug.
18. Lead the individual wires into the color matching opening of the clamps.
19. Press the cover clips on the cover of the cable together and hold firmly. Thus the wires no longer
slip out of the openings.
20. Cut the wires with side cutters.

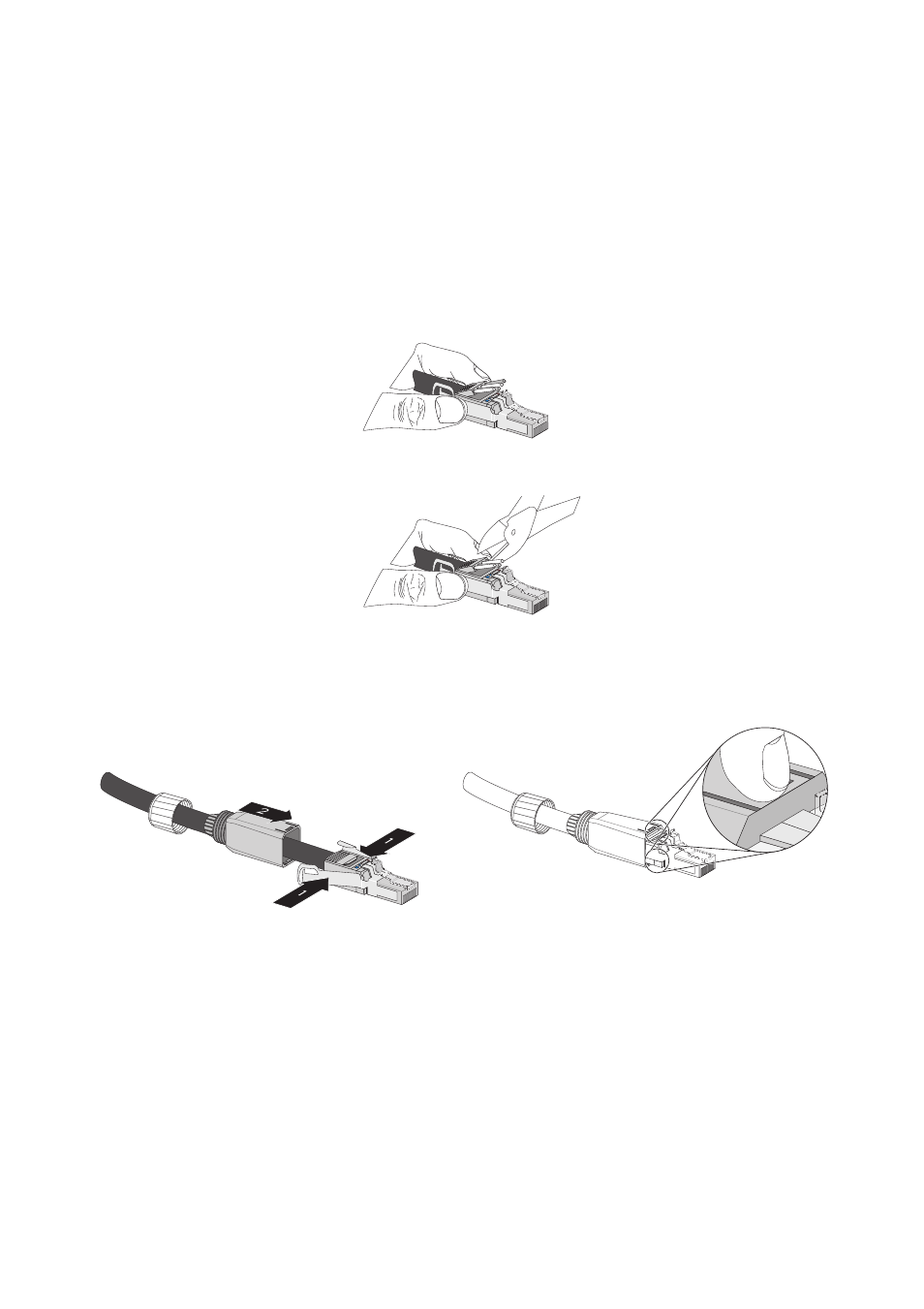

21. Press the clamps together in order that the wires contact. If necessary press the clamps together
with pliers.
22. Push the plug housing onto the plug as in the diagram and press on the clamps.
23. Screw the pressure nut onto the plug housing.
☑ The RJ45 plug is attached to the new patch cable.
24. Plug the RJ45 plug into the RJ45 socket of the connection box.
