3 Scope of Delivery
Check the delivery for completeness and any visible external damage. Contact SMA Solar Technology AG if the delivery
is incomplete or damaged.

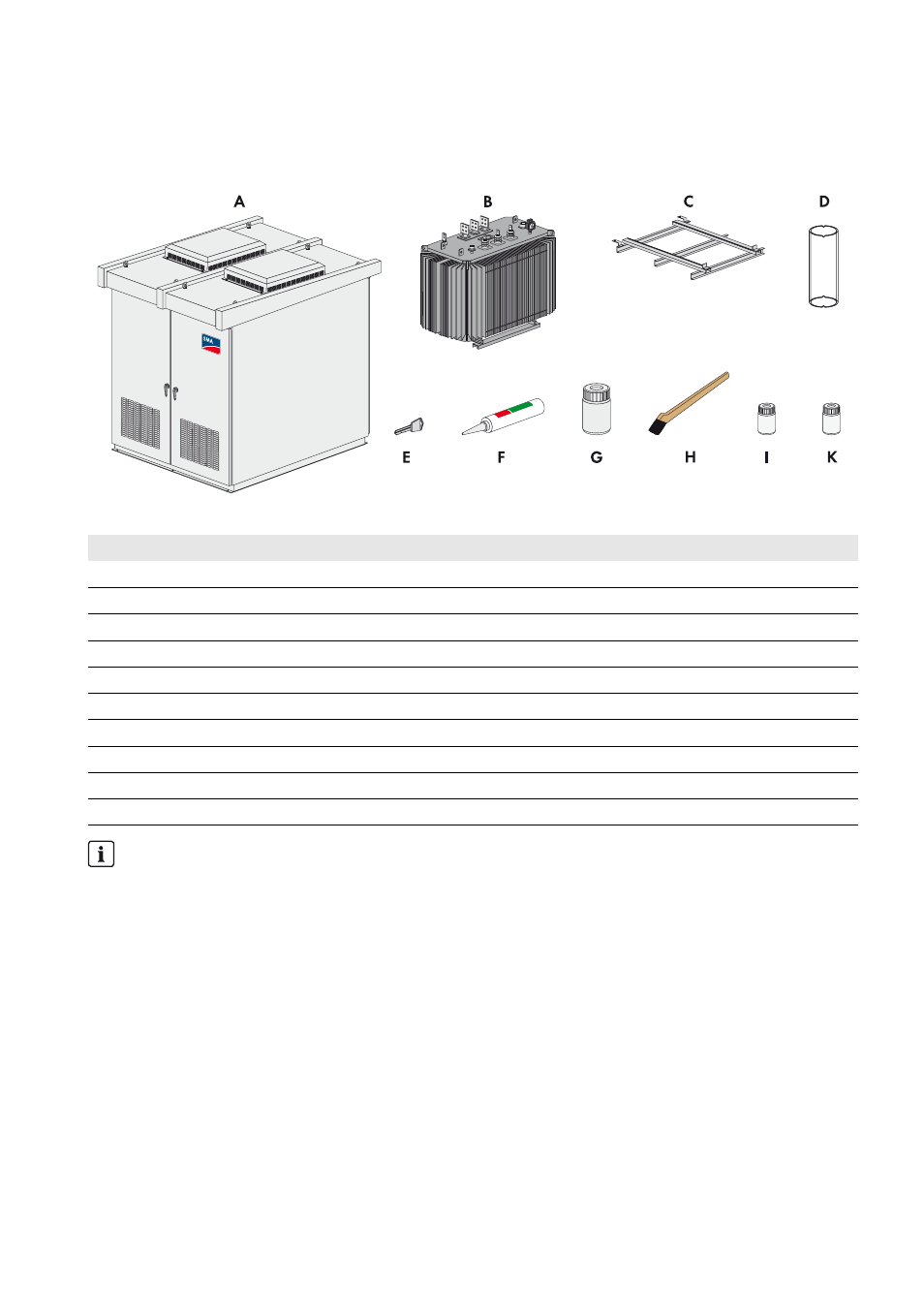

Figure 1: Scope of delivery
Position Quantity Designation
A 1 Transformer Compact Station
B 1 Transformer
C 1 Guiding rail for installing the high-voltage transformer
D 3 Protection against contact for high voltage terminal of the transformer
E 1 Wrench set with two wrenches
F 2 Silicone cartridge
G 1 5Y7/1 color 100 ml
H 1 Brush
I 1 Hardener 25 ml
K 1 Thinner 50 ml
Material for live bolted connections
All high-current contacts are fitted with screws, washers, spring washers and nuts.
These are part of the scope of delivery but are not itemized separately.
When establishing live bolted connections, always use the supplied material.
