7 Electrical Connection SMA Solar Technology AG
24 TCS-JP-IA-en-10 Installation Manual

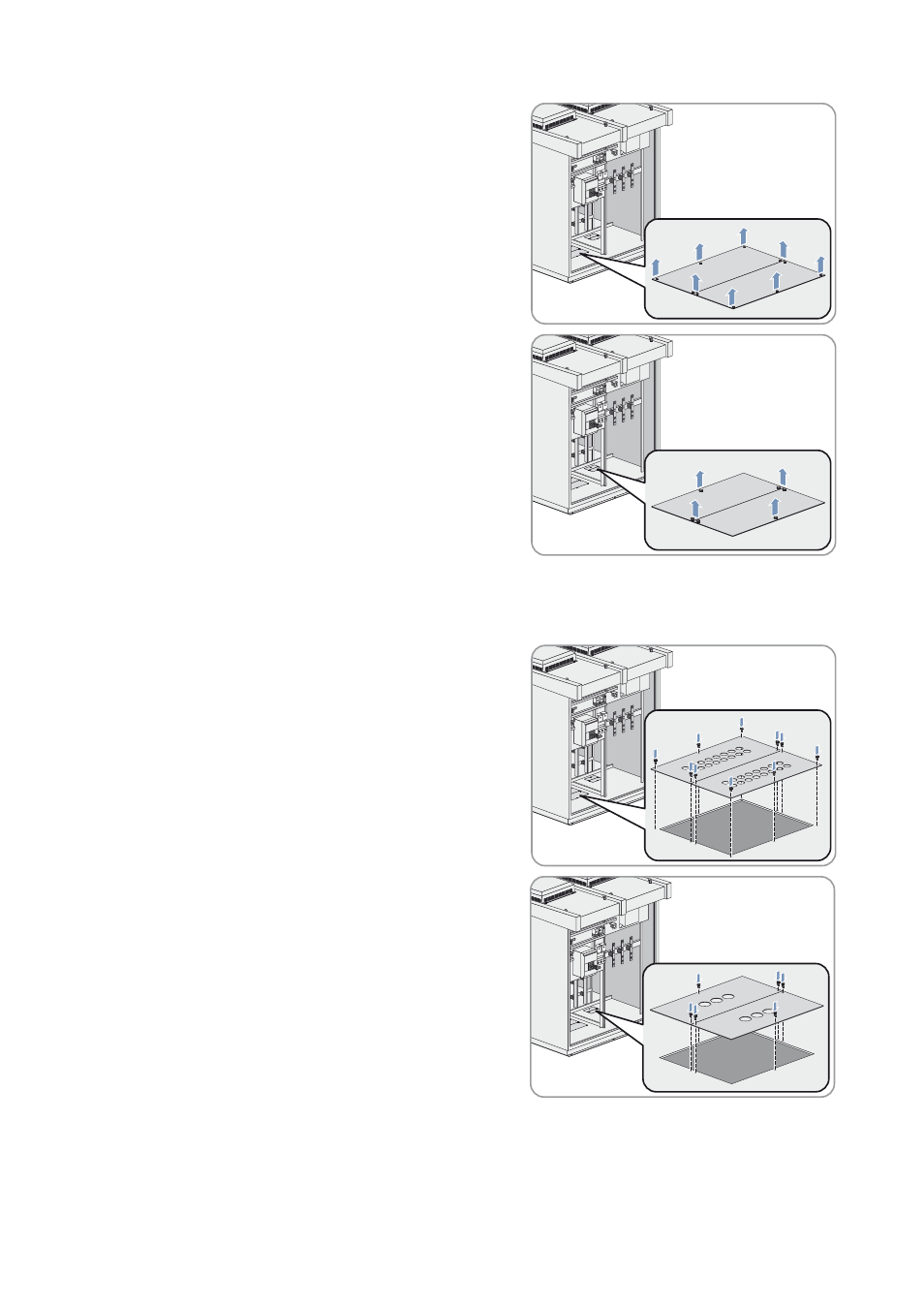

5. Remove the base plate from the opening for the low-voltage
connection.
6. Remove the base plate from the opening for the high-voltage
cables.
7. Mark the holes for the cable entries on the base plates in accordance with the cable arrangement.
8. Punch the holes.
9. Mount the base plate on the opening for the low-voltage
connection.
10. Mount the base plate on the opening for the high-voltage cables.
