4 Product Description SMA Solar Technology AG
12 TCS-JP-IA-en-10 Installation Manual
The Transformer Compact Station has doors at the front and back.
The Transformer Compact Station and the high-voltage transformer are delivered separately. After the Transformer
Compact Station is mounted, the high-voltage transformer must be installed and connected in the
Transformer Compact Station. The high-voltage transformer is to be pushed into the Transformer Compact Station via the
back of the Transformer Compact Station.
4.3 Type Label

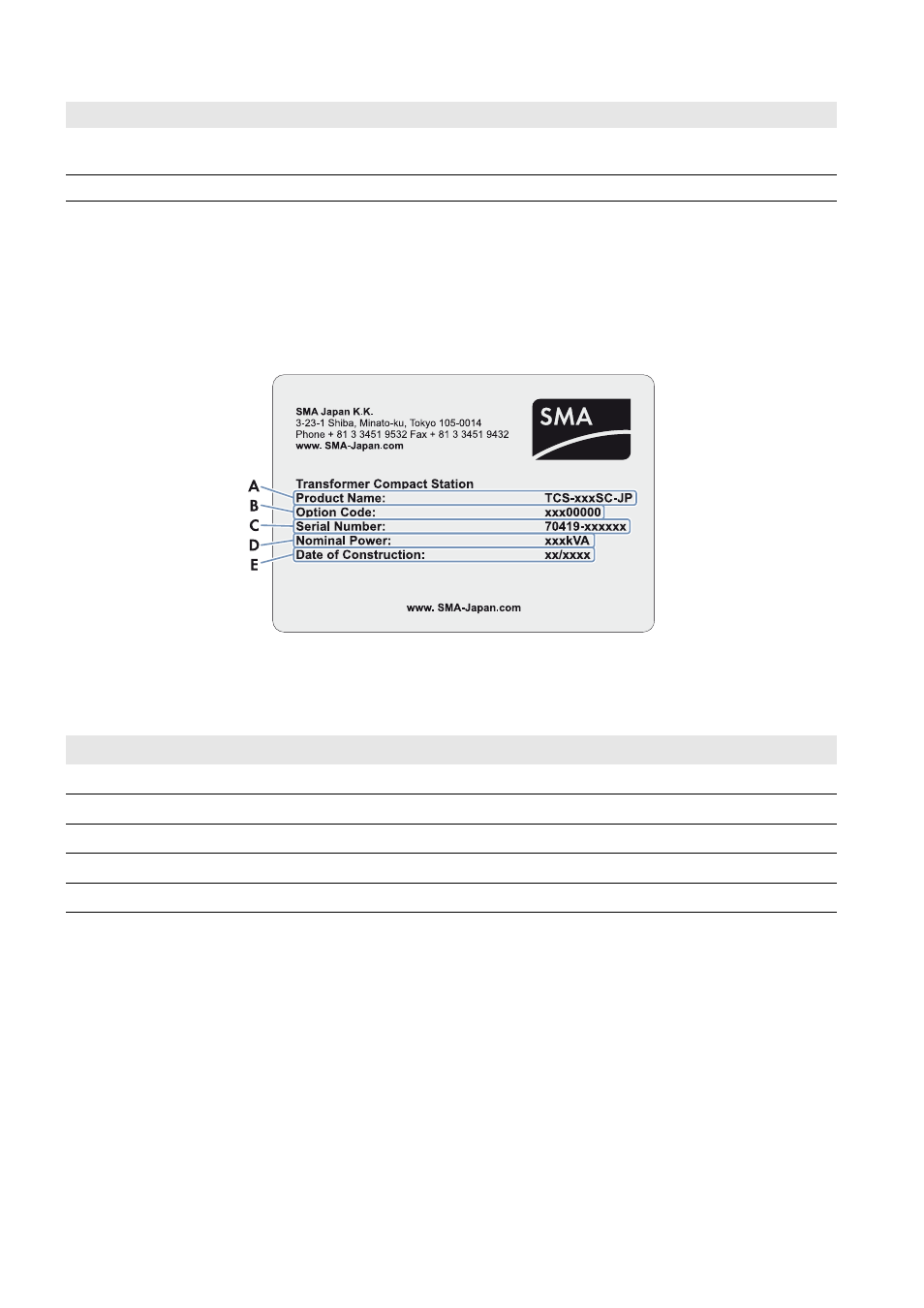

Figure 5: Type label of the Transformer Compact Station
The type label is used to identify the Transformer Compact Station. The type label is located on the inside of the right-hand
door in front of the high-voltage connection area (at the front of the Transformer Compact Station). The following
information is listed on the type label:
B Connection area for high voltage Connection of the high-voltage cables that are routed to the
high-voltage switchgear
C Connection area for low voltage Connection of AC cables from the inverter
Position Designation
A Type designation (Product Name)
B Option code
C Serial number (Serial No.)
D Power (Nominal Power)
E Date of construction
Position Designation Explanation
