SMA Solar Technology AG

7  Electrical Connection

Installation Manual

TCS-JP-IA-en-10

21

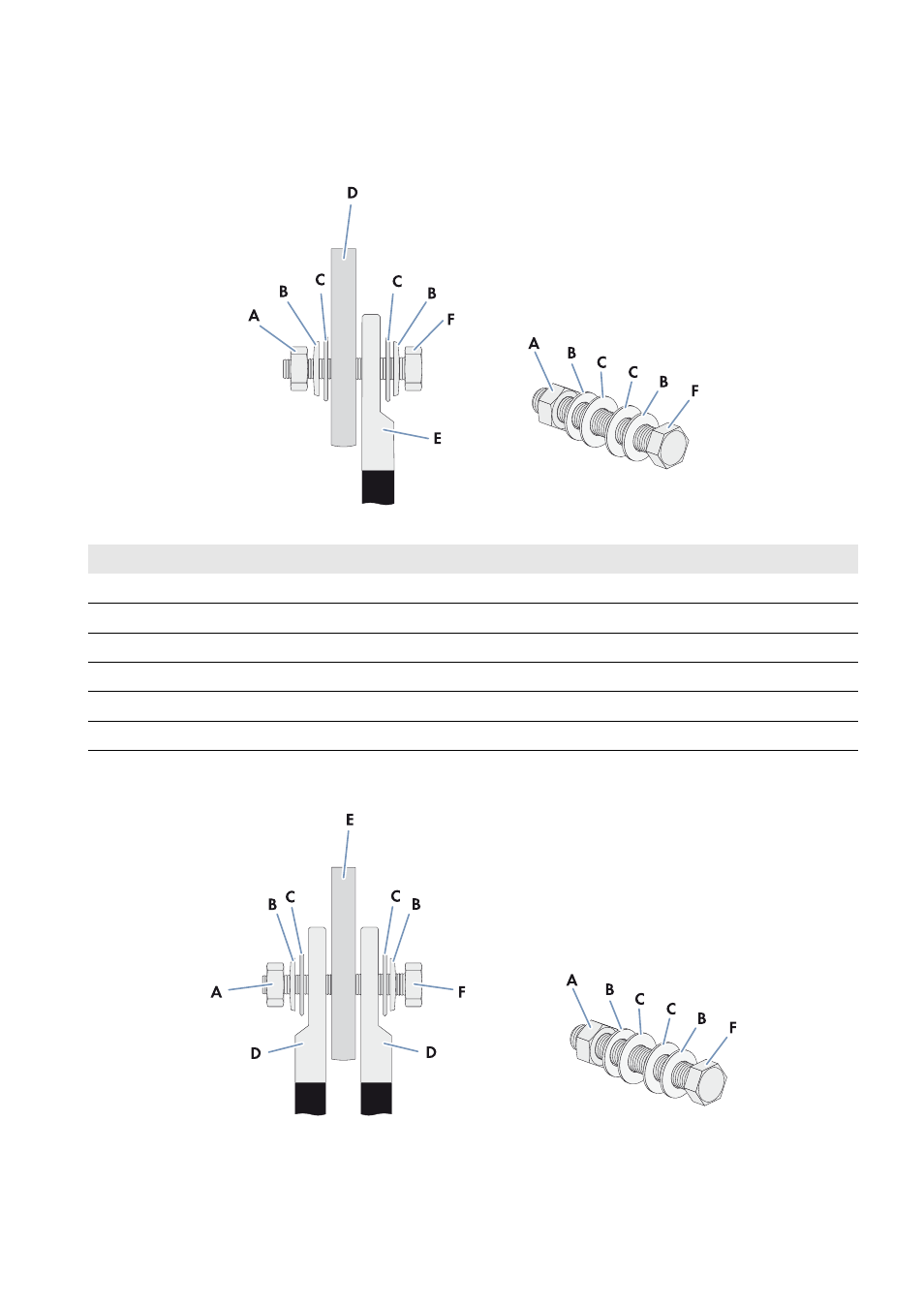

7.3 Design of the Bolted Connections

7.3.1 Connection with One Terminal Lug

Figure 11: Design of the connection with terminal lug for terminals with single assignment

7.3.2 Connection with Two Terminal Lugs

Figure 12: Design of the connection with terminal lugs for terminals with double assignment

Position

Designation

A

Nut

B

Spring washer

C

Fender washer

D

Copper busbar

E

Tin-plated one-hole terminal lug

F

Screw M12
