SMA Solar Technology AG 7 Electrical Connection
Installation Manual TCS-JP-IA-en-10 23
Requirements:
☐ The Transformer Compact Station must be at the final installation site.
☐ The cables must be routed in empty conduits.
Additionally required mounting material (not included in the scope of delivery):
☐ Suitable tool for punching the holes in the base plates (e.g., stamping tool)
Procedure:

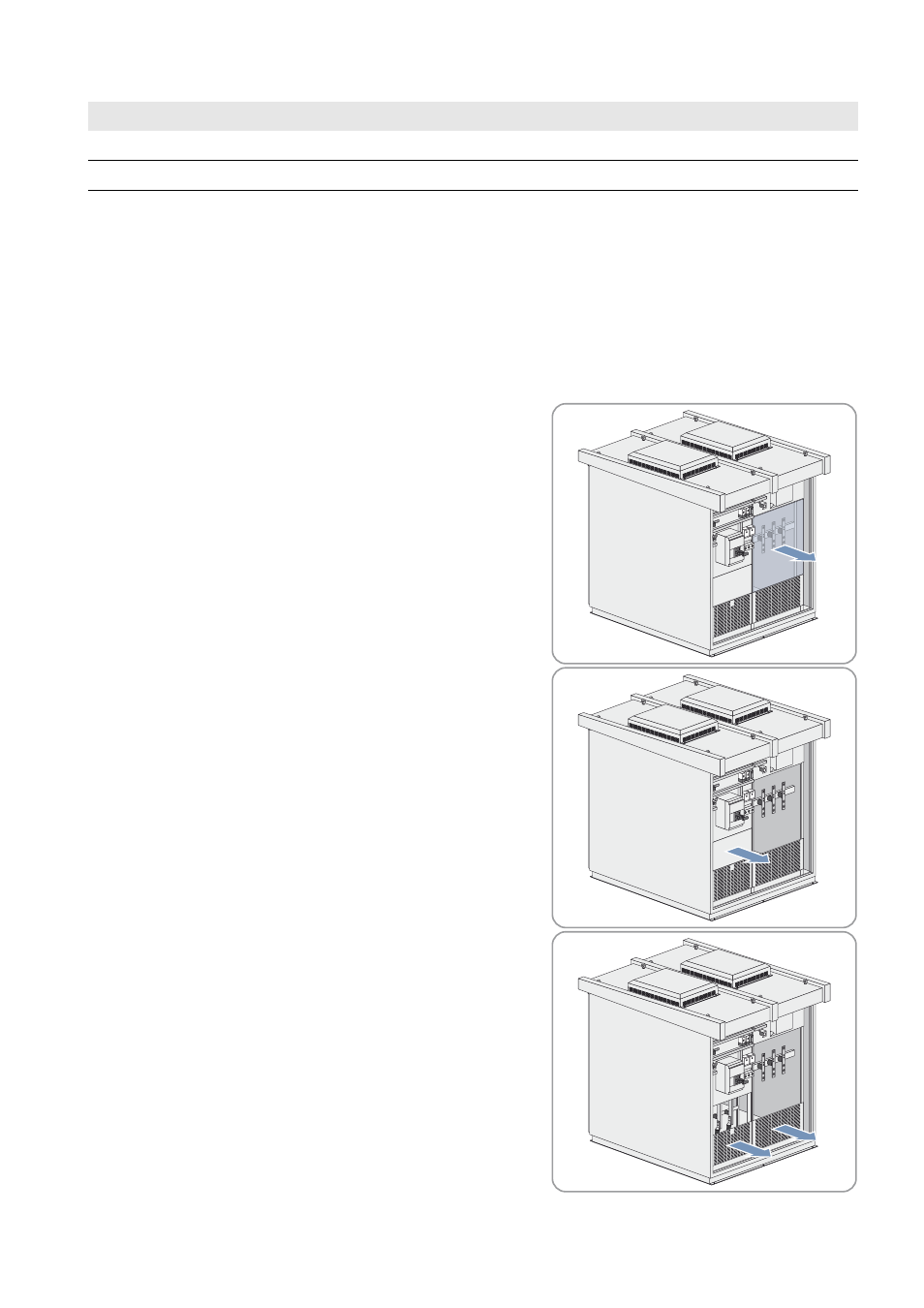

1. Open the front of the Transformer Compact Station.
2. Remove the transparent protective cover from the connection area.
3. Remove the upper protective cover from the connection area.
4. Remove the lower protective cover from the connection area.
Position Designation
AA Base plate opening for the low-voltage cables, grounding and internal power supply
BB Base plate opening for high-voltage cables
