7 Electrical Connection SMA Solar Technology AG
22 TCS-JP-IA-en-10 Installation Manual
7.4 Preparing the Base Plates
The base plates of the Transformer Compact Station must be prepared for cable entry prior to installation.

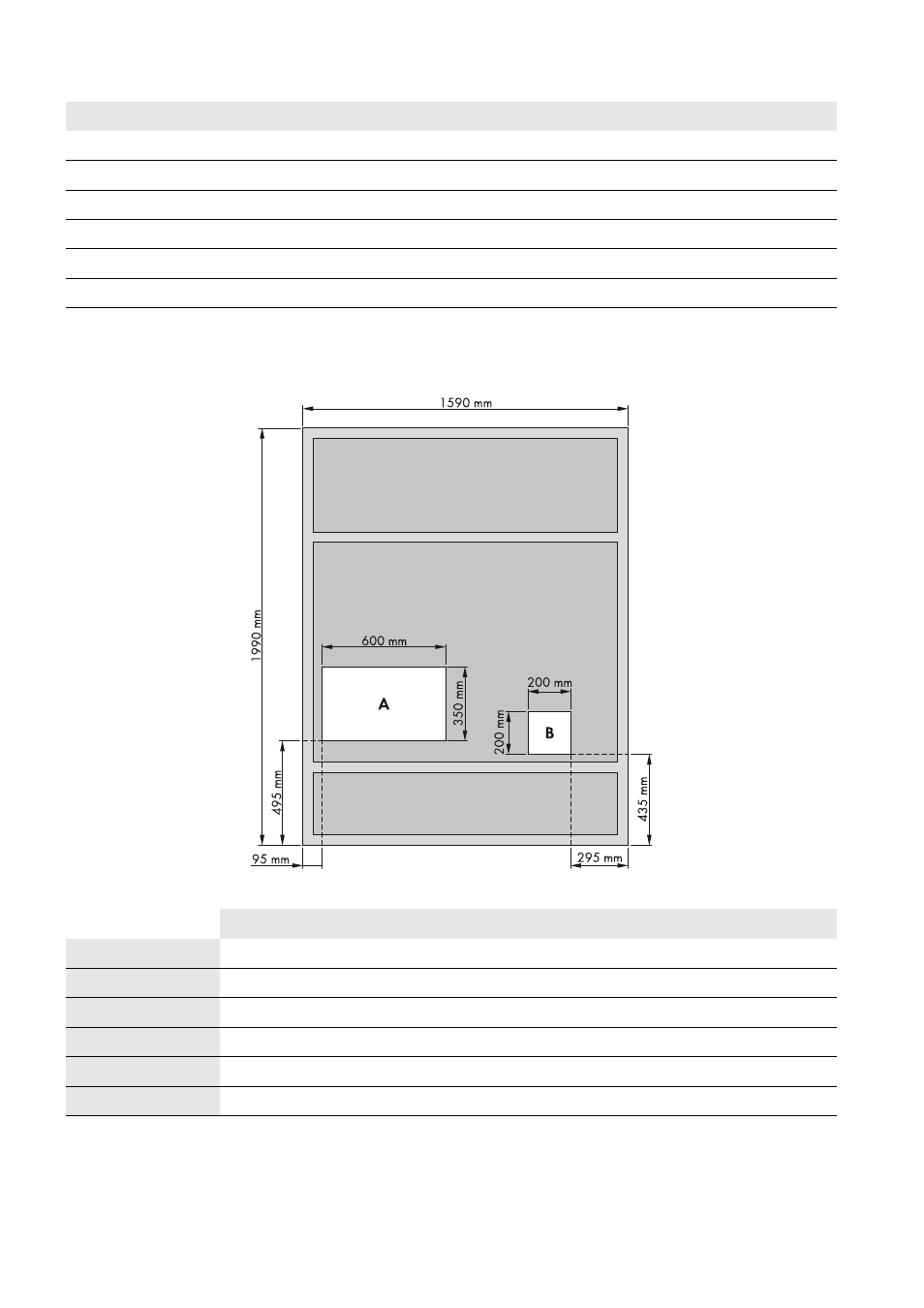

Figure 13: Position of the base plate openings in the Transformer Compact Station
Position Designation
A Nut
B Spring washer
C Fender washer
D Tin-plated one-hole terminal lug
E Copper busbar
F Screw M12
TCS 500SC-JP TCS 630SC-JP TCS 800SC-JP
A 1,700 mm 2,100 mm 2,300 mm
B 2,400 mm 2,700 mm 2,900 mm
C 490 mm 490 mm 490 mm
D 295 mm 370 mm 395 mm
E 95 mm 170 mm 195 mm
F 500 mm 500 mm 500 mm
