5 Mounting Location SMA Solar Technology AG
14 TCS-JP-IA-en-10 Installation Manual
Minimum Clearances for the Transformer Compact Station

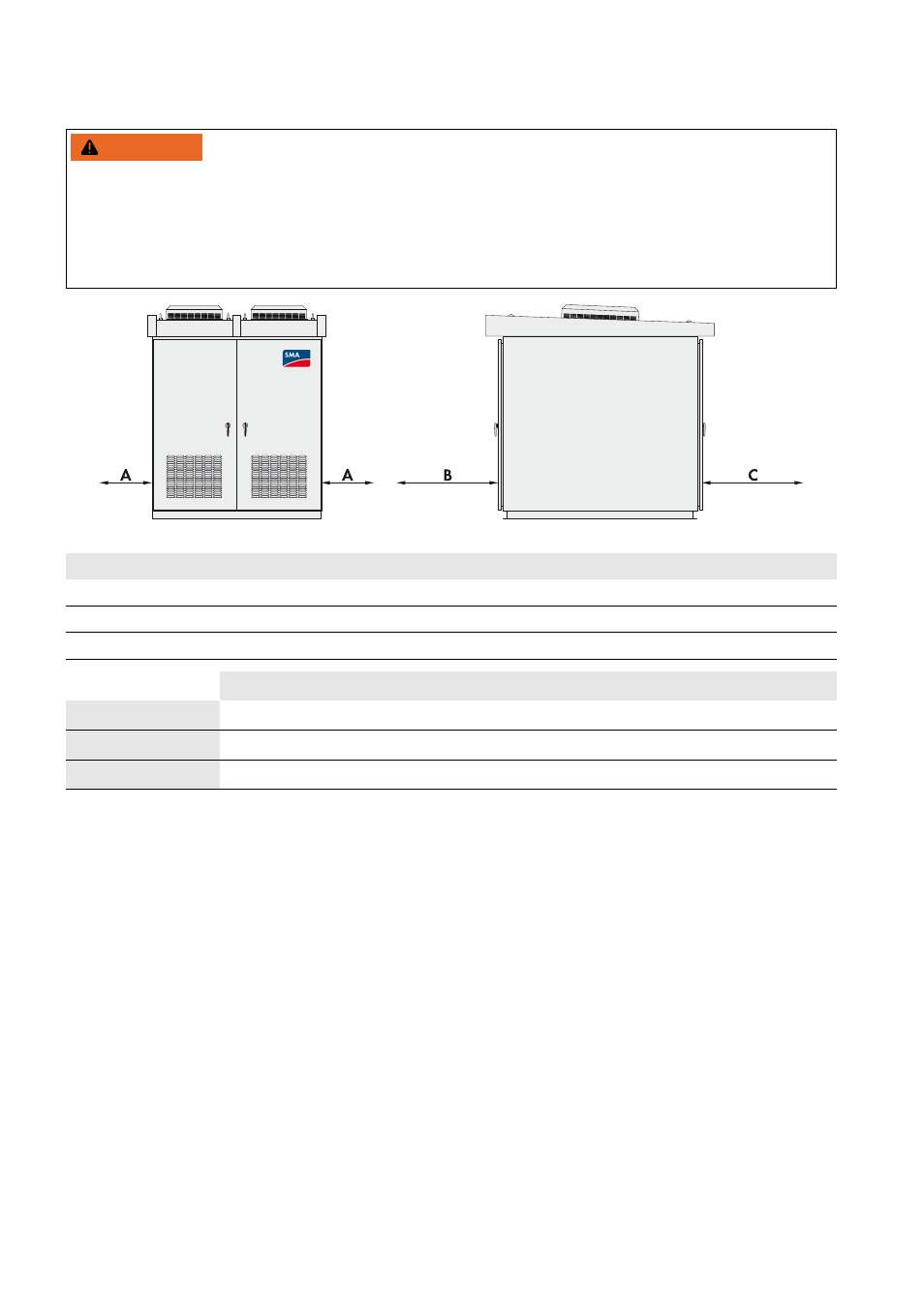

Figure 7: Minimum clearances for the Transformer Compact Station
:$51,1*
Fire hazard due to overheating of cables
Differing cable lengths lead to overheating of the cables. Excessive heat can result in cable fires. Death or serious injury
due to fire can result.
• All line conductors from the inverter to the Transformer Compact Station must be of the same length.
• The cable length between the connection points must not exceed 15 m.
Position Designation
A Lateral minimum clearance
B Minimum clearance at the front of the Transformer Compact Station
C Minimum clearance at the back of the Transformer Compact Station
TCS 500SC-JP TCS 630SC-JP TCS 800SC-JP
A 600 mm 600 mm 600 mm
B 1,400 mm 1,600 mm 1,700 mm
C 1,700 mm 1,900 mm 2,000 mm
