Requirements for the mounting location:
☐ The mounting location must be accessible at all times.
☐ The mounting location must not be higher than 1,000 m above MSL.
☐ All minimum clearances must be observed.
☐ A safety clearance of 5,000 mm from flammable objects must be maintained.
☐ All ambient conditions must be met (see Section 12, page 48).
Dimensions of the Transformer Compact Station

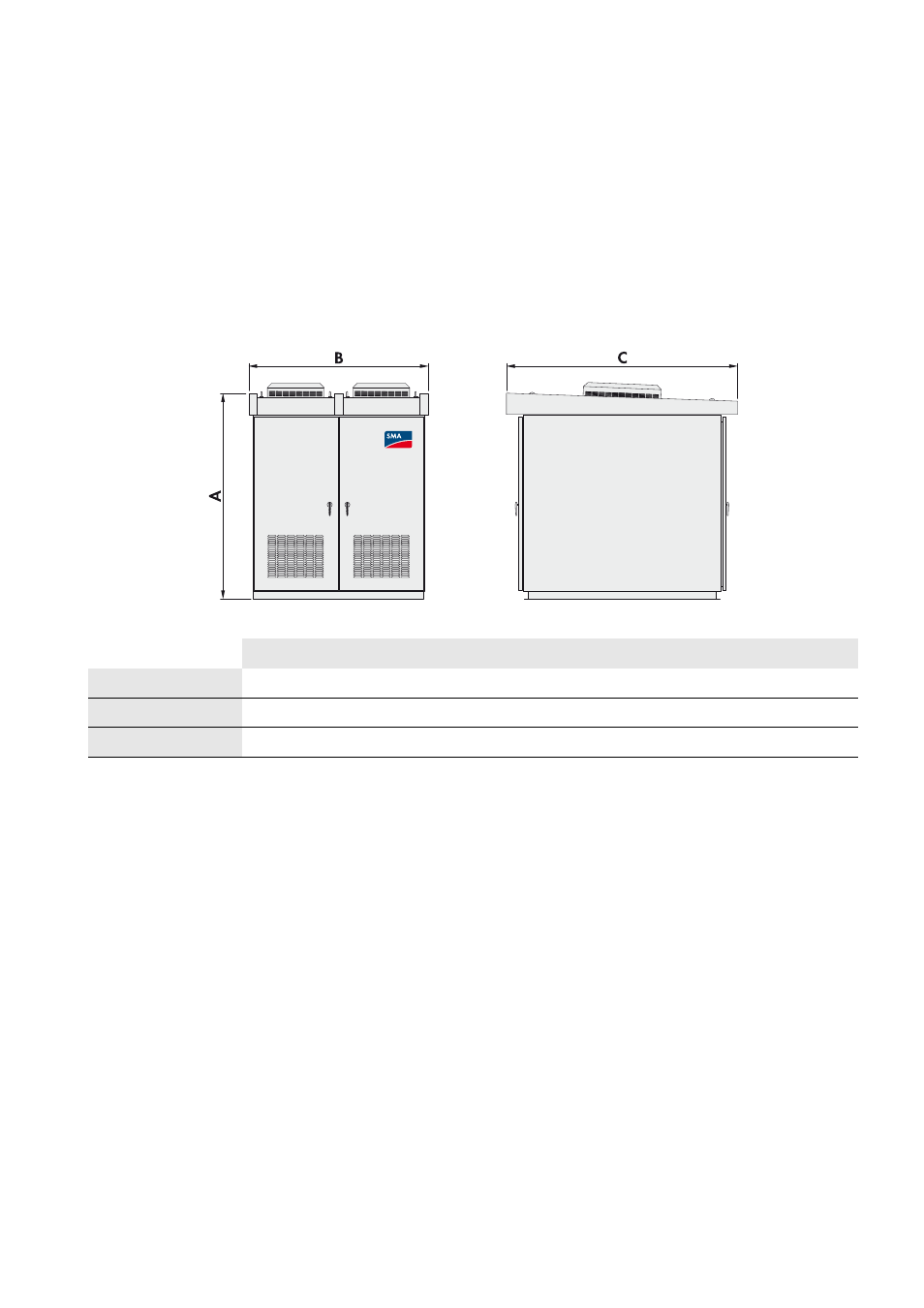

Figure 6: Dimensions of the Transformer Compact Station
TCS 500SC-JP TCS 630SC-JP TCS 800SC-JP
A - height 2,517 mm 2,517 mm 2,517 mm
B - width 1,700 mm 2,100 mm 2,300 mm
C - depth 2,400 mm 2,700 mm 2,900 mm
