6 Transport and Mounting SMA Solar Technology AG
16 TCS-JP-IA-en-10 Installation Manual
Procedure:
1. Attach the hoist to all lifting lugs on the Transformer Compact Station. Ensure that the roof of the
Transformer Compact Station is not damaged in the process.
2. Raise the crane hook slowly until the chains are taut.
3. Ensure that the hoist is attached correctly.
4. Slightly raise the Transformer Compact Station.
5. Transport the Transformer Compact Station as close to the ground as possible.
6. Transport the Transformer Compact Station to the mounting location and set down.
7. Remove the lifting equipment from the anchoring points.
8. Attach the Transformer Compact Station to the mounting surface with screws, nuts and washers.
6.3 Transporting the High-Voltage Transformer

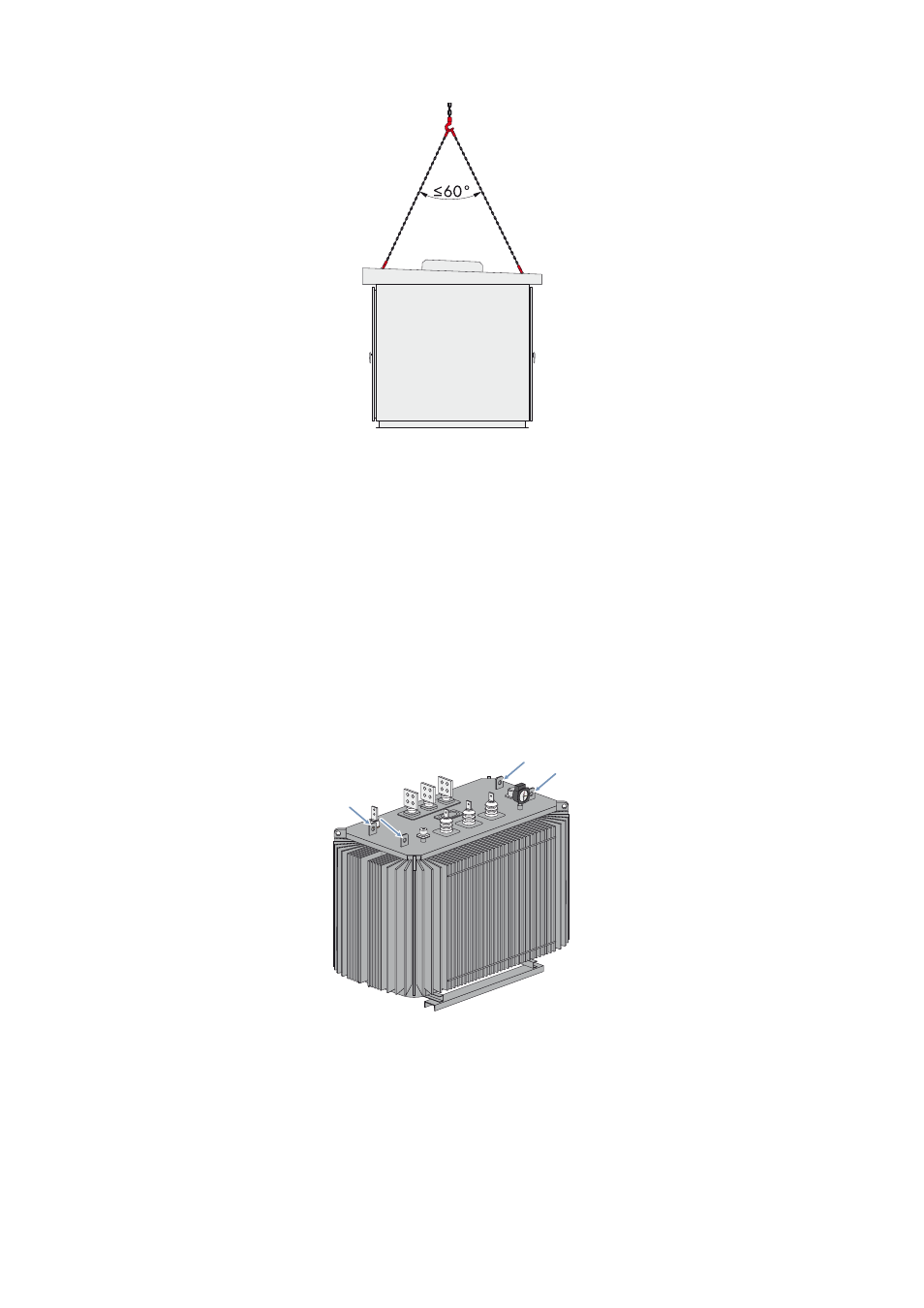

Figure 9: Position of the crane hooks
Requirement:
☐ The crane and hoist must be suitable for the weight of the high-voltage transformer.
☐ The hoist must be properly connected to the crane.
☐ The angle of the chain suspension when attached to the crane hook must not exceed 60°.
