ND 1200R Radial 69
2.3 Sof
tw
a
re
set
u
p Probe configuration
The Radial screen contains data and choice fields for configuring a
probe.
Radial screen
The Radial screen configuration fields include:
 Touch probe type
 Probe size
 Prompts for drilling
 Side operation
 Probe level
 Probe debounce
To configure probe settings in the Radial screen:
 Press MENU>SETUP to display the setup menu and then highlight
the Radial menu item.
 Highlight the Touch Probe choice field and then press a soft key to
select the probe type.
 Highlight the Probe Size data field and then enter the diameter of the
probe.
 Highlight the Drill Prompts choice field and then press a soft key to
select prompting for drill changes.

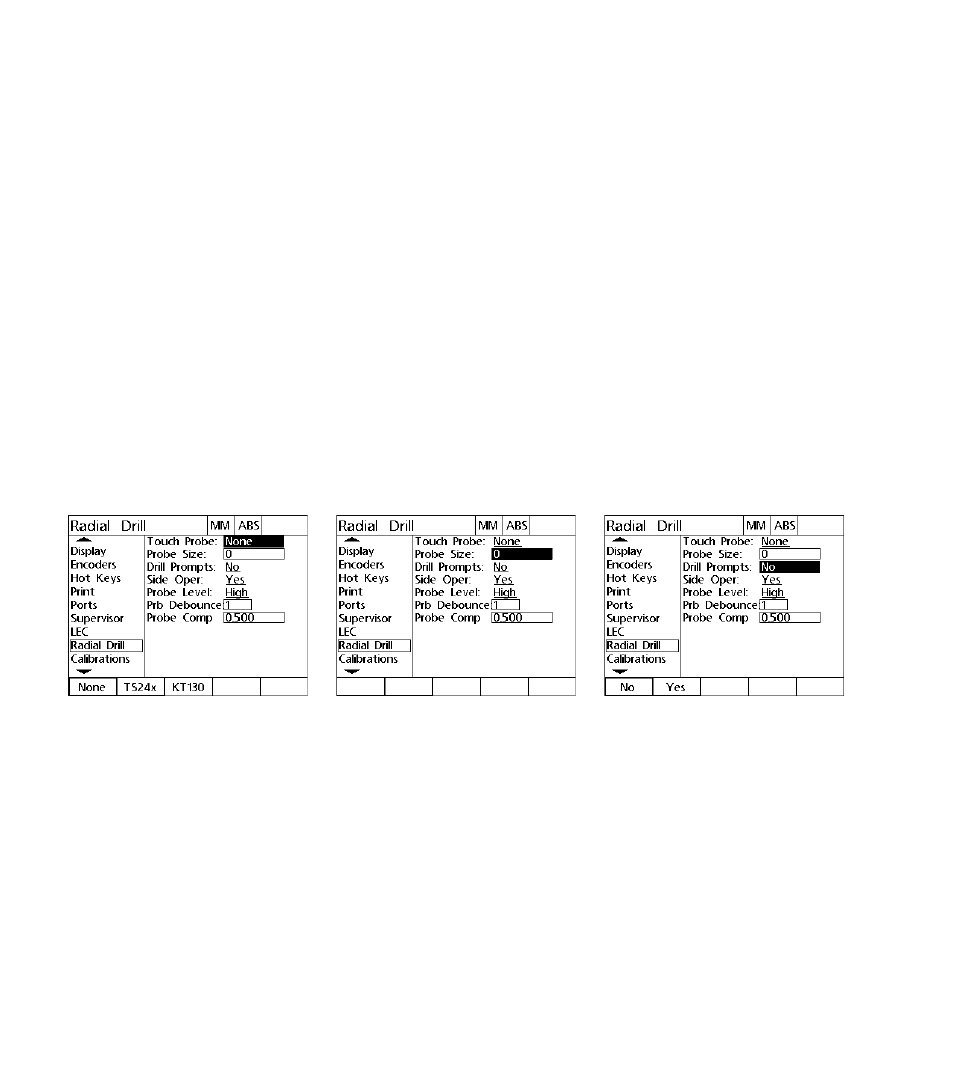

Select a touch probe type Enter a probe size Select display of drill prompts
