ND 1200R Radial 31
1.
4
T
a
rg
e
ts
1.4 Targets
Entering a target
The ND 1200R allows simple entry of target position coordinates. As
target position coordinates are entered a target list is created. The
target list is shown on the left side of the LCD screen.
Entering an absolute target position
To enter an absolute target position:
 Press the X axis key.
 Enter the X coordinate for the target.
 Press the ENTER key.
 Enter the Y coordinate for the target.
 Press the FINISH key.

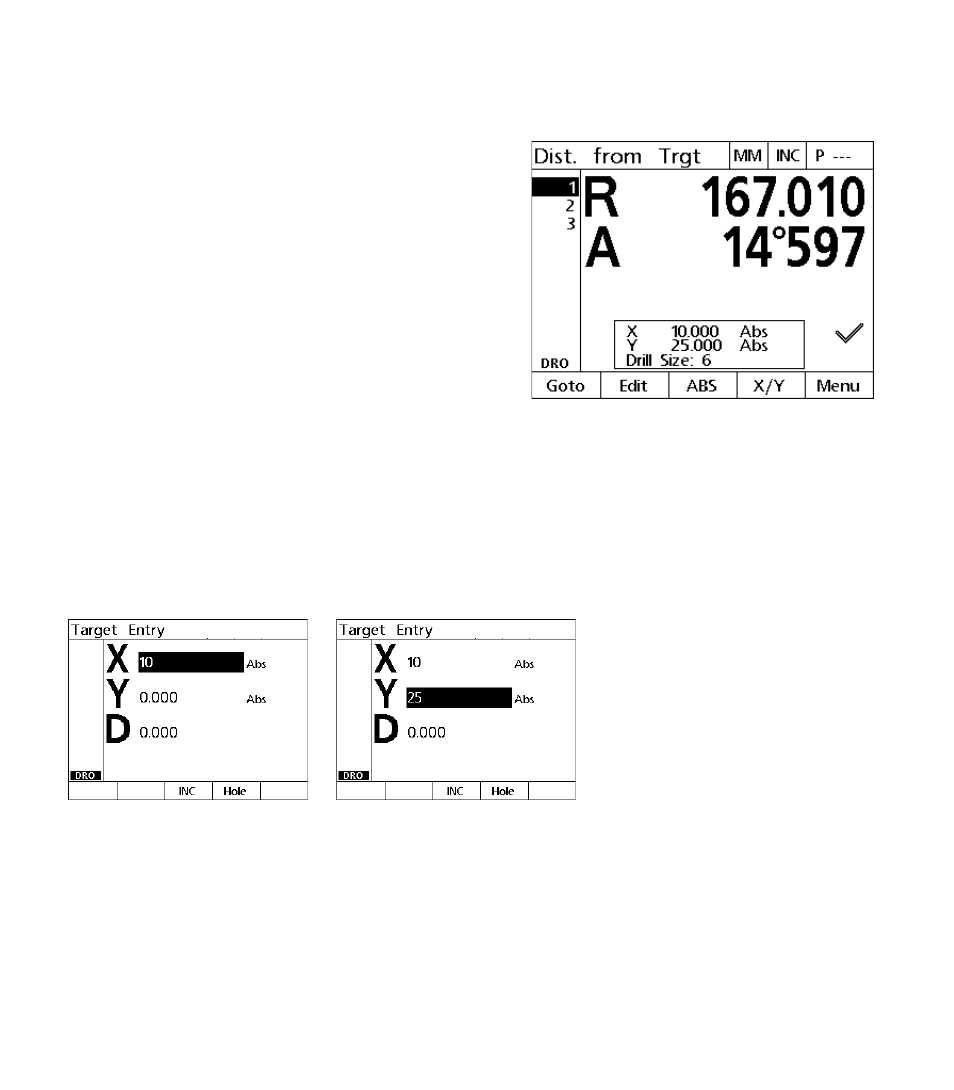

Target list shown on left side of screen
Enter the X coordinate for the target Enter the Y coordinate for the target
