Probing a position

A position can be probed with a hard probe or a touch probe.

To probe a point with a hard probe:

Touch the edge of the workpiece with the probe.

Press the ENTER key.

Enter the probe diameter.

Press the ARROW key that indicates the probe compensation
direction.

To probe a point with a touch probe:

Touch the edge of the workpiece with the probe. The point and the
direction of probing will be entered automatically.

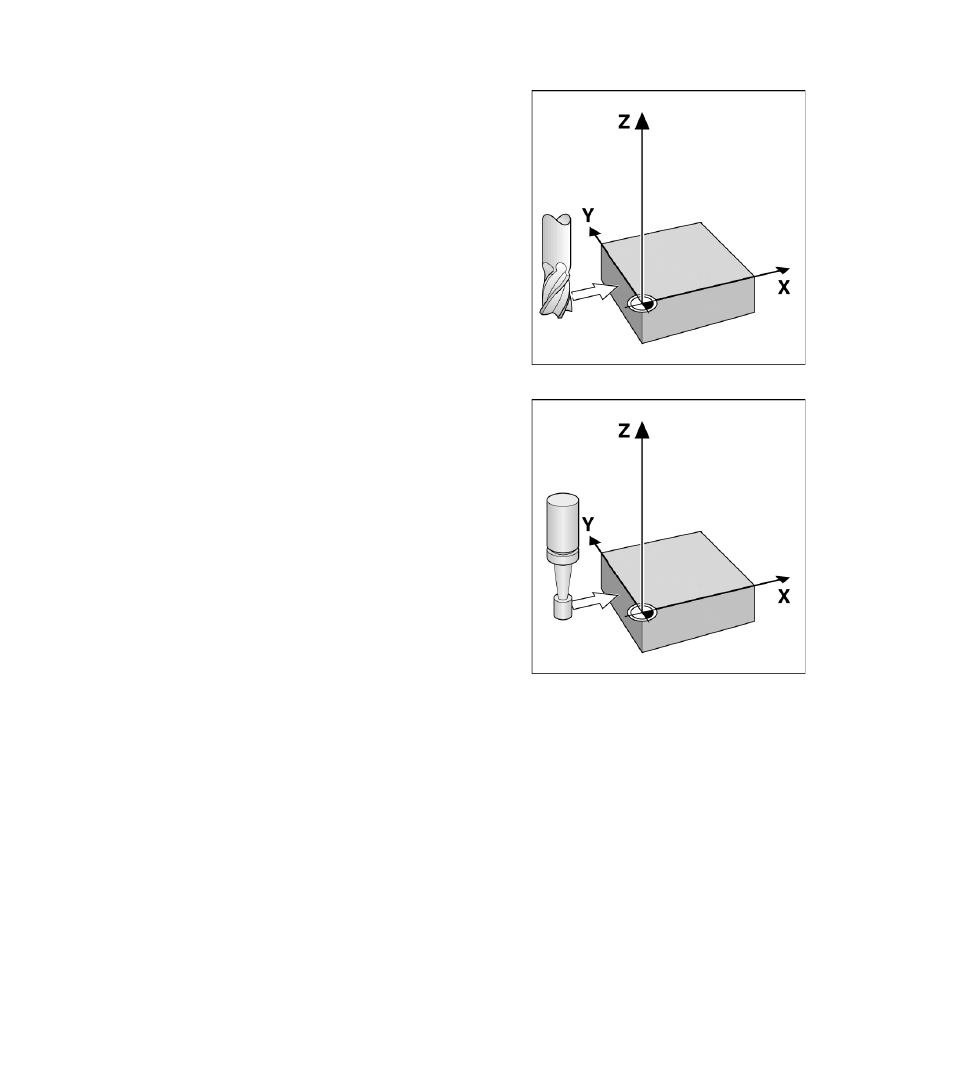

Probing a position with a hard probe

Probing a position with a touch probe
