24

1 Operation

1

.3 Pr

epar

ing t

o

dr

ill

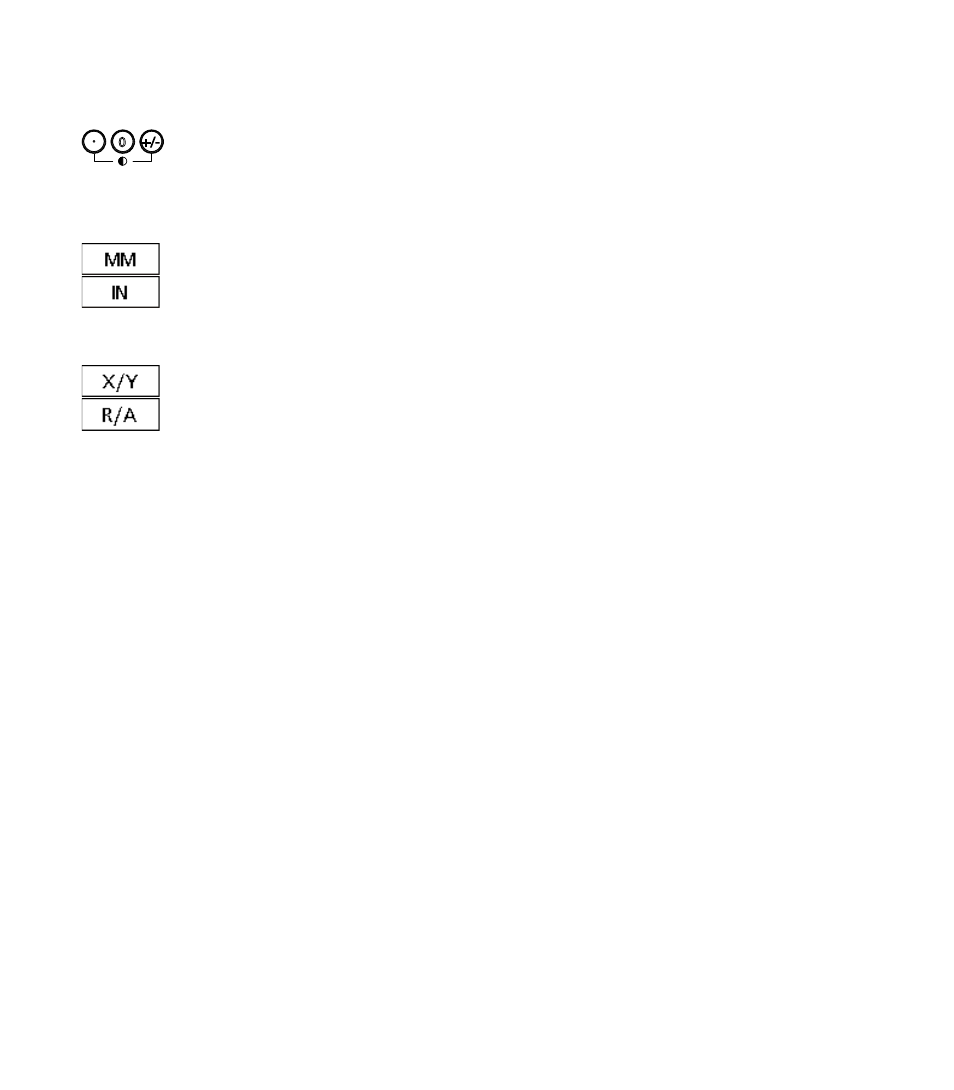

Adjust LCD screen contrast

If necessary, adjust the LCD screen contrast using the decimal point
and +/- keys located on the numeric keypad.

Press the DECIMAL POINT key to increase the
contrast.

Press the +/- key to decrease the contrast.

Select unit of linear measure

Press the MM or IN soft key to toggle between

millimeters and inches.

Select a coordinate system

Press the X/Y or R/A key to toggle between cartesian

and polar coordinate systems.

+/-

0
