ND 1200R Radial

39

1

.5 T

a

rg

et pat

ter

ns

Rectangle pattern

To create a Rectangle pattern:

Press MENU>PATTERN>RECT.

Use the UP and DOWN ARROW keys to navigate between
parameter data fields and enter the parameter values required for
the pattern.

Press the FINISH key. The targets in the pattern are added to the
Target list and the Current Position screen is shown.

Press the FINISH key again to navigate to the first target in the
pattern.

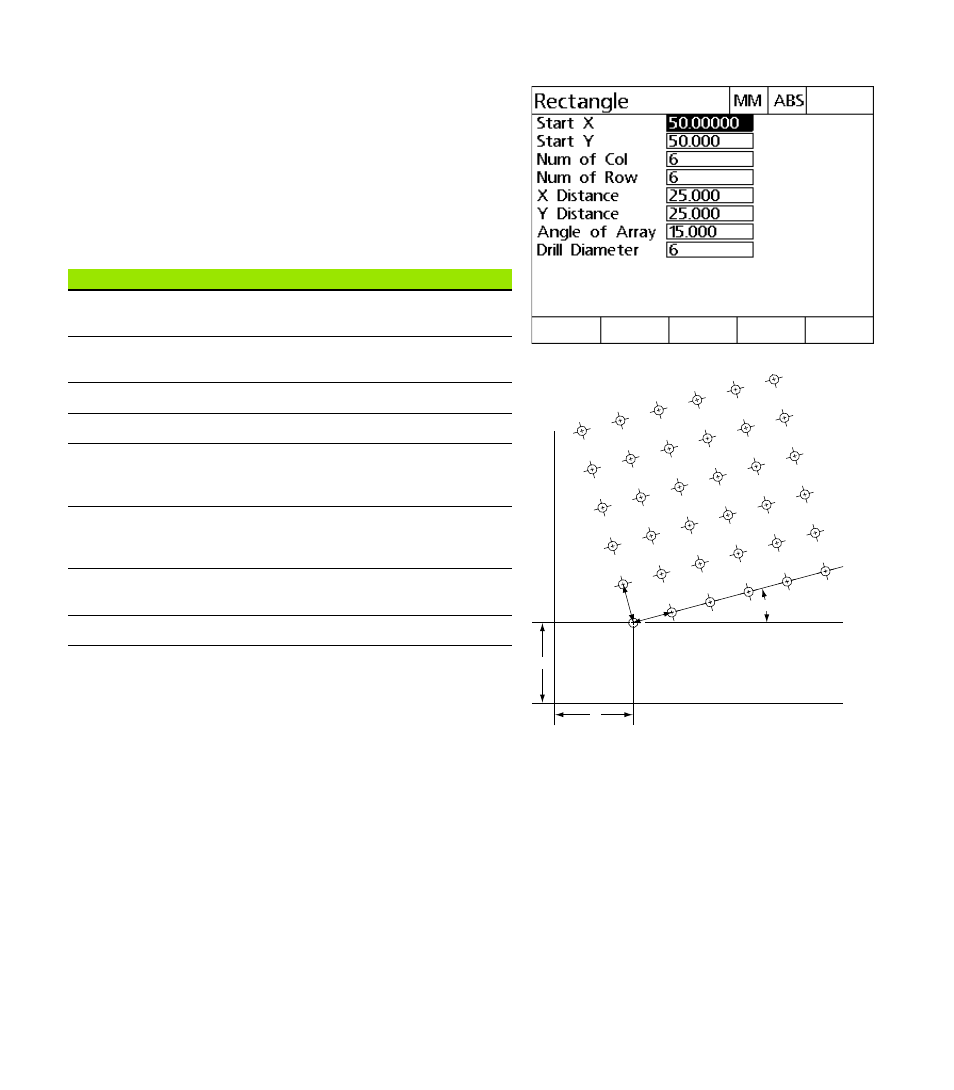

Rectangular pattern screen

Rectangular pattern

Y

X

A

XD

YD

Parameter

Description

Start X

X axis coordinate for the center of the
first hole in the pattern.

Start Y

Y axis coordinate for the center of the
first hole in the pattern.

Num of Col

Number of columns in the pattern.

Num of Row

Number of rows in the pattern.

X Distance

Distance between the center of each
hole along the X axis prior to an angle
being applied to the pattern.

Y Distance

Distance between the center of each
hole along the Y axis prior to an angle
being applied to the pattern.

Angle of Array

Angle applied to the pattern in relation to
the X axis.

Drill Diameter

Diameter of the drill.
