40 1 Operation
1
.5 T
a
rg
et pat
ter
ns

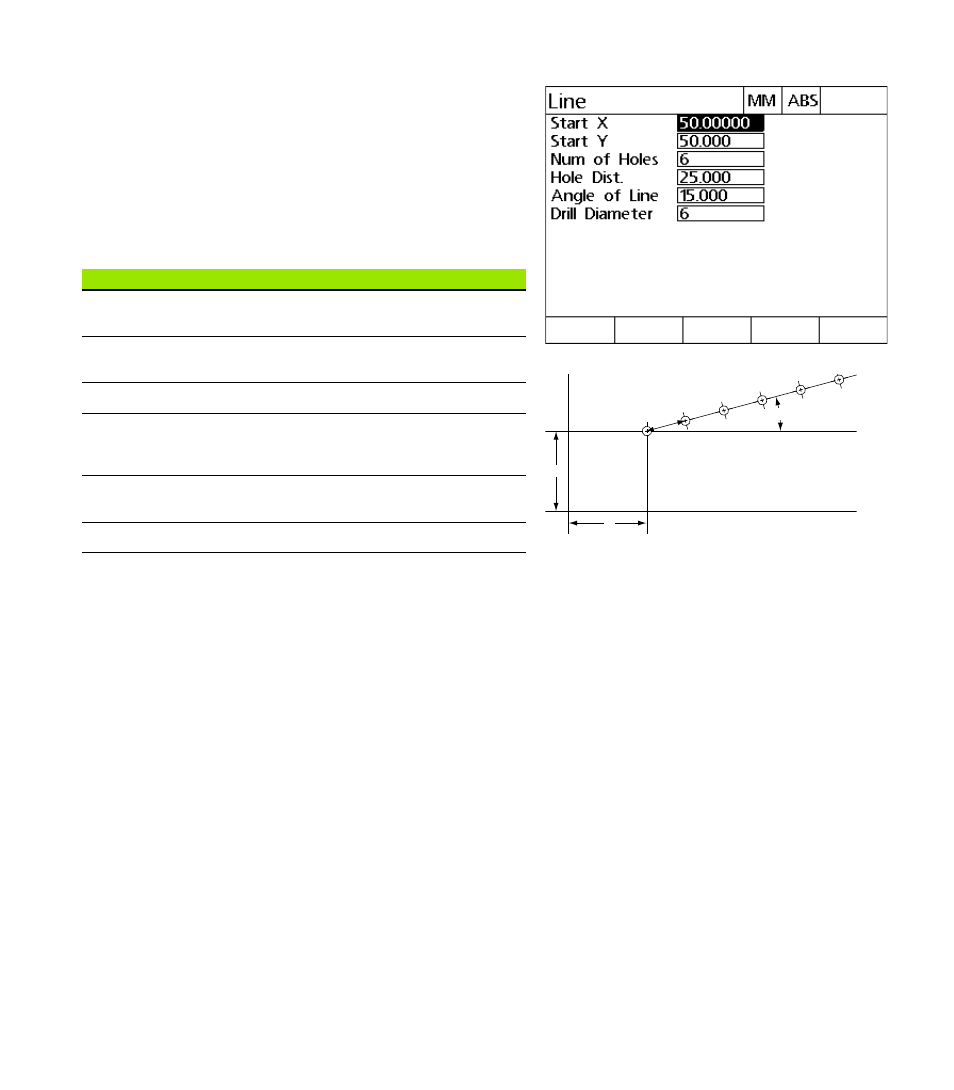

Line pattern
To create a Line drill pattern:
 Press MENU>PATTERN>LINE.
 Use the UP and DOWN ARROW keys to navigate between
parameter data fields and enter the parameter values required for
the pattern.
 Press the FINISH key. The targets in the pattern are added to the
Target list and the Current Position screen is shown.
 Press the FINISH key again to navigate to the first target in the
pattern.
Line pattern screen
Line pattern
Y
X
A
HD
Parameter Description
Start X X axis coordinate for the center of the
first hole in the pattern.
Start Y Y axis coordinate for the center of the
first hole in the pattern.
Num of Holes Number of holes in the pattern.
Hole Dist. Distance between the center of each
hole along the X axis prior to an angle
being applied to the pattern.
Angle of Line Angle applied to the pattern in relation
to the X axis.
Drill Diameter Diameter of the drill.
