1 Operation

1.

4

T

a

rg

e

ts

Enter the Y coordinate for the new target relative to a previously
entered target.

Press the ABS/INC soft key to toggle to incremental mode.

Enter the number of the previously entered target.

Press the FINISH key.

Optional: Prior to pressing the FINISH key a drill diameter may be
entered. The diameter is for user reference only and does not effect
target position calculation.

Press the ENTER key.

Enter the drill diameter.

Press the FINISH key.

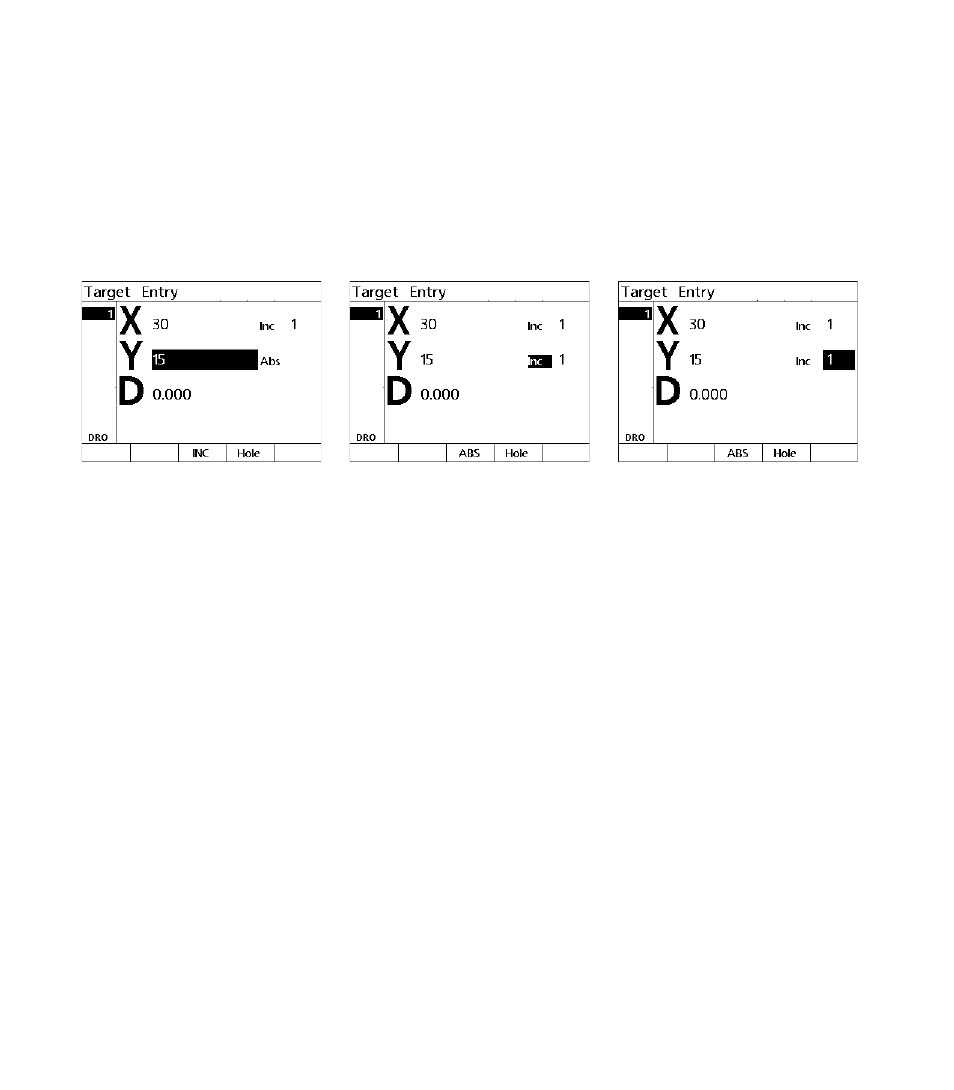

Enter the Y coordinate for the new target
relative to a previously entered target

Press the ABS/INC soft key to toggle to
incremental mode

Enter the number of the previously
entered target
