3. Installation
Installing Active Cards
Typical Card Combinations

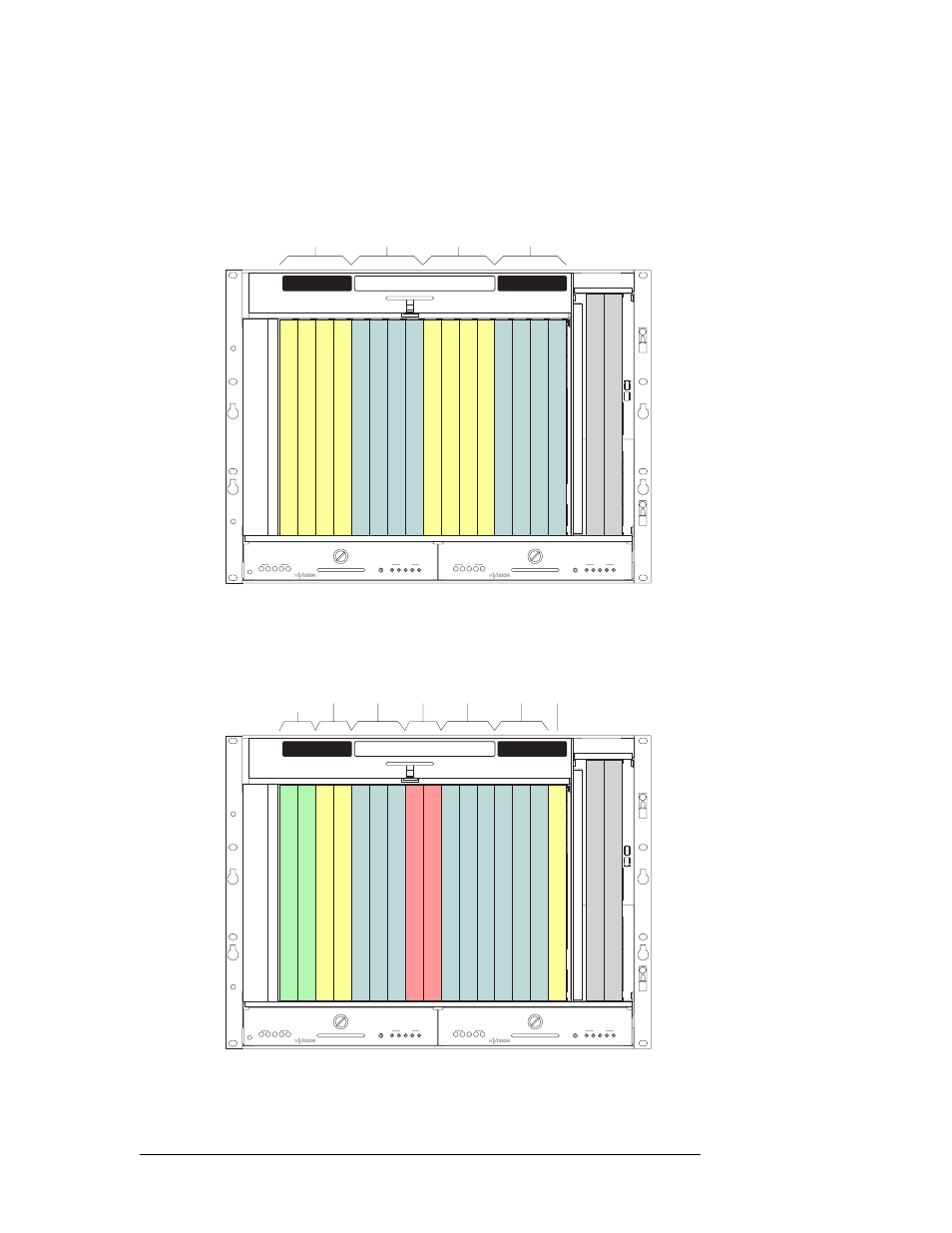

The following are two examples of typical input card and output card combinations. Figure 3-5
shows a 64 inputs x 64 outputs analog video and 64 inputs x 64 outputs audio installation:
Figure 3-5. Simple Layout
Figure 3-6 shows 48 SD inputs with 32 SD and 32 analog video outputs, 48 AES synchronous
inputs with 48 AES synch and 16 analog audio outputs, and a 32-port machine control card set:
Figure 3-6. Complex Layout
