2. Introduction
Module Slots and Rear Connectors
System Connections
The NV5128 features connections for managing system functions. System connections are located
on the left side of the frame when facing the rear of the router.
Router Control System Connections
A router control system is used to manage routing configurations in the router. The router control
system sends instructions to the control card, which in turn sends commands directing signal
switching within in the router. (See
Control Cards on page 21.) A router control system is a sepa-
rate external unit, which is connected to the router. The NV5128 provides three types of a router

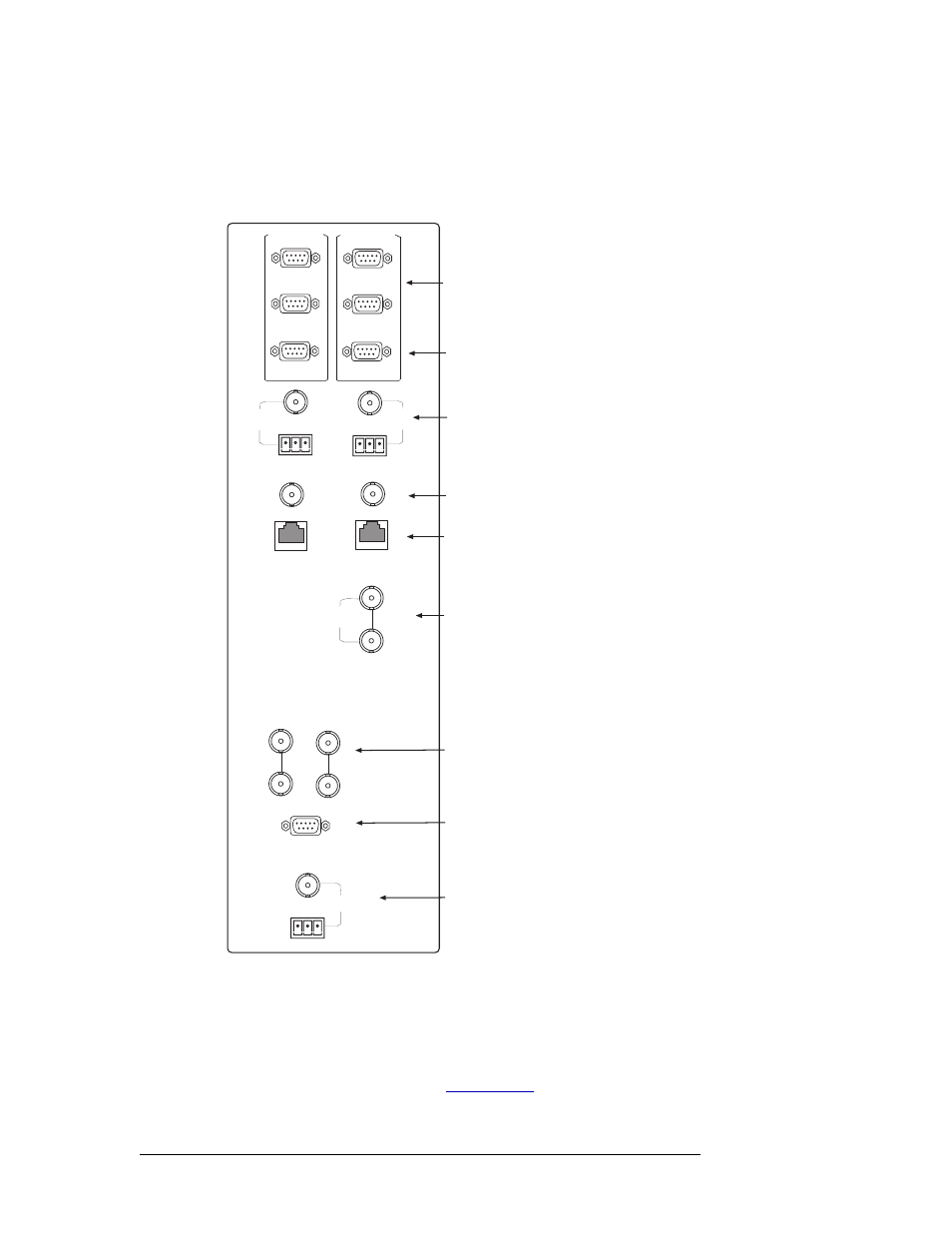

Figure 2-7. System Connections (Rear View)
These connections are used to connect to:
• A router control system using either
serial, Ethernet or GSC Node Bus con-
nectors.
• A stable source of audio and/or video
signal for reference purposes.
• The UniConfig application, installed
on a configuration PC.
• A system alarm that sends notification
of a system failure, such as a fan mal-
function.
• A power supply alarm that sends notifi-
cation of a power supply failure.
Figure 2-7 shows the system connections
located on the rear of the router. Each sys-
tem connection and function is described
in the proceeding sections.
